Pt1000TR160/0 Temperature Probe -30 to +80°C

Pt1000TR160/0 Temperature Probe -30 to +80°C

SKU: SN201 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

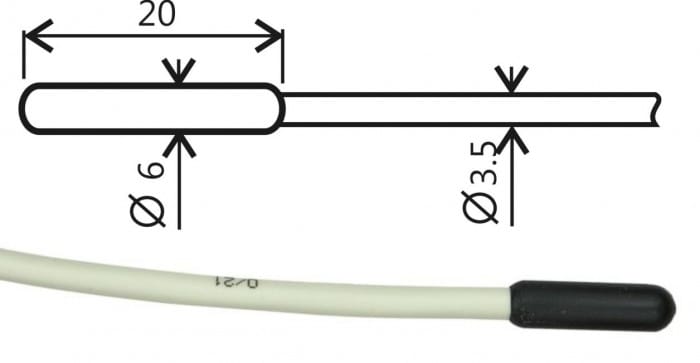

This temperature probe is a low-cost, multipurpose watertight (IP67) sensor designed to accurately measure temperatures in the range of -30 to +80°C It has a tolerance of ±(030+0005*|t|), which corresponds to class B accuracy in accordance with IEC751 The probe features a polyamide enclosure that houses a shielded PVC cable, with a total length of 5 meters The enclosure has a diameter of 6mm and a length of 20mm, while the cable has a diameter of 3mm.

This probe comes without a connector, making it suitable for various applications involving temperature measurement.

Features and Benefits:

    •Watertight design (IP67).

    •Wide measuring range of -30 to +80°C.

    •Class B accuracy according to IEC751.

    •Fast time response, t0.5 <12 s in flowing water.

    •Durable polyamide plastic construction.

    •Shielded PVC cable for enhanced performance.

Specifications:

 Measuring range: -30 to +80 °C
 Accuracy: ± (0.3 + 0.005 t) at °C
 Accuracy class: A
 Time response: t0.5 <12 s (in flowing water at > 0.2 m/s), t50 <12s, t90 <32s (in liquid)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: POLYAMIDE-based plastic
 Dimensions of the case: length 20 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: PVC shielded
 Length of lead-in cable: 5 meters
 Connector: without connector
 IP protection: IP67
 Warranty: 30 months
