Pt1000TR160/0 Temperature Probe - 1 meter

Pt1000TR160/0 Temperature Probe - 1 meter

SKU: SN199 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Low cost multi-purpose watertight probe designed for temperature sensing within a range of -30 to +80°C The probe features a polyamide enclosure equipped with a shielded PVC cable It has a compact design with a diameter of 6mm and a length of 20mm, making it suitable for various applications The probe is classified as IP67 for watertight protection and does not include a connector.

Features and Benefits:

    •Measuring range of -30 to +80 °C.

    •Accuracy of ± (0.3 + 0.005 t) at °C.

    •Class A accuracy in accordance with IEC751.

    •Fast response time with t0.5 <12 s in flowing water.

    •Durable polyamide-based plastic case.

    •Watertight design with IP67 protection.

Specifications:

 Measuring range: -30 to +80 °C
 Accuracy: ± (0.3 + 0.005 t) at °C
 Accuracy class: A
 Time response (t0.5): <12 s (in flowing water at > 0.2 m/s)
 Time response (t50): <12 s
 Time response (t90): <32 s (in liquid)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: POLYAMIDE-based plastic

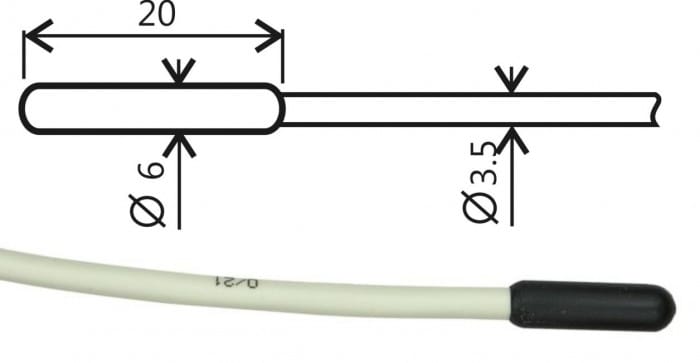

 Dimensions of the case: length 20 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: PVC shielded
 Length of lead-in cable: 1 meter
 Connector: without connector
 IP protection: IP67
 Warranty: 30 months
