Pt1000TGL40/M Temperature Probe with MiniDin Connector

Pt1000TGL40/M Temperature Probe with MiniDin Connector

SKU: SN185M   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The temperature probe is a low-cost, multi-purpose watertight probe designed for use in various applications It is rated at IP67 and can measure temperatures ranging from -30 to +80°C The casing is made from stainless steel and features a PVC cable of specified length, which is 1 meter The probe has a diameter of 57mm and a length of 40mm Its time response is t63 <10s and t95 <30s when measured in liquid, and t63 <60s and t95 <150s in airflow conditions.

It is equipped with a MiniDIN connector for easy connectivity.

Features and Benefits:

    •Watertight design with IP67 rating.

    •Wide measuring range of -30 to +80°C.

    •Stainless steel casing for durability.

    •Rapid time response in both liquid and air.

    •MiniDin connector for compatibility.

Specifications:

 Measuring range: -30 to +80 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response (in water): t0.5 <7 s (flowing water at > 0.2 m/s)
 Time response (in liquid): t63 <10s, t95 <30s
 Time response (in air): t63 <60s, t95 <150s
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4571

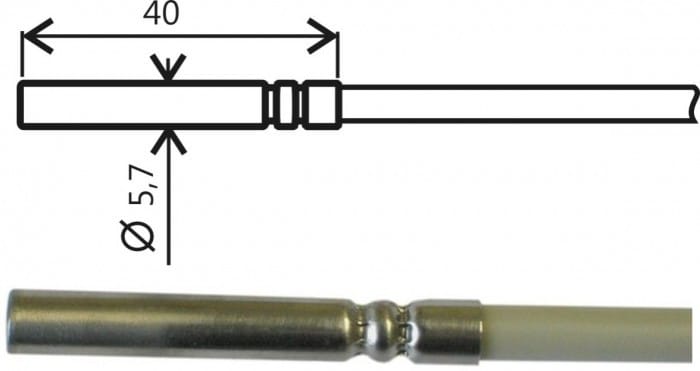

 Dimensions of the case: length 40 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: PVC shielded
 Length of lead-in cable: 1 meter
 Connector: MiniDin
 IP protection: IP67
 Warranty: 30 months
