Pt1000TGL40/C Temperature Probe

Pt1000TGL40/C Temperature Probe

SKU: SN188C Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Temperature probe Pt1000TGL40/C is a low-cost, multi-purpose watertight probe with an IP67 rating and a measuring range from -30 to +80°C It features a stainless steel case along with a 10-meter long PVC cable The diameter of the probe is 57mm, and its length is 40mm The time response of the probe is t63<10s and t95<30s when measured in fluids, and t63<60s and t95<150s in airflow at 1m The probe comes with a CINCH connector, ensuring durability and reliability for various applications.

Features and Benefits:

    •Watertight design with IP67 protection.

    •Stainless steel construction ensures durability.

    •10-meter PVC cable for extended reach.

    •High accuracy with a measuring range of -30 to +80°C.

    •Fast response time, suitable for fluid and airflow measurements.

Specifications:

 Measuring range: -30 to +80 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response in flowing water: t0.5 <7 s (at > 0.2 m/s)
 Time response in liquid: t63 <10s, t95 <30s
 Time response in air: t63 <60s, t95 <150s (1m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4571

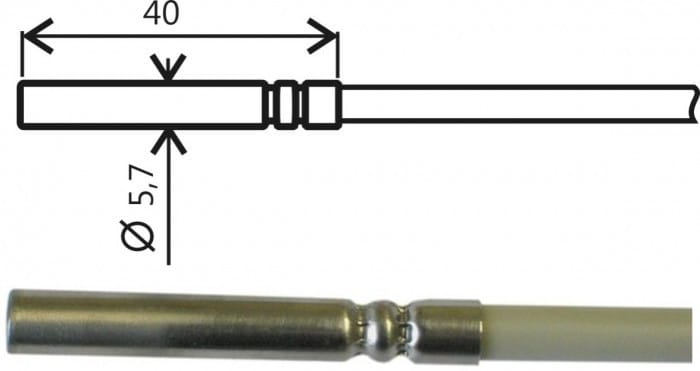

 Dimensions of the case: length 40 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: PVC shielded
 Length of lead-in cable: 10 meters
 Connector: CINCH
 IP protection: IP67
 Warranty: 30 months
