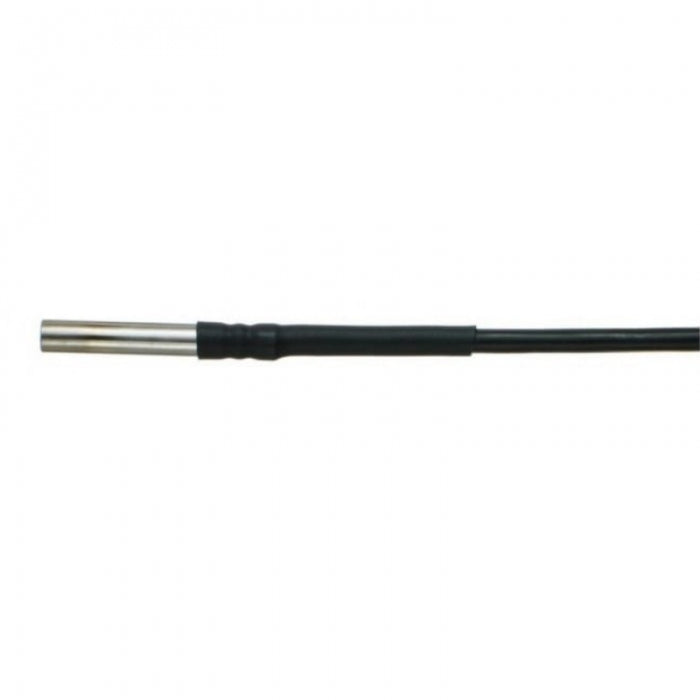

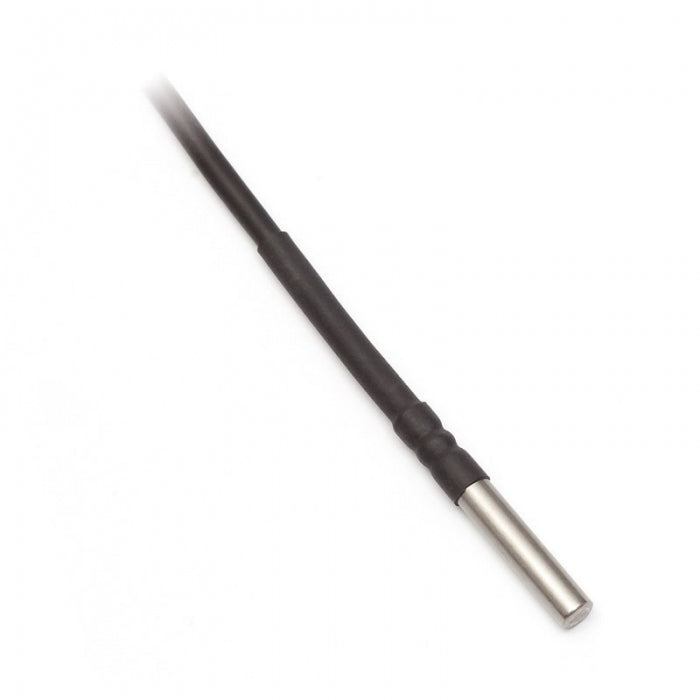

Pt1000TG8/M MiniDin Connector Temperature Probe - 2m

Pt1000TG8/M MiniDin Connector Temperature Probe - 2m

SKU: SN105M   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

This multi-purpose watertight temperature probe operates within a range of -80 to +200°C and is specifically designed for the measurement of temperature in gaseous and liquid substances It features a silicone insulated and shielded lead-in cable, making it suitable for universal applications Care should be taken to select the appropriate method of use based on the temperature and chemical resistance of the case and lead-in cable.

The probe is highly accurate with a class A accuracy rating and quick response times.

Features and Benefits:

    •Watertight design with IP67 rating.

    •Wide measuring range from -50 to +200 °C, and up to -80 to +200 °C for static positions.

    •High accuracy with ± (0.15 + 0.002 t) at °C.

    •Fast response time in various conditions (liquid and air).

    •Constructed from durable stainless steel.

    •Comes with a 2-meter silicone shielded lead-in cable.

    •Temperature measurement in industrial, laboratory, and various environmental settings.

Specifications:

 Measuring Range: -50 to +200 °C, -80 to +200 °C (for static position of lead-in cable)
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy Class: A
 Time Response: t0.5 <7 s (in flowing water at > 0.2 m/s), t63 <10s, t95 <30s (in liquid), t63 <60s, t95 <150s (air flow 1m/s)
 Type of Sensing Element: Pt1000
 Temperature Coefficient: 3850 ppm / °C
 Wire Connection: 2-wire connection
 Material of the Case: stainless steel DIN 1.4301

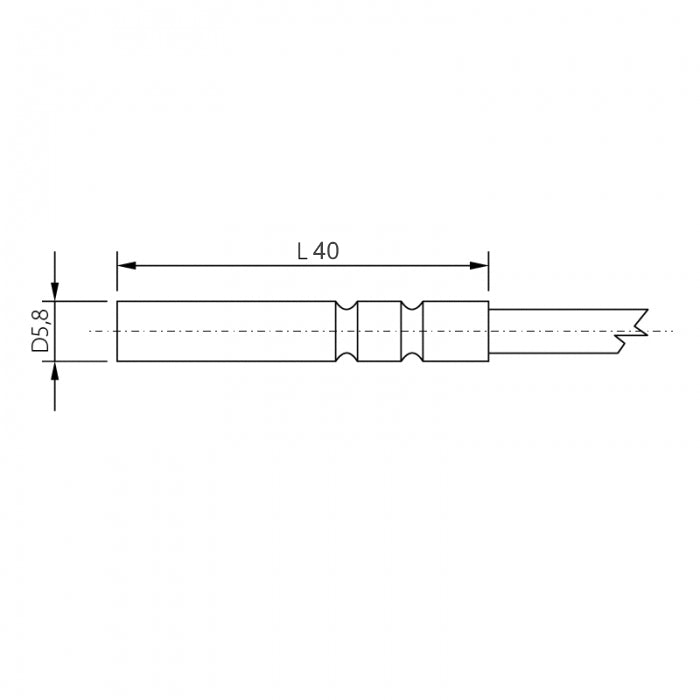

 Dimensions of the Case: length 40 mm; diameter 5.7 ± 0.1 mm
 Length of Lead-in Cable: 2 meters
 Connector: MiniDin
 IP Protection: IP67
 Warranty: 30 months
