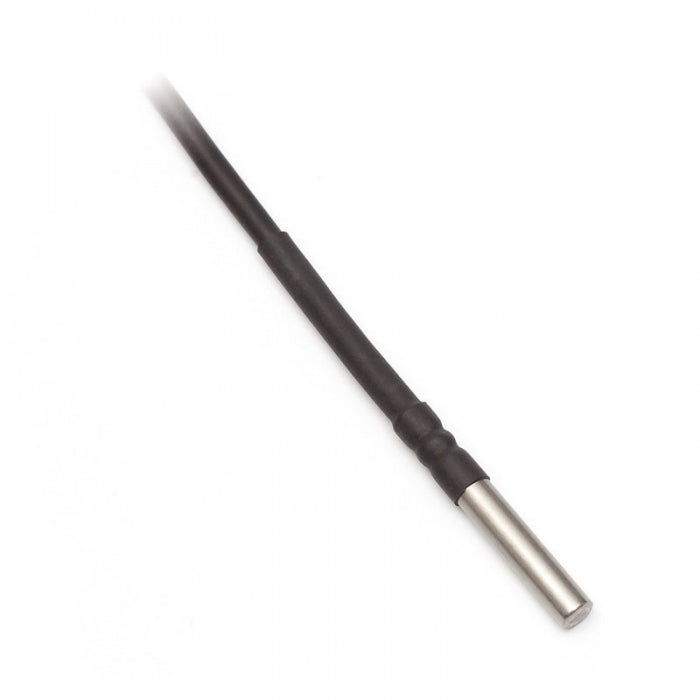

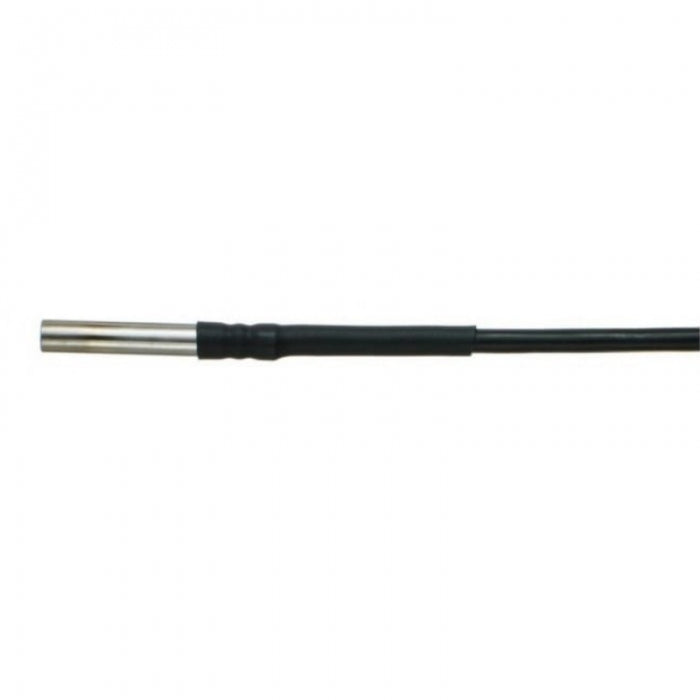

Pt1000TG8/E Multi-purpose Watertight Temperature Probe -80 to +200°C

Pt1000TG8/E Multi-purpose Watertight Temperature Probe -80 to +200°C

SKU: SN118E   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

This multi-purpose watertight IP67 temperature probe is capable of measuring temperatures ranging from -80 to +200°C, specifically tailored for both gaseous and liquid substances The design incorporates silicone insulated and shielded lead-in cables, providing durability and flexibility The probe is suitable for various applications and its usage method should consider the temperature and chemical compatibility of the case and lead-in cable.

Features and Benefits:

    •Measuring range from -50 to +200 °C and -80 to +200 °C for static lead-in cable positions.

    •Accuracy class A with ± (0.15 + 0.002 t) at °C accuracy.

    •Fast time response with under 7 seconds in flowing water at > 0.2 m/s.

    •Robust construction with stainless steel material.

    •IP67 protection ensures watertight integrity.

    •30 months warranty.

Specifications:

 Measuring range: -50 to +200 °C and -80 to +200 °C (for static position of lead-in cable)
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <7 s (in flowing water at > 0.2 m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4301

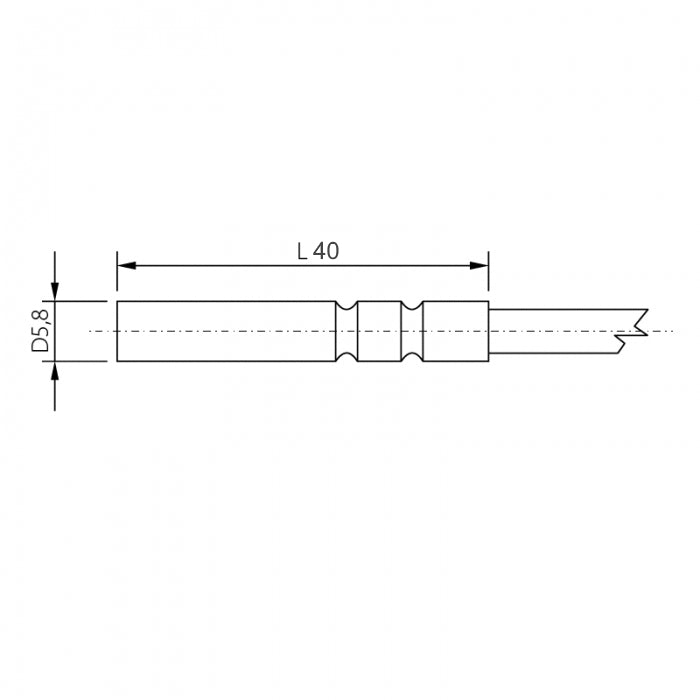

 Dimensions of the case: length 40 mm; diameter 5.7 ± 0.1 mm
 Length of lead-in cable: 15 meters
 Connector: ELKA
 IP protection: IP67
