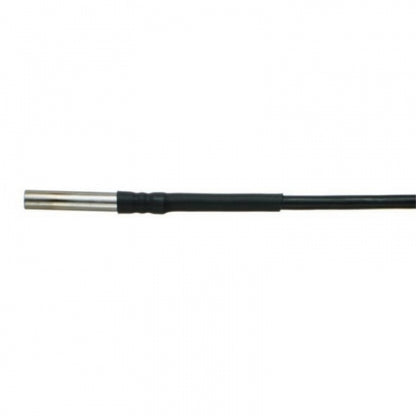

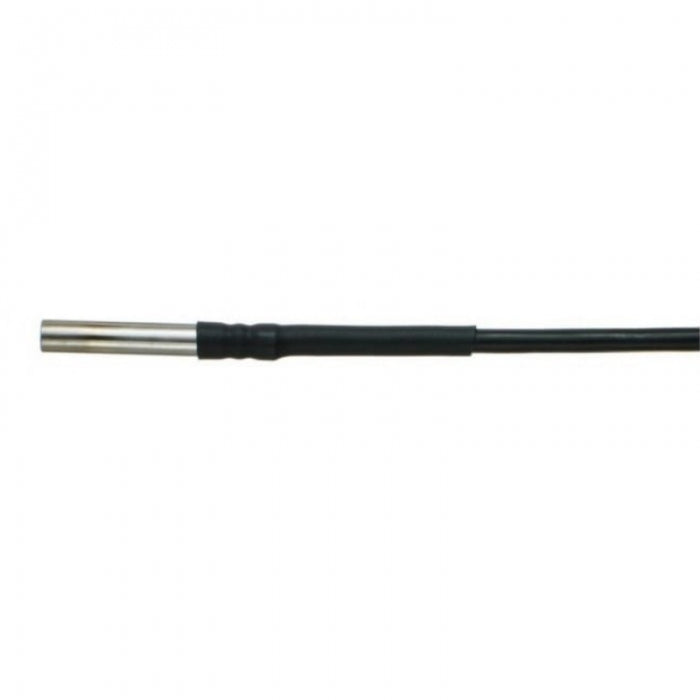

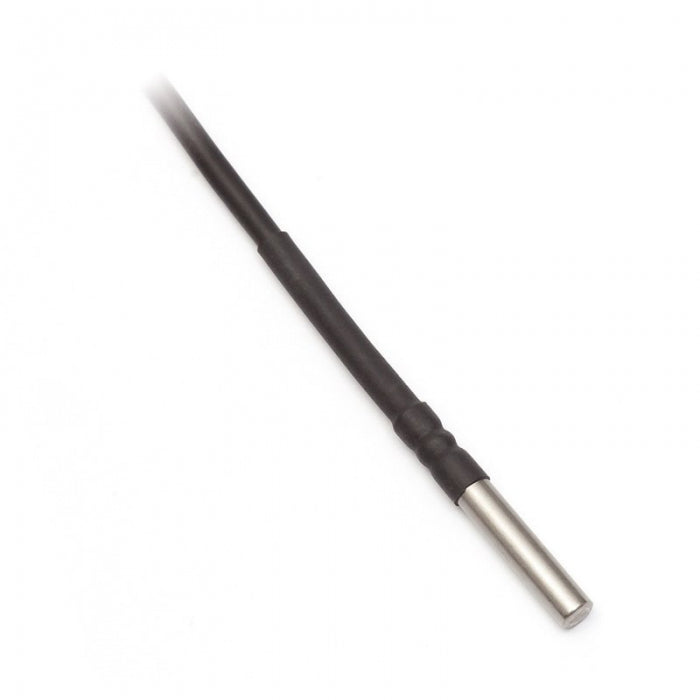

Pt1000TG8/E Multi-Purpose Watertight Temperature Probe -80 to +200°C

Pt1000TG8/E Multi-Purpose Watertight Temperature Probe -80 to +200°C

SKU: SN113E   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Multi-purpose watertight IP67 temperature probe designed to measure the temperature of gaseous and liquid substances The probe utilizes a silicone insulated and shielded lead-in cable and is intended for universal applications, with the method of use dependent on the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

    •Measuring range of -50 to +200 °C and -80 to +200 °C for static position of lead-in cable.

    •Accuracy of ± (0.15 + 0.002 t) at °C.

    •Fast response times: t0.5 <7 s in flowing water, various times for liquids and air.

    •2-wire connection for simple installation.

    •Durable stainless steel case material.

    •IP67 protection for watertight use.

    •30-month warranty.

Specifications:

 Measuring range: -50 to +200 °C, -80 to +200 °C (static position)
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response (t0.5): <7 s (in flowing water at > 0.2 m/s)
 Time response (t63): <10s (liquid), <60s (air flow 1m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4301

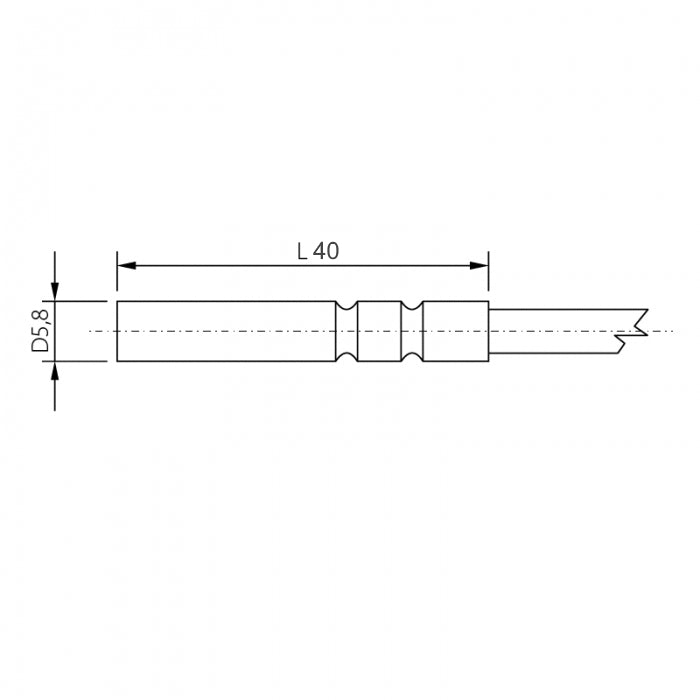

 Dimensions of the case: length 40 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 10 meters
 Connector: ELKA
 IP protection: IP67
