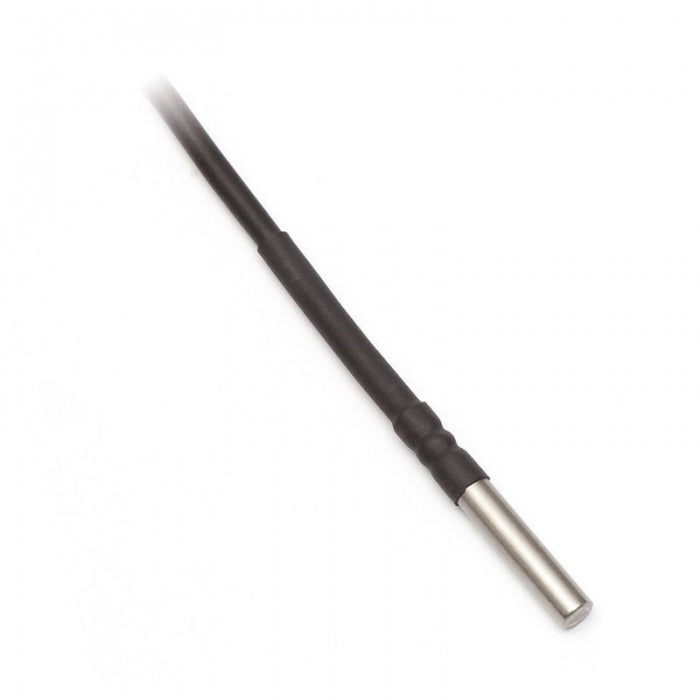

Pt1000TG8/E Multi-purpose Watertight IP67 Temperature Probe

Pt1000TG8/E Multi-purpose Watertight IP67 Temperature Probe

SKU: SN105E Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Pt1000TG8/E temperature probe is a multi-purpose watertight device designed to measure temperatures ranging from -80 to +200°C It is suitable for both gaseous and liquid substances This probe features silicone insulation and shielding on the lead-in cable and is designed for universal use, with a method of use that must consider the temperature and chemical resistance of the case and cable It has a variety of technical characteristics to ensure accurate readings under different conditions.

Features and Benefits:

    •Multi-purpose watertight design with IP67 rating.

    •Wide measuring range from -80 to +200 °C.

    •High accuracy temperature readings with class A accuracy.

    •Quick response time in various environments.

    •Durable stainless steel case and silicone insulated cable.

    •Suitable for measuring the temperature of gaseous and liquid substances.

    •Ideal for industrial and scientific applications requiring precise temperature measurements.

Specifications:

 Measuring range: -50 to +200 °C, -80 to +200 °C (for static position of lead-in cable)
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <7 s (in flowing water at > 0.2 m/s), t63 <10s, t95 <30s (in liquid), t63 <60s, t95 <150s (air flow 1m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4301

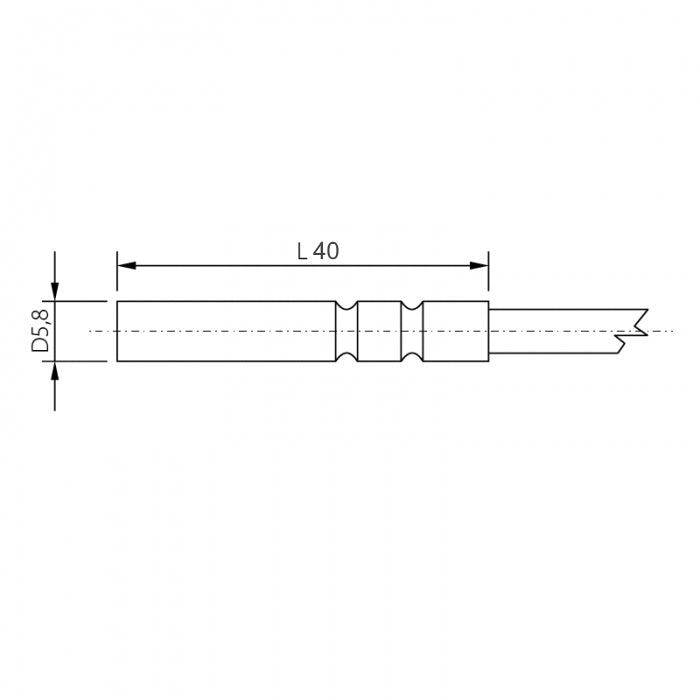

 Dimensions of the case: length 40 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 2 meters
 Connector: ELKA
 IP protection: IP67
 Warranty: 30 months
