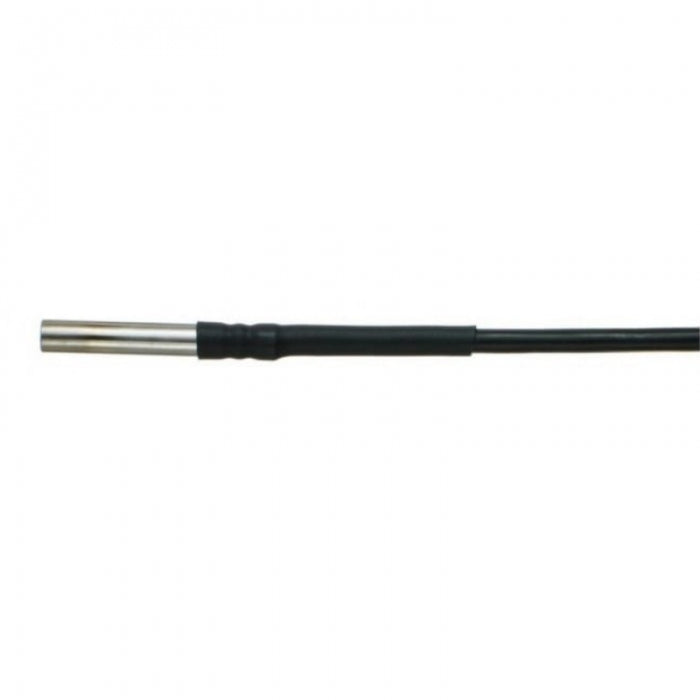

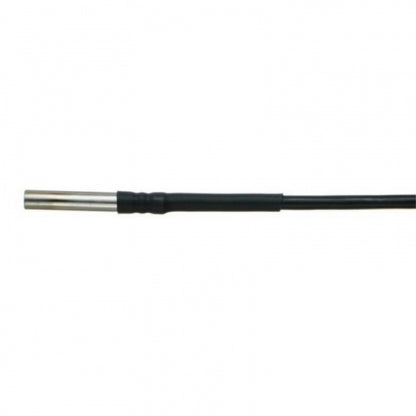

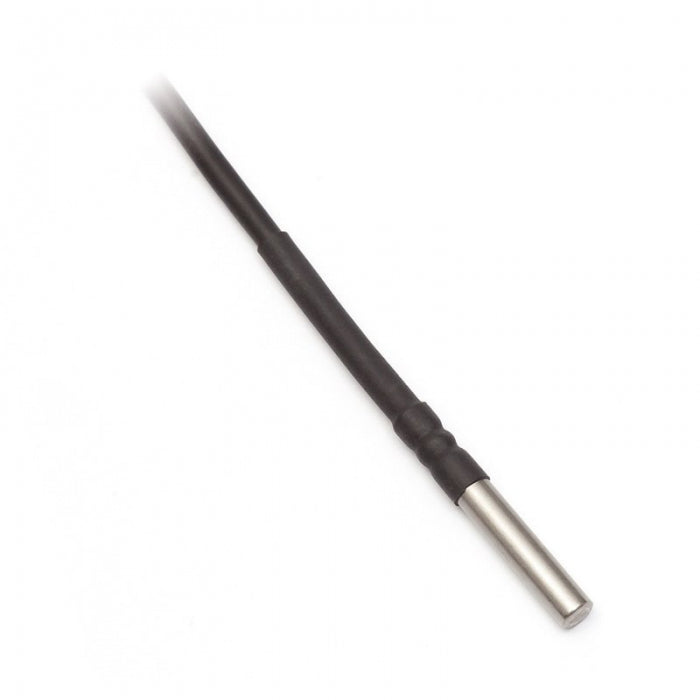

Pt1000TG8/C Temperature Probe -80 to +200°C, 2m

Name: Pt1000TG8/C Temperature Probe -80 to +200°C, 2m
Brand: COMET
SKU: SN105C
Price: 100.00 USD
Availability: InStock

SKU: SKU: SN105C Download PDF

SET THE QTY:

Qty:

Now $100.00 Web pricing policy

~~BEFORE~~ Now $100.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Resources

Description:

The multi-purpose watertight IP67 temperature probe is designed to operate within a temperature range of -80 to +200°C It is suitable for measuring the temperature of gaseous and liquid substances The probe features a lead-in cable with silicone insulation and shielding, ensuring its versatility and reliability The method of use should be chosen based on the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

•Watertight IP67 rating.

•Wide measuring range from -80 to +200°C.

•Accuracy of ± (0.15 + 0.002 t) at °C.

•Fast response times in various mediums.

•2-wire connection for effective measurement.

•Measuring temperature in industrial applications for both gaseous and liquid substances.

•Suitable for use in environments requiring watertight protection and high precision.

Specifications:

Measuring Range:	-50 to +200 °C, -80 to +200 °C for static position of lead-in cable
Accuracy:	± (0.15 + 0.002 t) at °C
Accuracy Class:	A
Time Response:	t0.5 <7 s in flowing water at > 0.2 m/s, t63 <10s in liquid, t63 <60s in air flow 1m/s
Type of Sensing Element:	Pt1000
Temperature Coefficient:	3850 ppm / °C
Wire Connection:	2-wire connection
Material of the Case:	stainless steel DIN 1.4301

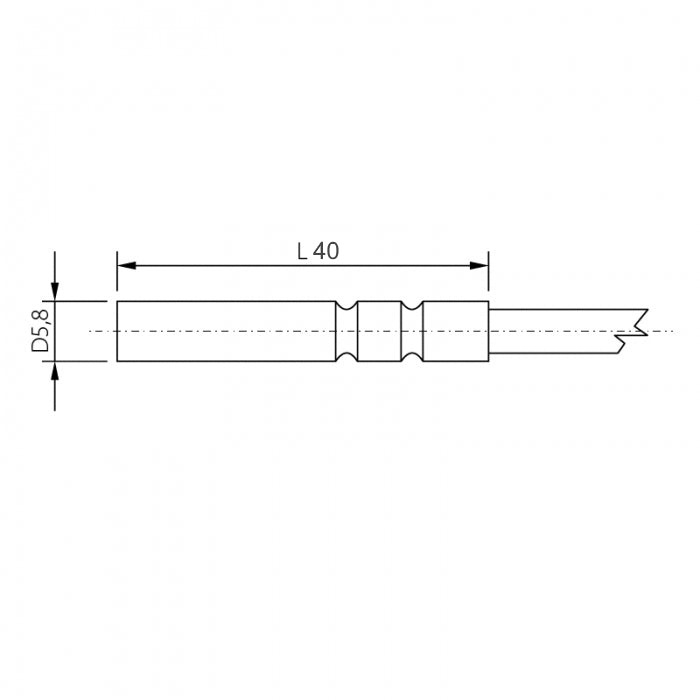

Dimensions of the Case:	length 40 mm; diameter 5.7 ± 0.1 mm
Lead-in Cable:	silicone shielded
Length of Lead-in Cable:	2 meters
Connector:	CINCH
IP Protection:	IP67
Warranty:	30 months
