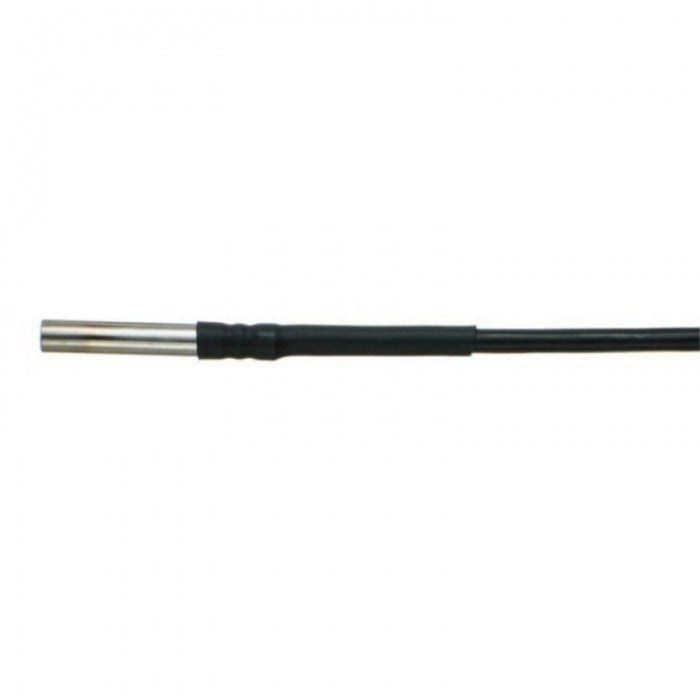

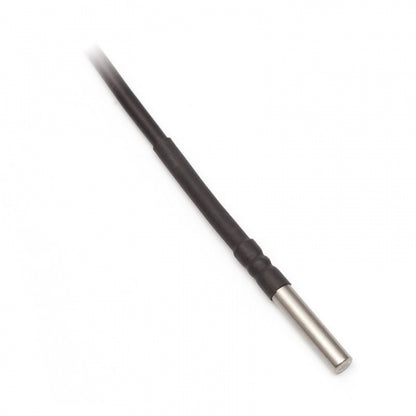

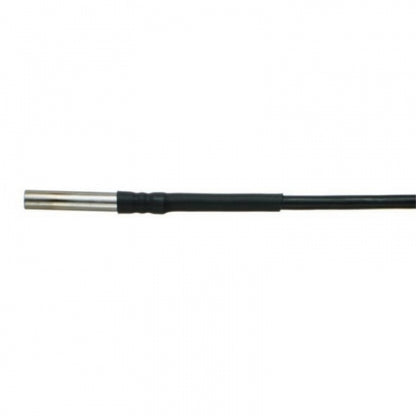

Pt1000TG8/0 Multi-purpose Watertight Temperature Probe

Pt1000TG8/0 Multi-purpose Watertight Temperature Probe

SKU: SN104   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The multi-purpose watertight IP67 temperature probe is designed to measure temperatures from -80 to +200°C for both gaseous and liquid substances It features a silicone insulated lead-in cable for universal use, with careful consideration needed regarding temperature and chemical resistance of the case and cable This probe provides reliable temperature readings in various conditions.

Features and Benefits:

    •Measuring range from -50 to +200 °C and -80 to +200 °C for static lead-in cable positions.

    •Accuracy of ± (0.15 + 0.002 t) at °C, classified as accuracy class A.

    •Fast time response: t0.5 <7 s in flowing water, t63 <10s, t95 <30s in liquid, and t63 <60s, t95 <150s in airflow.

    •Constructed from durable stainless steel DIN 1.4301.

    •Silicone shielded lead-in cable of length 1 meter.

    •IP67 protection rating, ensuring watertight performance.

    •Used for measuring temperature in various industrial applications involving gaseous and liquid substances.

Specifications:

 Measured value Temperature
 Measuring range -50 to +200 °C, -80 to +200 °C for static position of lead-in cable
 Accuracy ± (0.15 + 0.002 t) at °C
 Accuracy class A
 Time response (t0.5) <7 s in flowing water
 Time response (t63) <10s in liquid
 Time response (t95) <30s in liquid, <60s in airflow 1m/s
 Type of sensing element Pt1000
 Temperature coefficient 3850 ppm / °C
 Wire connection 2-wire connection
 Material of the case stainless steel DIN 1.4301

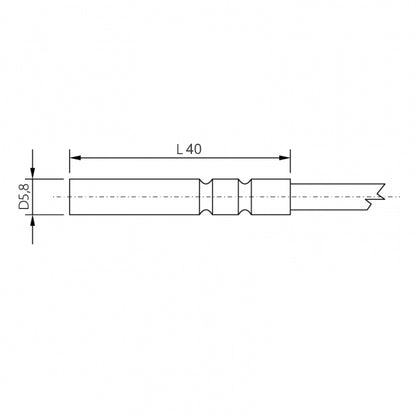

 Dimensions of the case length 40 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable silicone shielded
 Length of lead-in cable 1 meter
 Connector without connector
 IP protection IP67
 Warranty 30 months
