Pt1000TG7 Temperature Probe - 2m

Pt1000TG7 Temperature Probe - 2m

SKU: SN165C   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

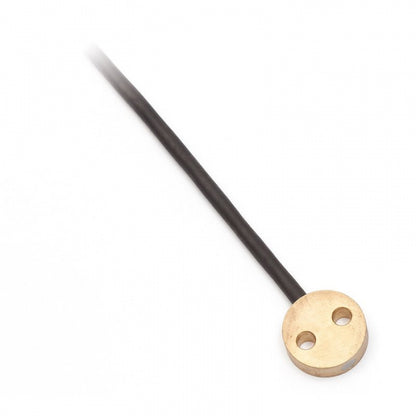

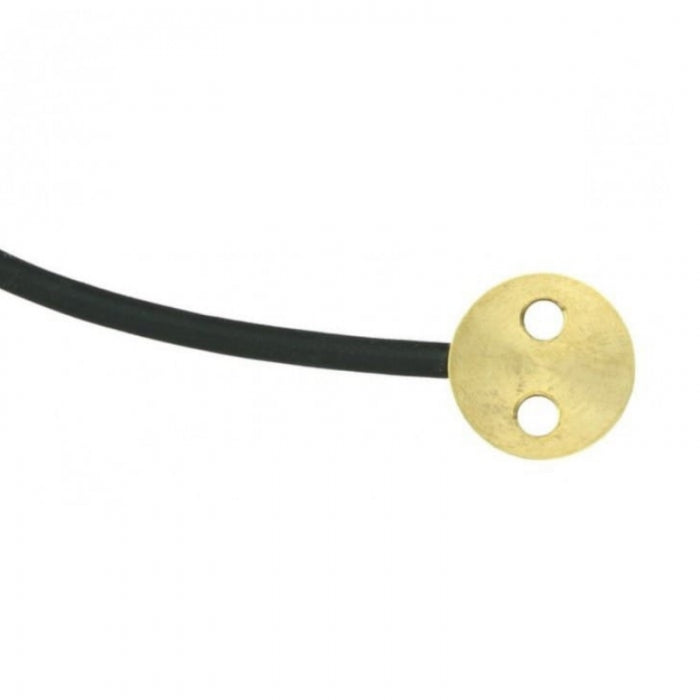

Temperature probes Pt1000TG7 are specifically designed for measuring the surface temperature of solid materials These sensors operate within a maximum temperature range of -50 to +200 °C, and exceeding these limits even briefly is not recommended The lead-in cable employs silicone insulation and shielding for durability With a structure designed for quick responses to temperature changes, these probes can be securely mounted using one or two M4 screws.

They are particularly suitable for use in environments that are not chemically aggressive, making careful consideration of the temperature and chemical resistance of both the case and lead-in cable essential in their application.

Features and Benefits:

    •Fast response to temperature changes.

    •Suitable for non-aggressive chemical environments.

    •Secure mounting with M4 screws.

    •Silicone insulated lead-in cable for durability.

    •Surface temperature measurement of solid substances.

Specifications:

 Measured value: Temperature
 Measuring range: -50 to +200 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <10 s (on flat surface of Al prism without paste)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: brass

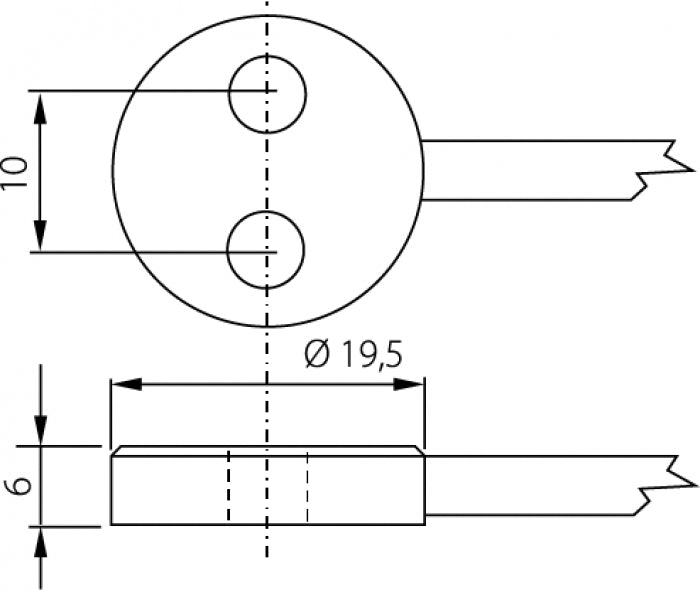

 Dimensions of the case: height 6 ± 0.1 mm; diameter 19.5 ± 0.1 mm; mounting holes diameter 4.3 ± 0.05 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 2 meters
 Connector: CINCH
 IP protection: IP65
 Warranty: 30 months
