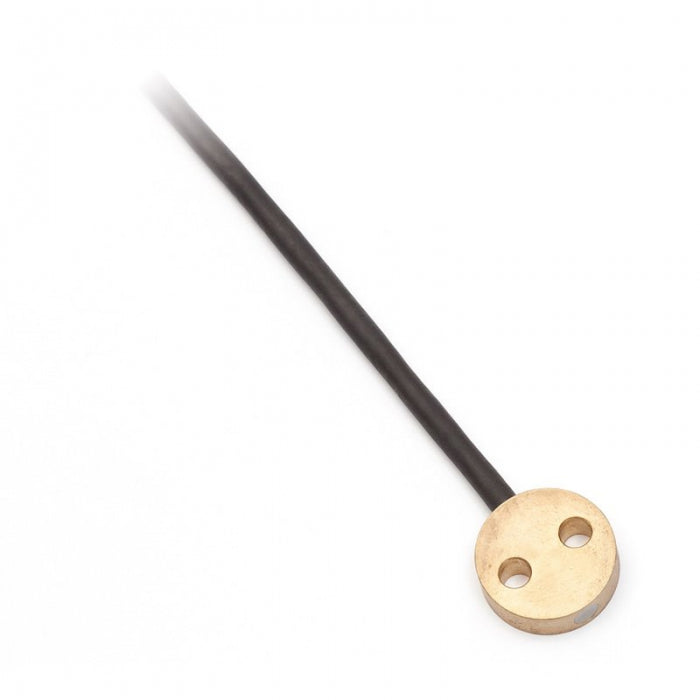

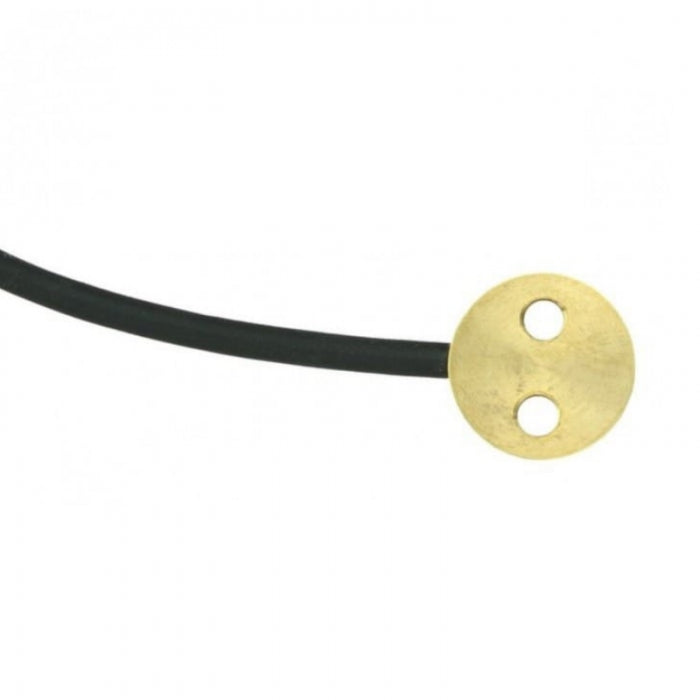

Pt1000TG7 - Temperature Probe - 10m

Pt1000TG7 - Temperature Probe - 10m

SKU: SN167C   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances The maximum temperature range of use of the sensors is -50 to +200 °C and these limits must not be exceeded even for a brief period Used type of lead-in cable has silicone insulation and shielding The structure of the sensors enables fast response to changes in temperature The sensors are mounted to the surface using one or two M4 screws.

The sensors are designed for use in a chemically non-aggressive environment The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

    •Maximum temperature range of -50 to +200 °C.

    •Fast response to temperature changes.

    •Silicone insulated and shielded lead-in cable.

    •IP65 protection rating.

    •Mounting with one or two M4 screws.

Specifications:

 Measured value Temperature
 Measuring range -50 to +200 °C
 Accuracy ± (0.15 + 0.002 t) at °C
 Accuracy class A
 Time response t0.5 <10 s (on flat surface of Al prism without paste)
 Type of sensing element Pt1000
 Temperature coefficient 3850 ppm / °C
 Wire connection 2-wire connection
 Material of the case brass

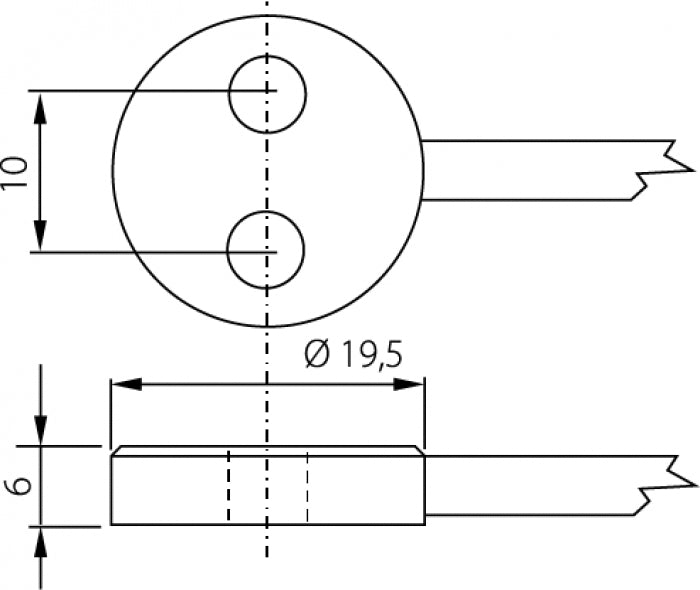

 Dimensions of the case height 6 ± 0.1 mm; diameter 19.5 ± 0.1 mm; mounting holes diameter 4.3 ± 0.05 mm
 Lead-in cable silicone shielded
 Length of lead-in cable 10 meters
 Connector CINCH
 IP protection IP65
