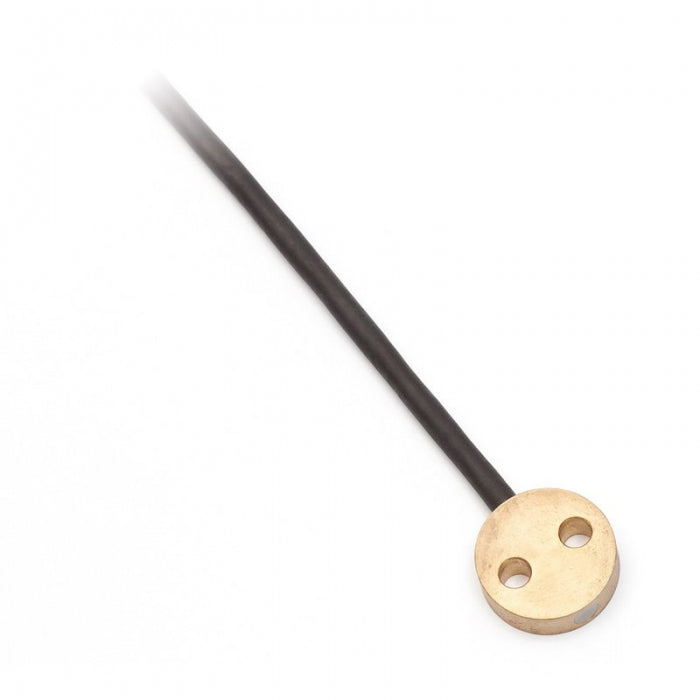

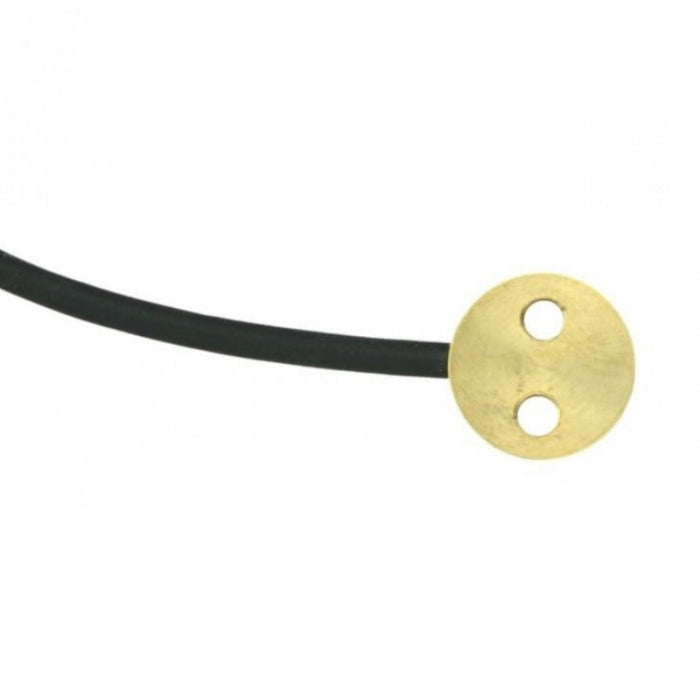

Pt1000TG7/M Temperature Probe - MiniDin Connector, 5m

Pt1000TG7/M Temperature Probe - MiniDin Connector, 5m

SKU: SN166M   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances The maximum temperature range of use of the sensors is -50 to +200 °C, and these limits must not be exceeded even for a brief period Used type of lead-in cable has silicone insulation and shielding The sensors enable a fast response to changes in temperature and are mounted to the surface using one or two M4 screws.

They are designed for use in a chemically non-aggressive environment The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

    •Designed to measure the surface temperature of solid substances.

    •Maximum temperature range of -50 to +200 °C.

    •Fast response to changes in temperature.

    •Mounted using one or two M4 screws.

    •Suitable for chemically non-aggressive environments.

    •Silicone insulation and shielding.

Specifications:

 Measuring range -50 to +200 °C
 Accuracy ± (0.15 + 0.002 t) at °C
 Accuracy class A
 Time response t0.5 <10 s (on flat surface of Al prism without paste)
 Type of sensing element Pt1000
 Temperature coefficient 3850 ppm / °C
 Wire connection 2-wire connection
 Material of the case brass

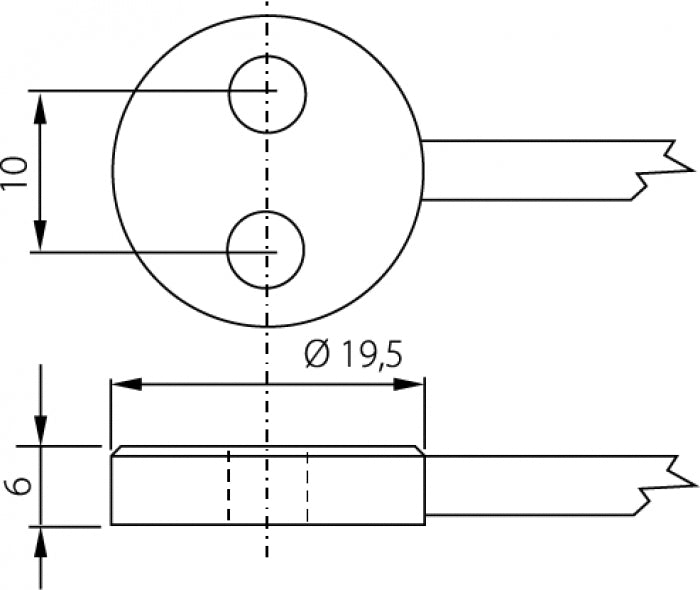

 Dimensions of the case height 6 ± 0.1 mm; diameter 19.5 ± 0.1 mm; mounting holes diameter 4.3 ± 0.05 mm
 Lead-in cable silicone shielded
 Length of lead-in cable 5 meters
 Connector MiniDin
 IP protection IP65
 Warranty 30 months
