Pt1000TG7/M Temperature Probe - MiniDin connector, 10m

Pt1000TG7/M Temperature Probe - MiniDin connector, 10m

SKU: SN167M Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

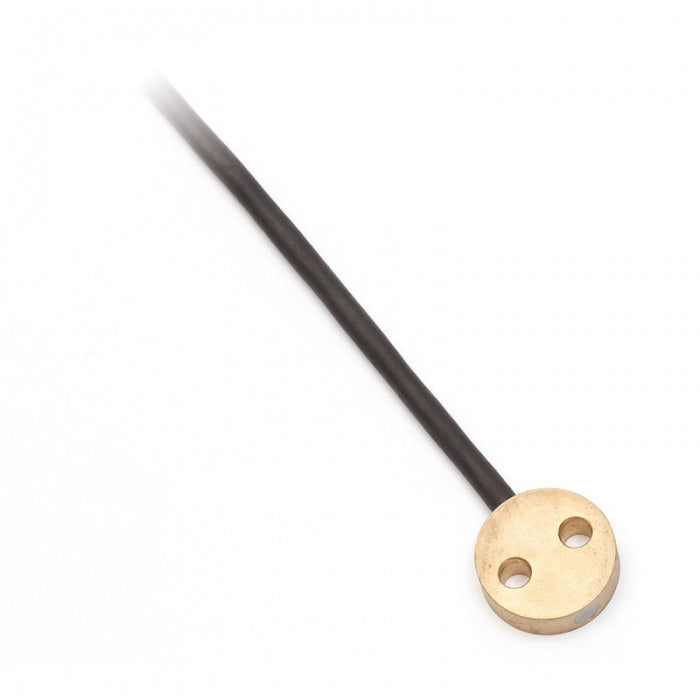

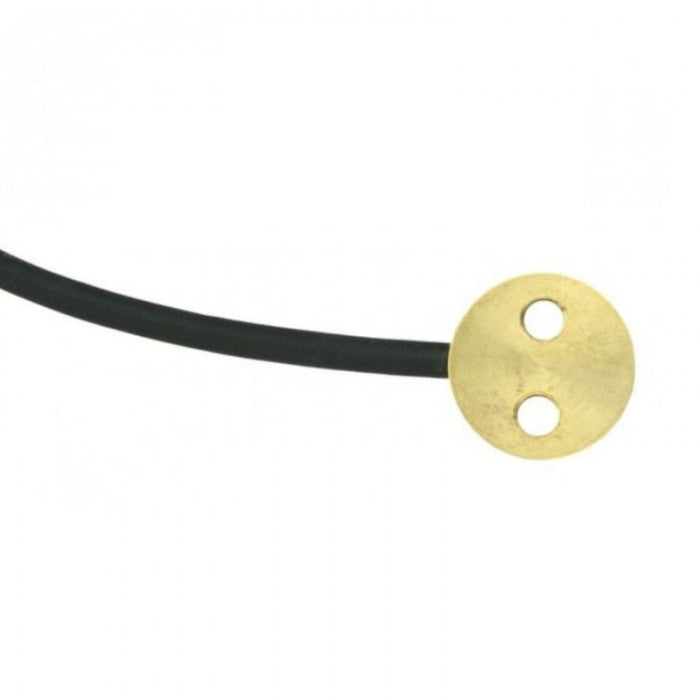

Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances The maximum temperature range of use of the sensors is -50 to +200 °C and these limits must not be exceeded even for a brief period Used type of lead-in cable has silicone insulation and shielding The structure of the sensors enables fast response to changes in temperature The sensors are mounted to the surface using one or two M4 screws.

The sensors are designed for use in a chemically non-aggressive environment The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Features and Benefits:

    •Designed to measure surface temperature of solid substances.

    •Maximum temperature range from -50 to +200 °C.

    •Fast response to temperature changes.

    •Mounting options using M4 screws.

    •Suitable for chemically non-aggressive environments.

Specifications:

 Measuring range: -50 to +200 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <10 s (on flat surface of Al prism without paste)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: brass

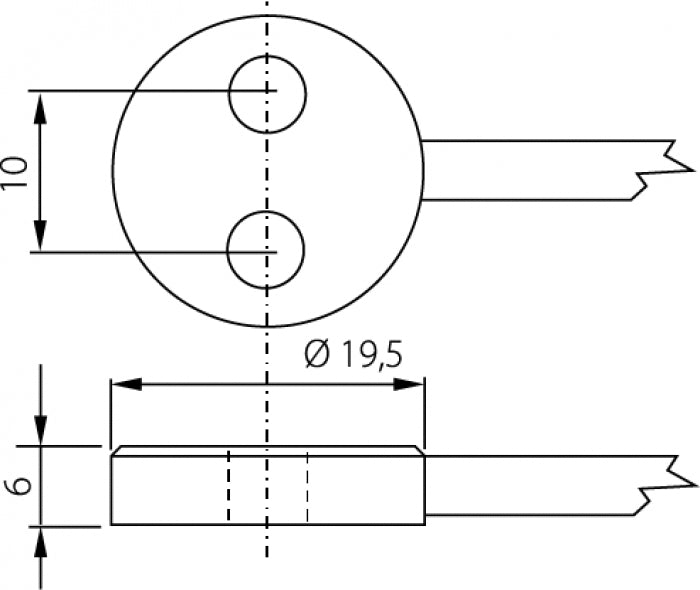

 Dimensions of the case: height 6 ± 0.1 mm; diameter 19.5 ± 0.1 mm; mounting holes diameter 4.3 ± 0.05 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 10 meters
 Connector: MiniDin
 IP protection: IP65
 Warranty: 30 months
