Pt1000TG68/0 Temperature Probe - Multi-purpose Watertight

Pt1000TG68/0 Temperature Probe - Multi-purpose Watertight

SKU: SN232   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

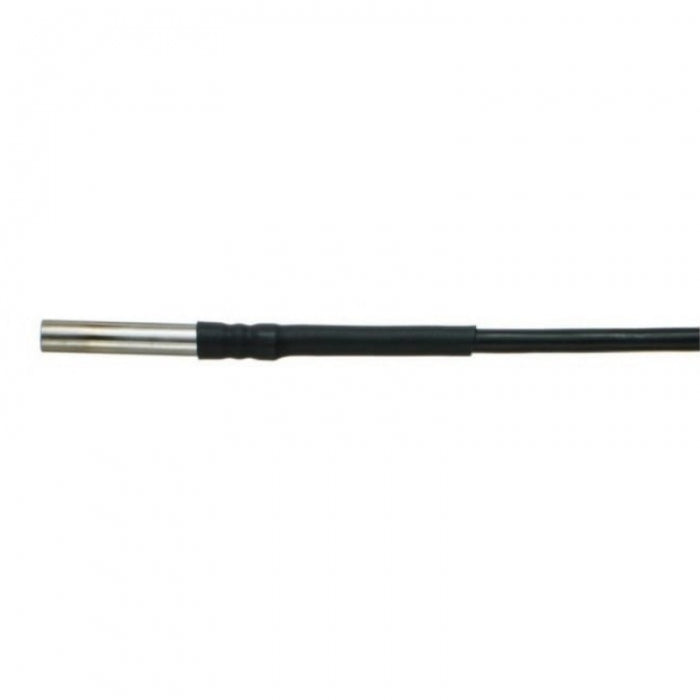

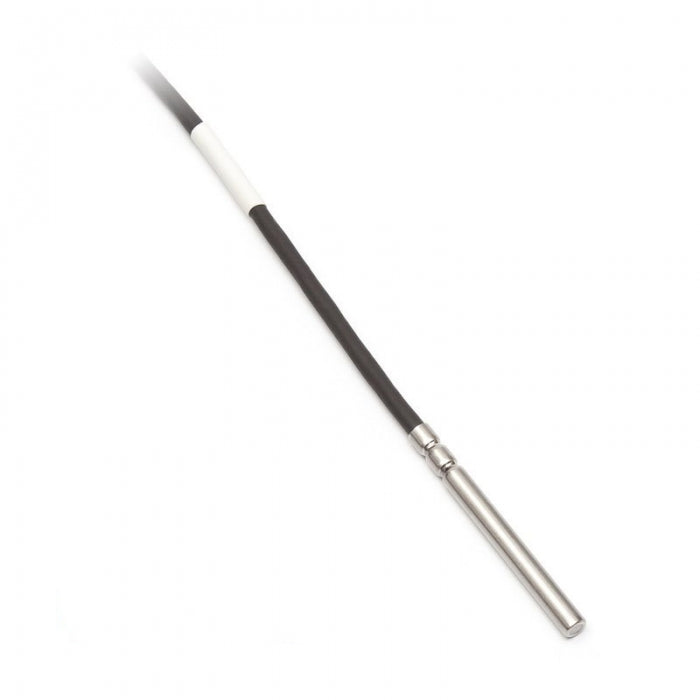

Temperature probe Pt1000TG68/0, without connector, cable 2 meters Multi-purpose watertight IP68 probe -50 to +200°C The probe is designed to measure the temperature of gaseous and liquid substances The maximum temperature range of use of the sensors is -50 to 200 °C Used type of lead-in cable has silicone insulation and shielding The probe meets the ingress protection of IP 68 (1 bar) in accordance with EN 60 529 and is designed for measuring the temperature below the surface of water for continuous immersion at a depth of up to 5 m.

The method of use must be chosen with regard to the temperature and chemical resistance of the case and supply cable Technical data Measured value Temperature.

Specifications:

 Measured value: Temperature
 Measuring range: -50 to +200 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <12 s (in flowing water at > 0.2 m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4404

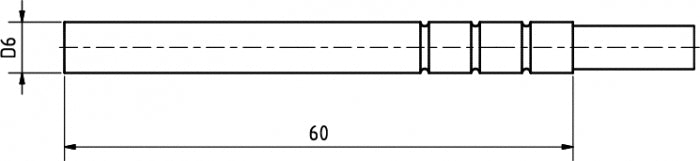

 Dimensions of the case: length 60 mm; diameter 6 ± 0.1 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 2 meters
 Connector: without connector
 IP protection: IP68
 Warranty: 30 months
