Pt1000TG68/0 Temperature probe -10 to +200°C, 10m

Pt1000TG68/0 Temperature probe -10 to +200°C, 10m

SKU: SN234 Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Temperature probe Pt1000TG68/0 is a multi-purpose watertight IP68 probe that measures temperatures from -50 to +200°C It is designed for measuring the temperature of gaseous and liquid substances, and it can be continuously immersed in water at a depth of up to 5 meters The probe has silicone insulation and shielding for lead-in cable and meets the ingress protection of IP 68 (1 bar) according to EN 60 529.

Proper usage must consider the temperature and chemical resistance of the case and supply cable.

Features and Benefits:

    •Measuring range from -50 to +200 °C.

    •Ingress protection IP68 for watertight use.

    •Accuracy of ± (0.15 + 0.002 t) at °C.

    •Time response t0.5 <12 s in flowing water at > 0.2 m/s.

    •Made of stainless steel DIN 1.4404.

Specifications:

 Measured value: Temperature
 Measuring range: -50 to +200 °C
 Accuracy: ± (0.15 + 0.002 t) at °C
 Accuracy class: A
 Time response: t0.5 <12 s (in flowing water at > 0.2 m/s)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: stainless steel DIN 1.4404

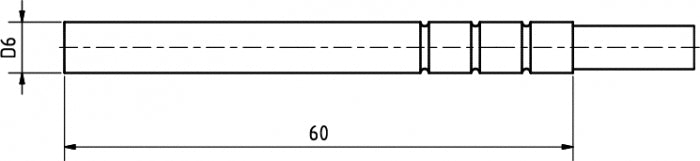

 Dimensions of the case: length 60 mm; diameter 6 ± 0.1 mm
 Lead-in cable: silicone shielded
 Length of lead-in cable: 10 meters
 Connector: without connector
 IP protection: IP68
 Warranty: 30 months
