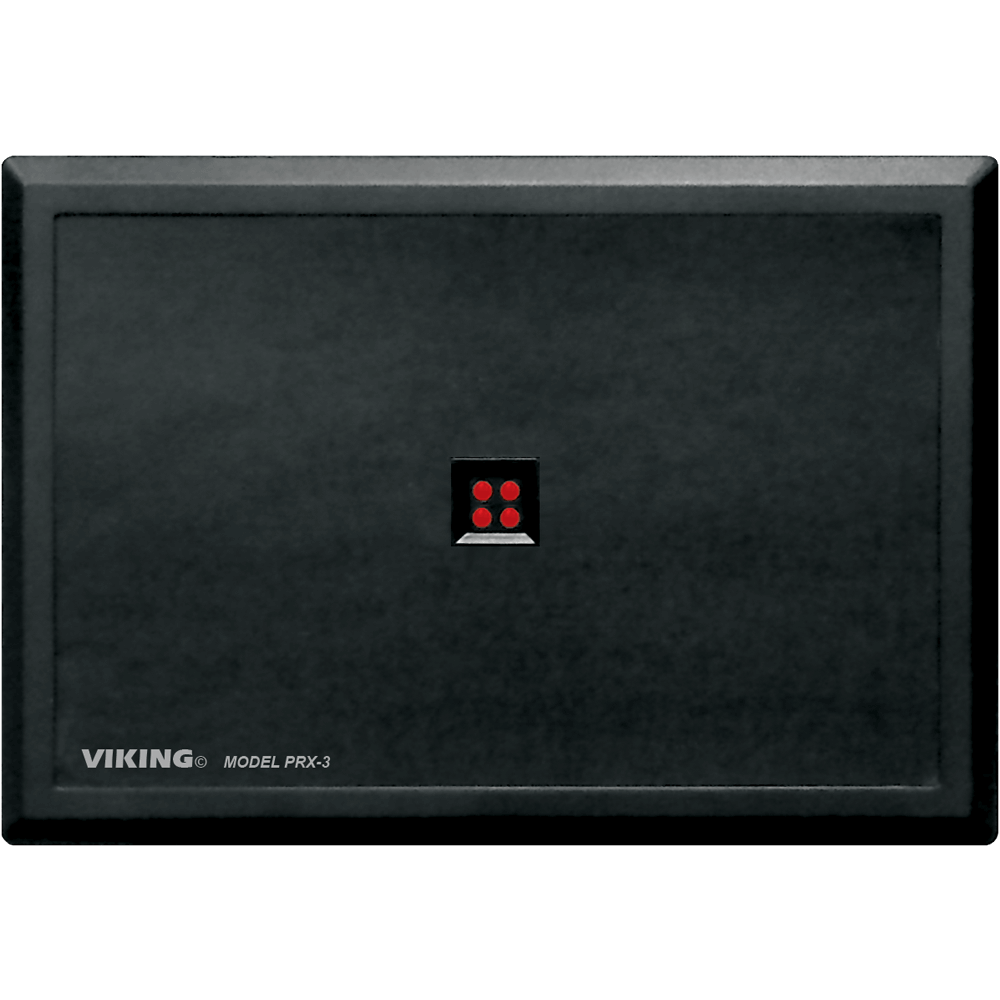

PRX-3 - High-Performance 125 KHz Proximity Reader with 16-Inch Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PRX-3, a cutting-edge proximity reader engineered for exceptional performance Operating at 125 KHz, this compact device offers a reading distance of up to 16 inches*, making it perfect for applications such as parking management, gate access control, and turnstile operation The PRX-3 utilizes the 26-Bit Wiegand data format, seamlessly integrating with Wiegand-compatible Viking controllers.

Versatility is key with this proximity reader, as it can be mounted in various locations including walls, posts, single-gang electrical boxes, or Viking gooseneck pedestals when using an optional kit It features adjustable slots for easy leveling during installation Built to last, the PRX-3 boasts a robust, vandal-resistant chassis that incorporates concealed mounting screws and a UV-resistant label for long-lasting clarity.

Additionally, its Enhanced Weather Protection (EWP) ensures dependable functionality in outdoor conditions, resisting the effects of rain and humidity.

Features and Benefits:

•Read range of up to 16 inches*.

•Standard 26-bit Wiegand interface.

•Technologies supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, LRT-4, and certain legacy HID proximity protocols and certain AWID 125Khz proximity protocols.

•Surface mounts to non-metallic wall, post or single gang electrical box.

•Mounts to Viking VE-GNP Series gooseneck pedestal’s with optional PRX-3-MK-GNP or PRX-3- MK-VEGNP mounting kits.

•Designed for outdoor use, the PRX-3 comes standard with Enhanced Weather Protection (EWP).

•PRX-3 is designed to meet IP66 Ingress Protection Rating.

•Pigtail connection for easy installation.

•Four red LED’s indicates power and flashes off during card read.

•Transducer provides beep during card read.

•CE marked.

•Parking control.

•Gate access.

•Turnstiles.

Specifications:
