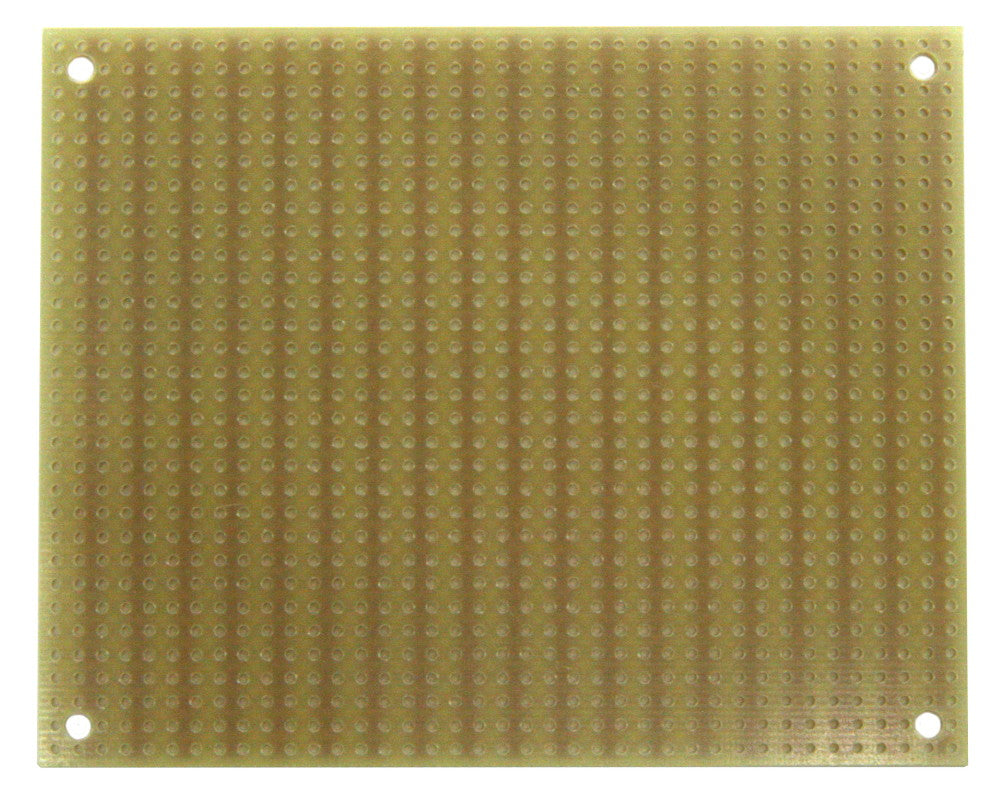

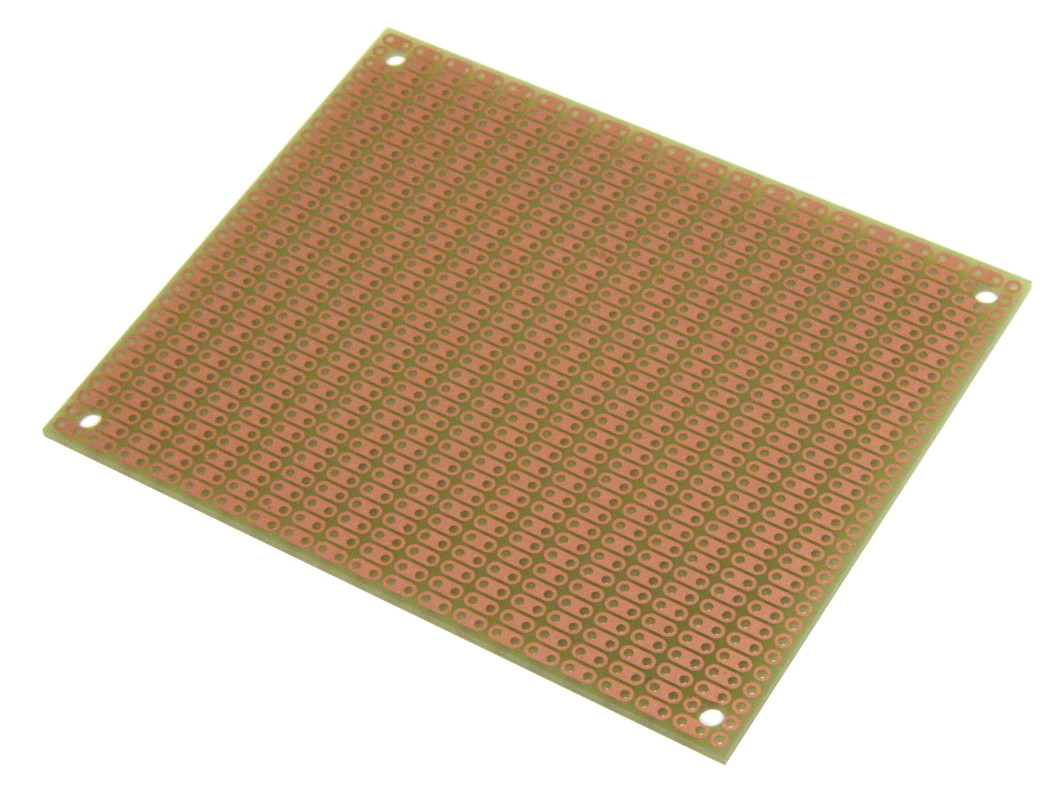

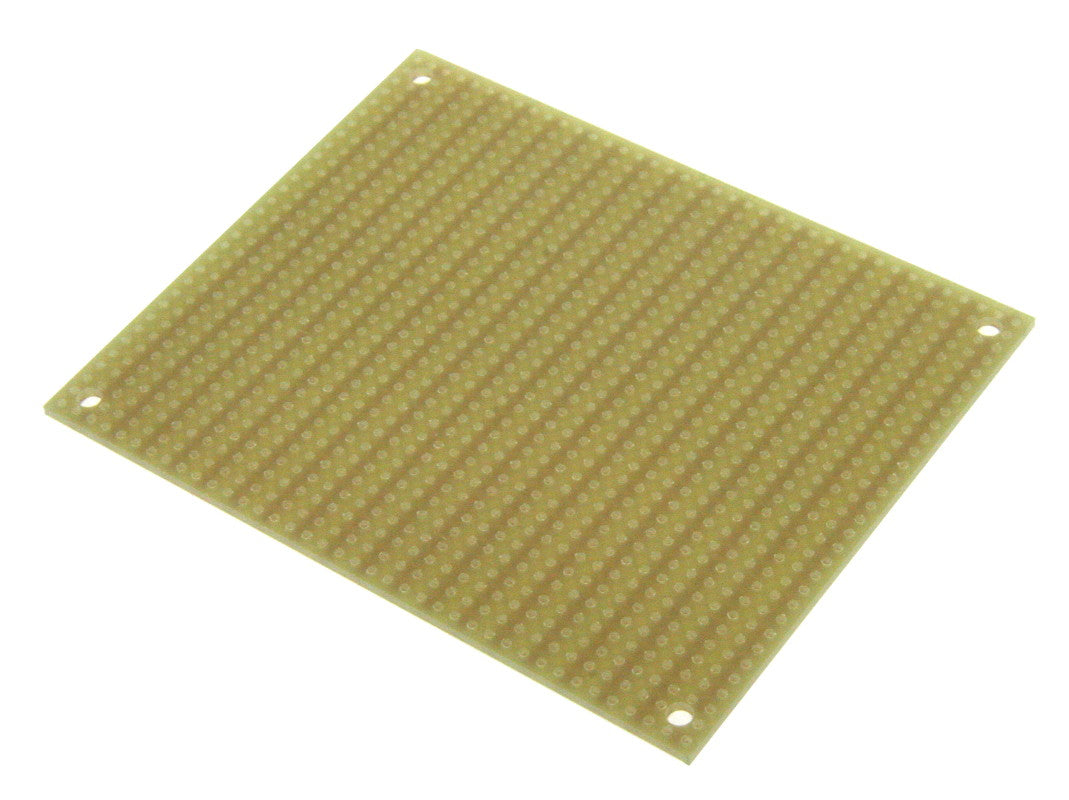

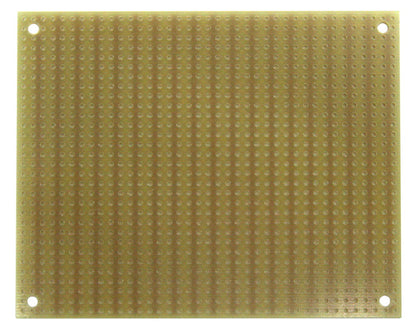

PR2H2 ProtoBoard-2H-2 Prototyping Circuit Board

PR2H2 ProtoBoard-2H-2 Prototyping Circuit Board

SKU: PR2H2 Download PDF

Now $5.98
BEFORE   Now $5.98
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

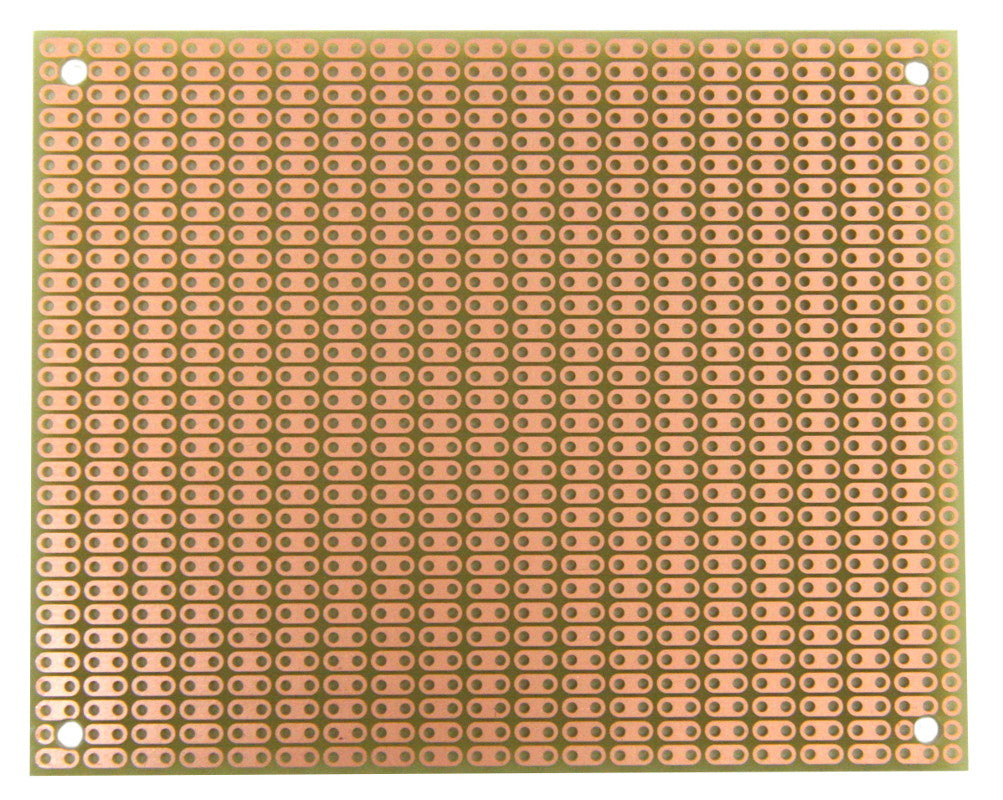

The ProtoBoard-2H-2 prototyping circuit board has 2-hole pre-cut strips The convenient 2-hole ProtoBoard pattern provides an easy way to connect parts while maximizing usable board area ProtoBoard-2H is a good pattern for compact circuit layouts, and it is often more convenient than pad-per-hole patterns It is good for analog use as well as digital since many discrete components can be located closely.

It is a single-sided board with holes on 01” centers An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering.

Features and Benefits:

    •Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

    •High-quality single-sided FR4 glass-epoxy circuit board..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering..

    •Lead free and RoHS compatible..

    •31 x 39 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers..

    •Four 0.125” mounting holes..

Specifications:

 Size: 100 x 80mm (3.94 x 3.15in), 1/16" thick (1.6mm)
 Hole Configuration: 31 x 39 holes, 0.037" holes on 0.1" (2.54mm) centers
 Copper Weight: 1oz/ft2
 Material: Single-sided FR4 glass-epoxy
 Coating: Anti-tarnish coating
