PR1593K Prototyping Circuit Board

PR1593K Prototyping Circuit Board

SKU: PR1593K   Download PDF

Qty:
Now $4.30   Web pricing policy
BEFORE   Now $4.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

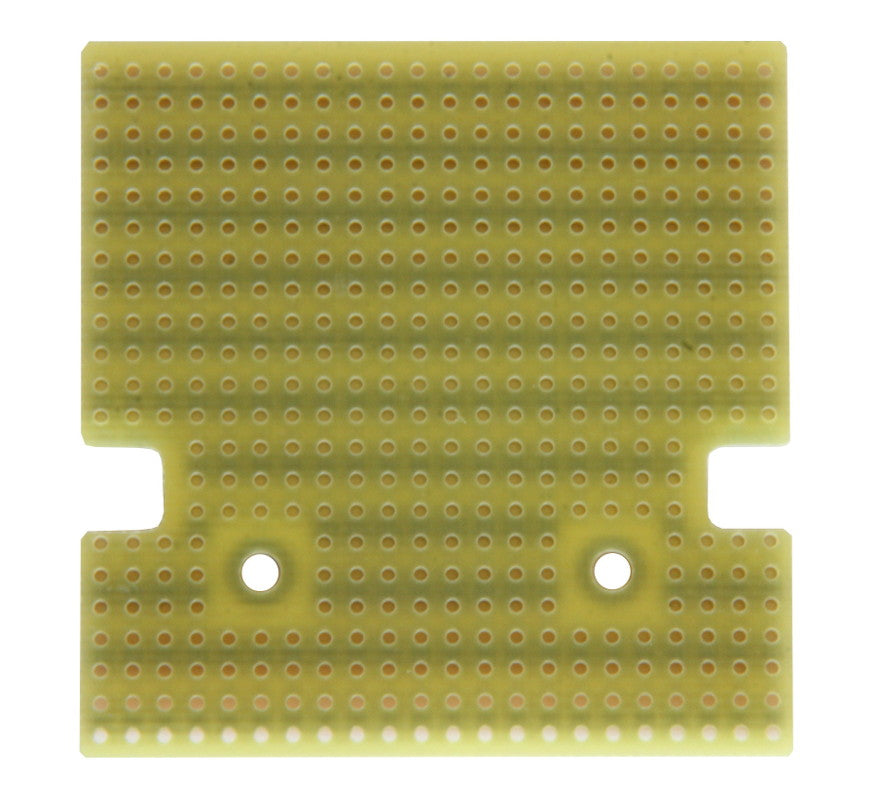

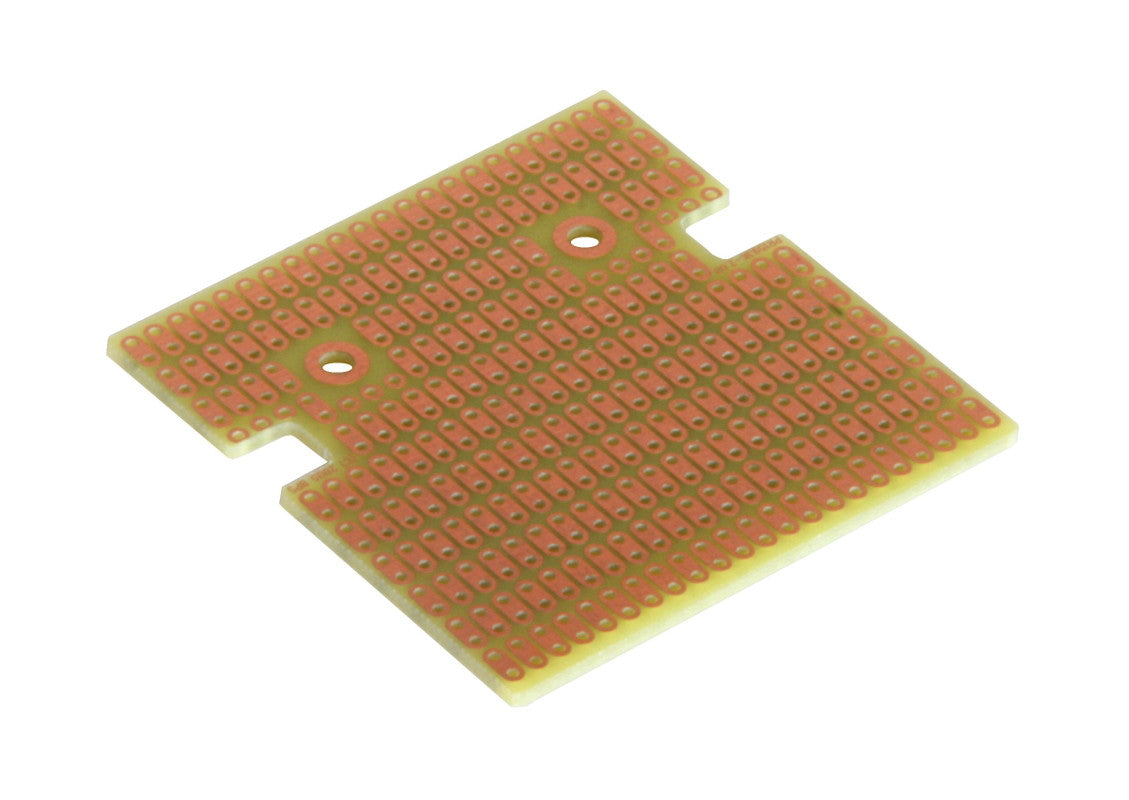

The PR1593K is a prototyping circuit board (PCB) designed to fit the Hammond 1553K hand-held plastic enclosure It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area It can be used as a stand-alone prototyping board, or installed in a Hammond 1593K enclosure.

Features and Benefits:

    •Single-sided high-quality FR4 glass-epoxy circuit board..

    •Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible..

    •0.042" holes are drilled on 0.1" (2.54mm) centers. 2 mounting holes. Screws provided..

    •PCB Size 2.30 x 2.26 in (58.4 x 57.4 mm).

Specifications:

 PCB Size: 2.30 x 2.26 in (58.4 x 57.4 mm)
 Material: FR4 glass-epoxy
 Copper Weight: 1oz/ft2
 Hole Size: 0.042"
 Hole Centers: 0.1" (2.54mm)
 Mounting Holes: 2 mounting holes
 Screws: Provided
