PR1590BB Prototyping Circuit Board for Hammond 1590BB Enclosure

PR1590BB Prototyping Circuit Board for Hammond 1590BB Enclosure

SKU: PR1590BB Download PDF

Now $7.25
BEFORE   Now $7.25
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

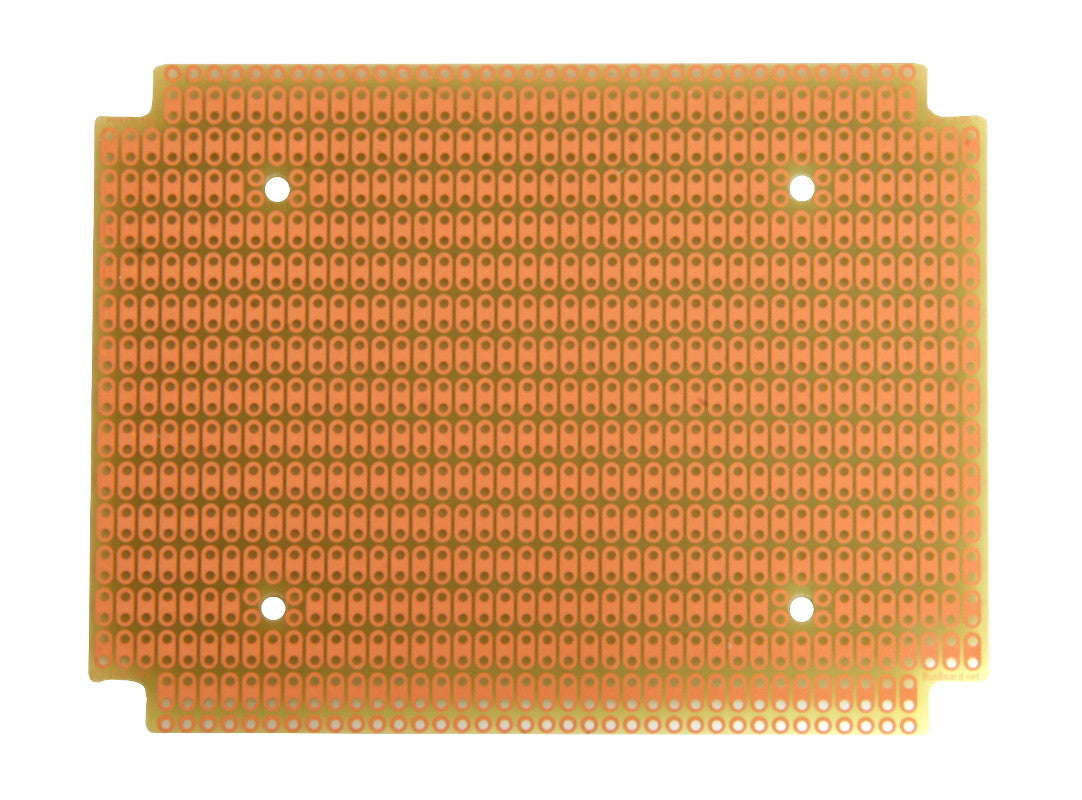

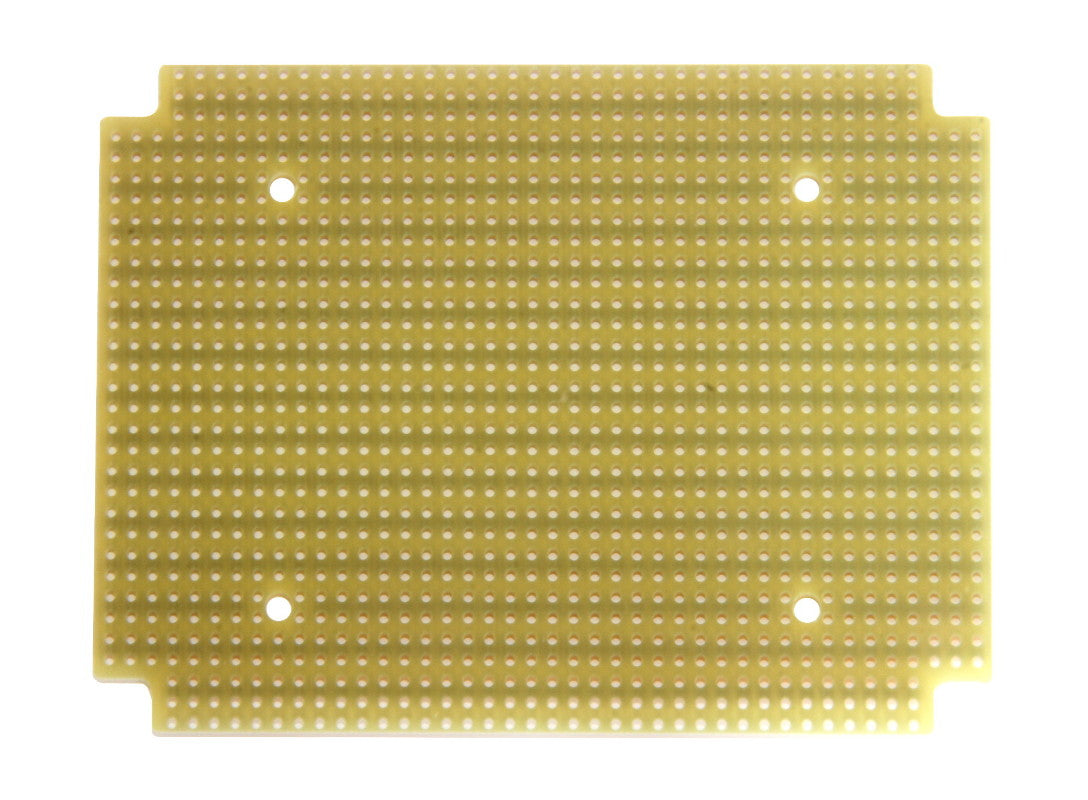

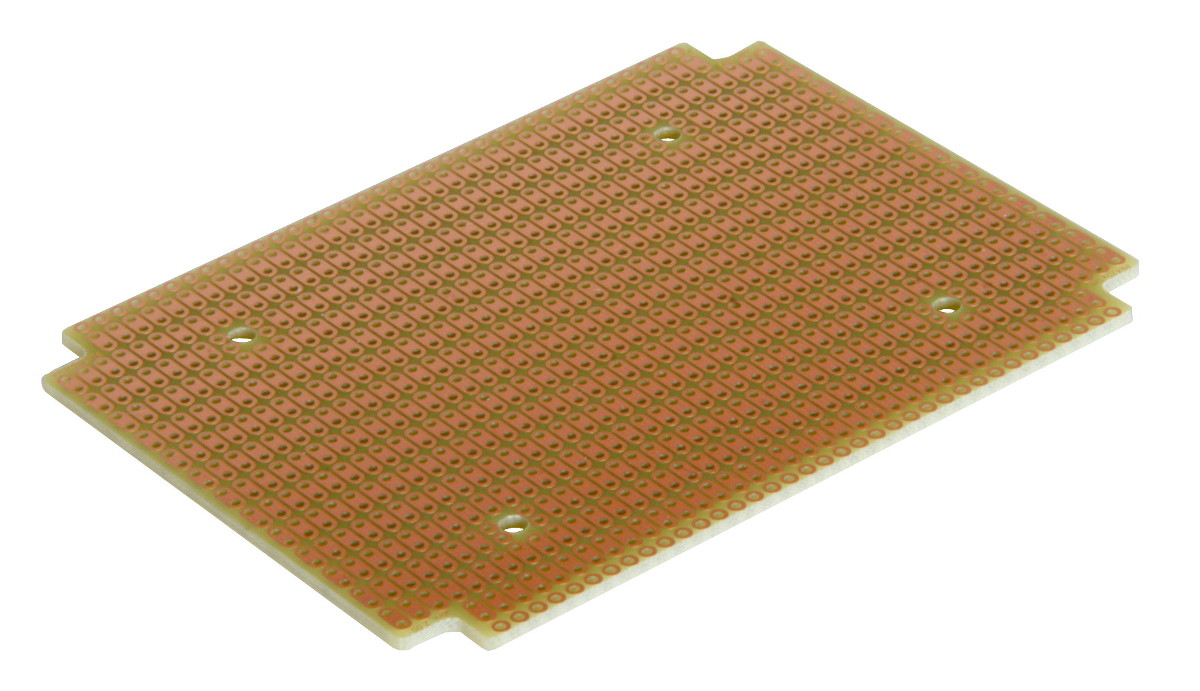

The PR1590BB is a prototyping circuit board (PCB) designed to fit the Hammond 1590BB die-cast aluminum enclosure It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area It can be used as a stand-alone prototyping board, or installed in a Hammond 1590BB enclosure.

Features and Benefits:

    •Single-sided high-quality FR4 glass-epoxy circuit board..

    •Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering..

    •Lead free and RoHS compatible..

    •0.042" holes are drilled on 0.1" (2.54mm) centers..

    •4 mounting holes..

Specifications:

 PCB Size: 3.20 x 4.25 in (81.3 x 108.0 mm)
 Copper Weight: 1oz/ft2
 Hole Size: 0.042"
 Mounting Holes: 4
 RoHS Compliance: Lead free and RoHS compatible
