PR1590B Prototyping Circuit Board

PR1590B Prototyping Circuit Board

SKU: PR1590B Download PDF

Now $4.46
BEFORE   Now $4.46
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

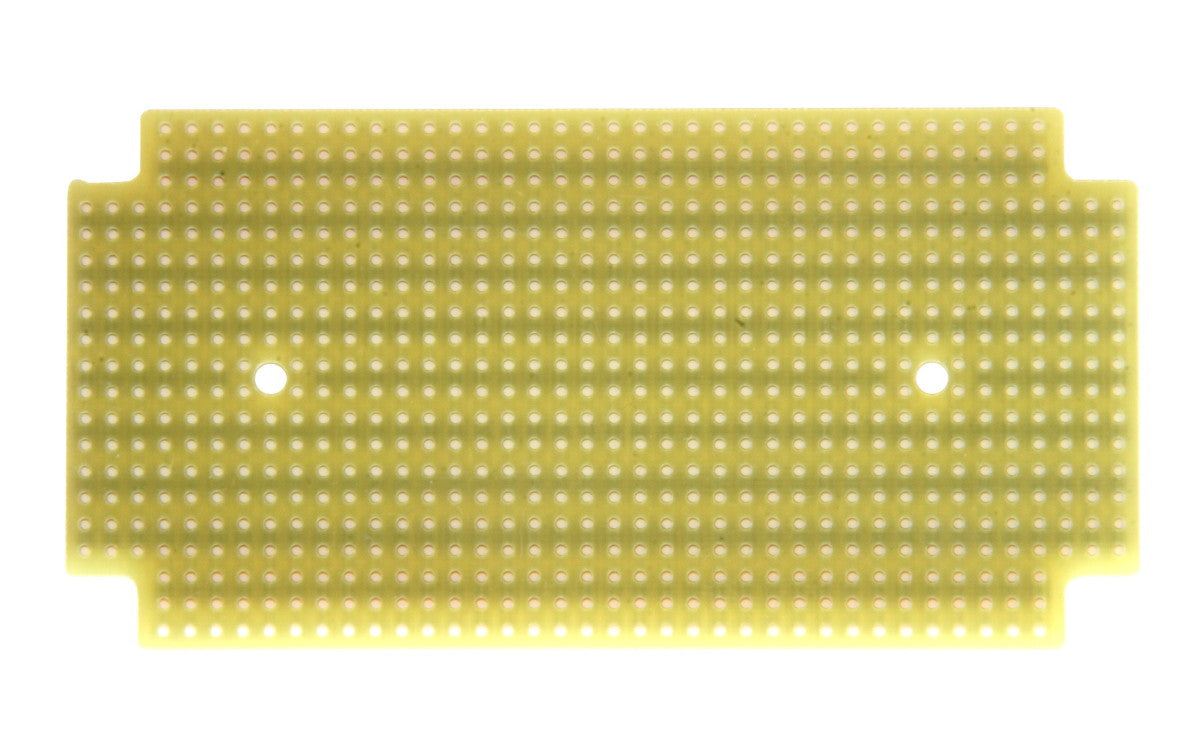

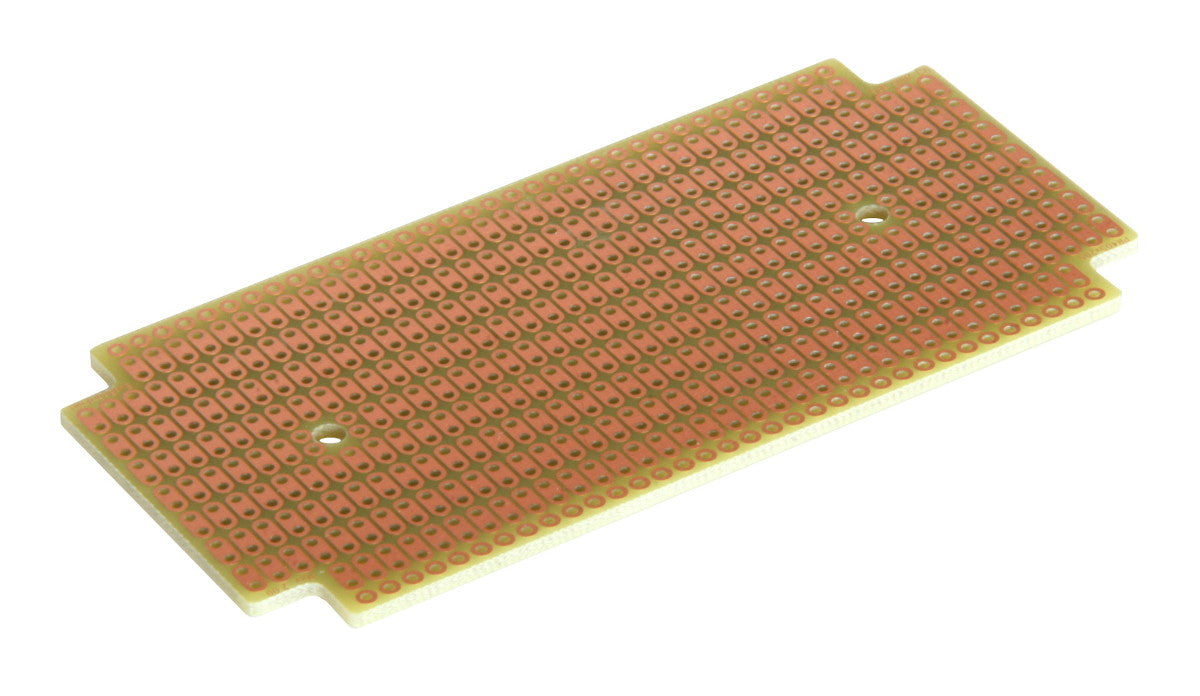

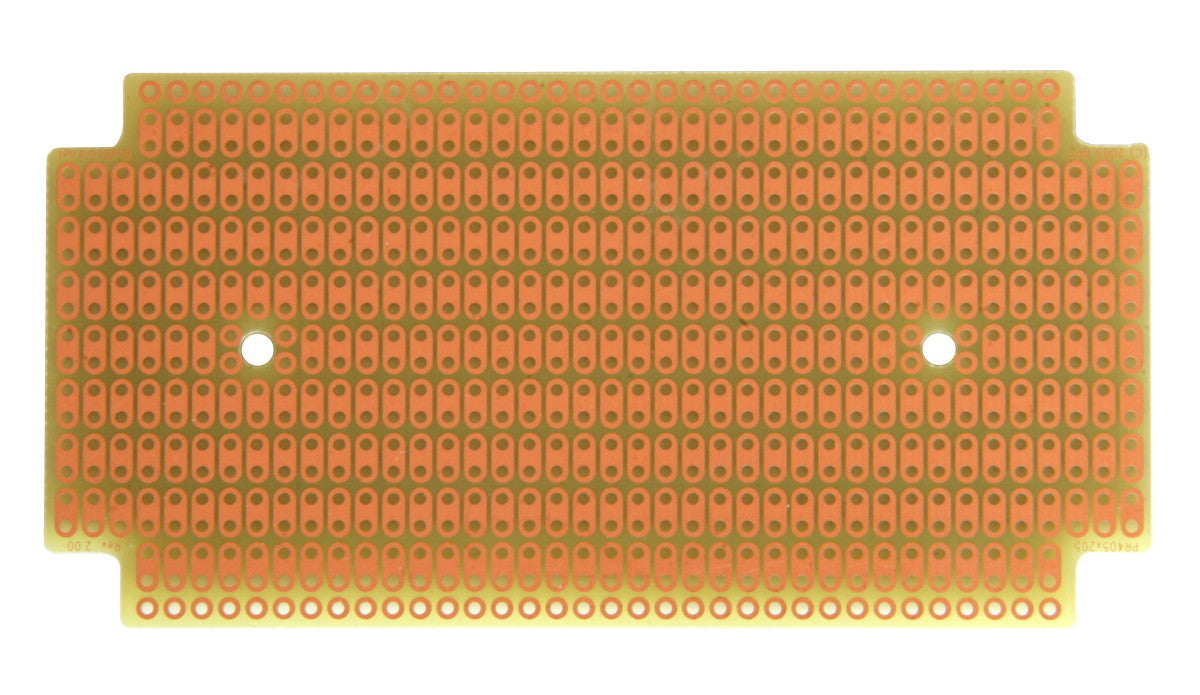

The PR1590B is a prototyping circuit board (PCB) designed to fit the Hammond 1590B die-cast aluminum enclosure It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area It can be used as a stand-alone prototyping board, or installed in a Hammond 1590B enclosure.

Features and Benefits:

    •Single-sided high-quality FR4 glass-epoxy circuit board..

    •Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible..

    •0.042" holes are drilled on 0.1" (2.54mm) centers. 2 mounting holes..

Specifications:

 PCB Size: 2.05 x 4.05 in (52.1 x 102.9 mm)
 Copper Weight: 1oz/ft2
 RoHS Compliance: Lead free and RoHS compatible
 Hole Size: 0.042"
 Hole Center Distance: 0.1" (2.54mm)
