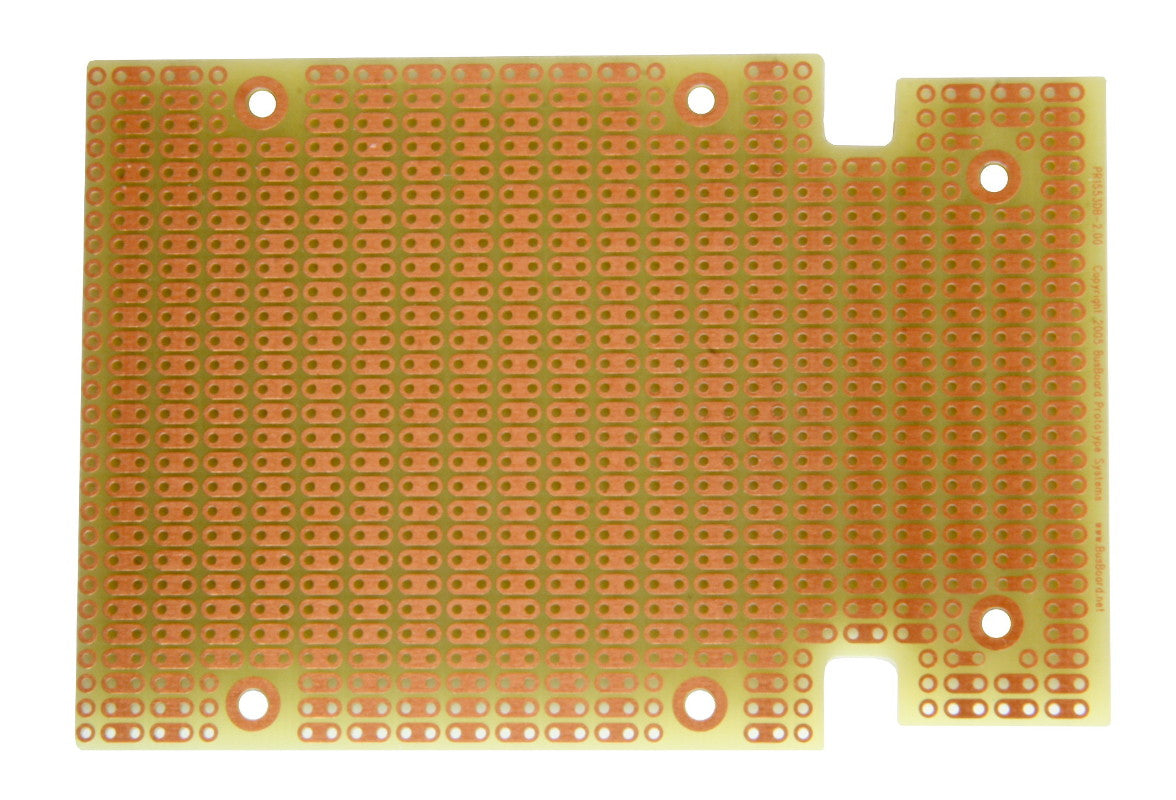

PR1553DBAT Prototyping Circuit Board

Description:

The PR1553DBAT is a prototyping circuit board (PCB) designed to fit the Hammond 1553DxxBAT hand-held plastic enclosure (with battery compartment) It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area It can be used as a stand-alone prototyping board, or installed in a Hammond 1553DxxBAT enclosure.

Features and Benefits:

•Single-sided high-quality FR4 glass-epoxy circuit board..

•Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

•1oz/ft2 copper with an anti-tarnish coating for easy soldering..

•Lead free and RoHS compatible..

•0.042" holes are drilled on 0.1" (2.54mm) centers..

•6 mounting holes. Screws provided..

•PCB Size 4.18 x 2.85in (106.2 x 72.4mm).
