PR1553B Prototyping Circuit Board for Hammond 1553B Enclosure

PR1553B Prototyping Circuit Board for Hammond 1553B Enclosure

SKU: PR1553B   Download PDF

Qty:
Now $7.62   Web pricing policy
BEFORE   Now $7.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

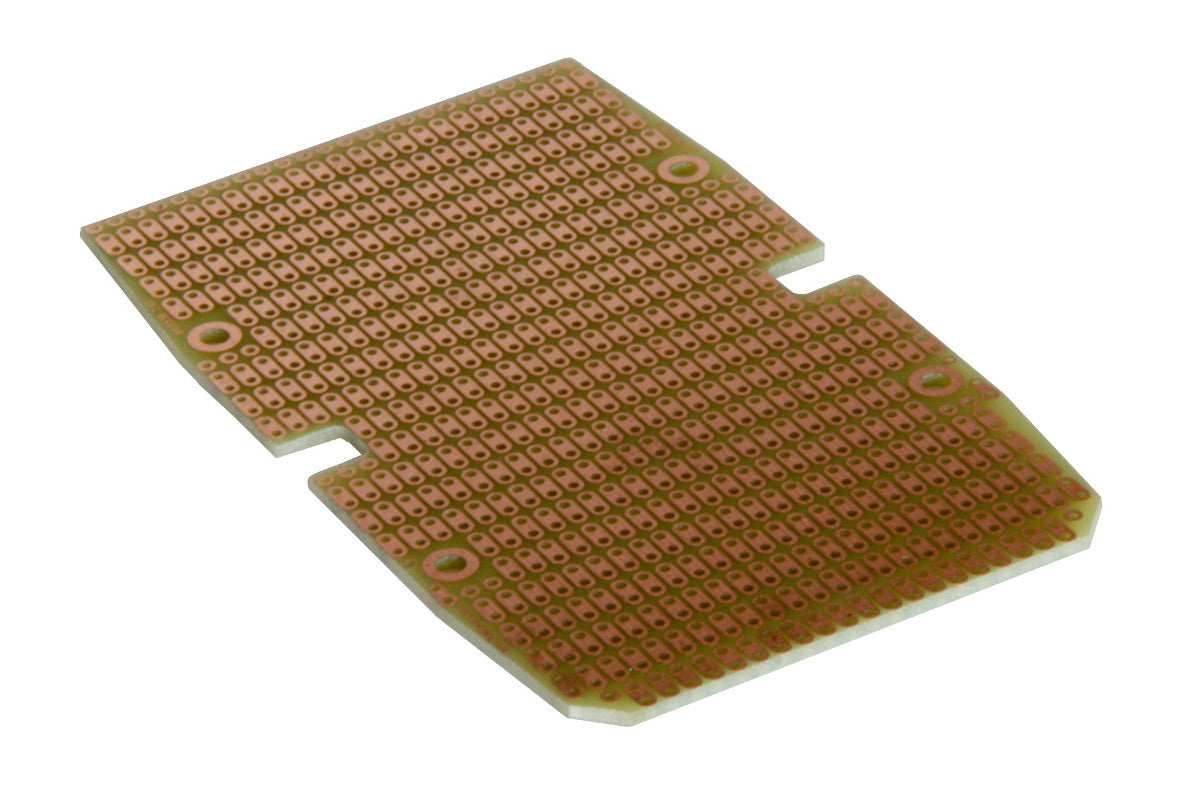

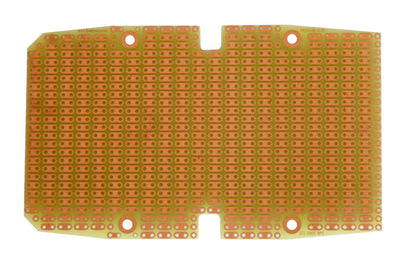

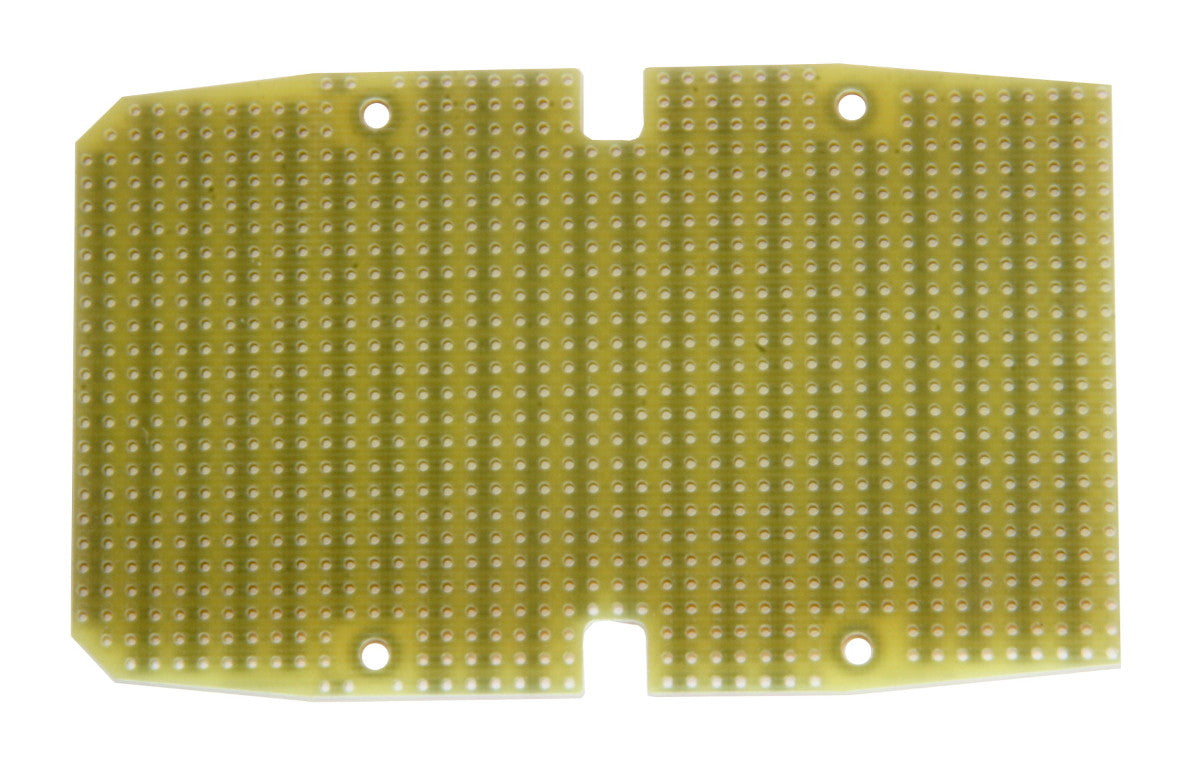

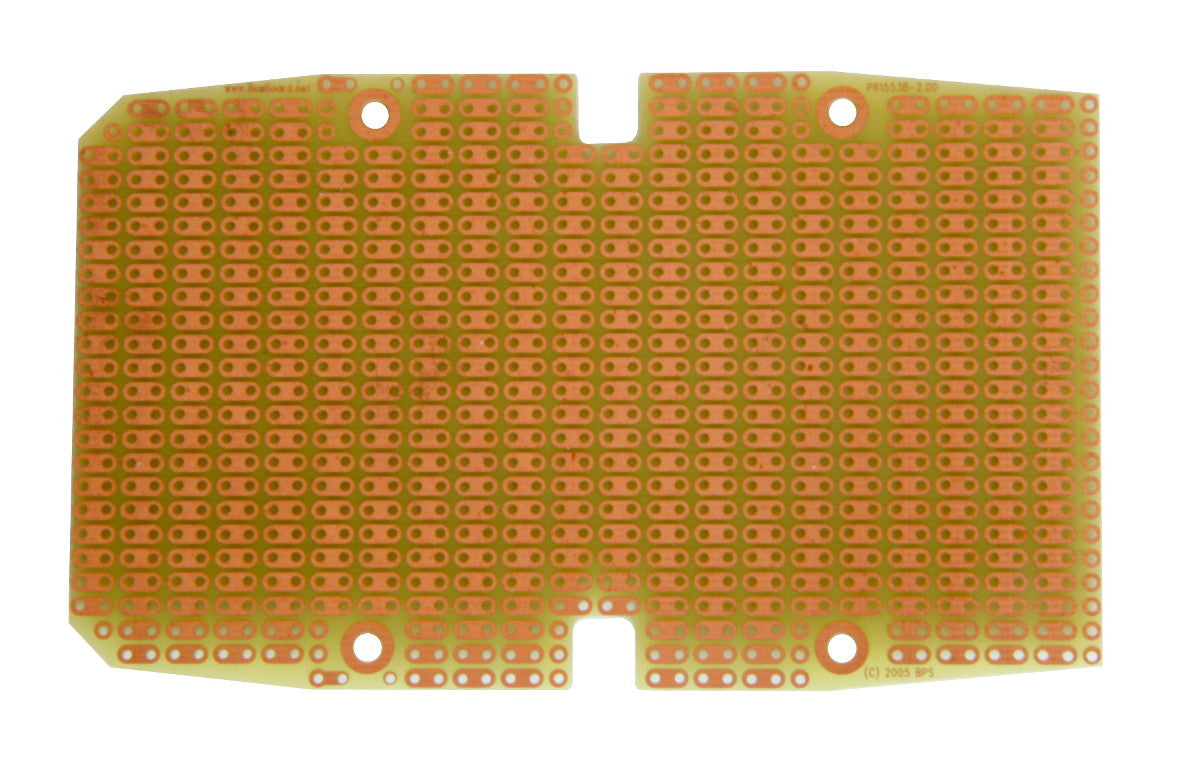

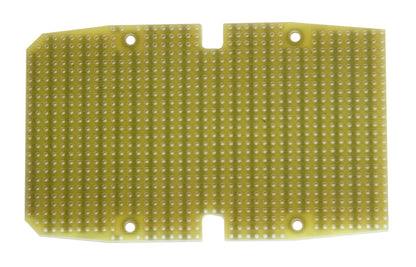

The PR1553B is a prototyping circuit board (PCB) designed to fit the Hammond 1553B hand-held plastic enclosure It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area It can be used as a stand-alone prototyping board, or installed in a Hammond 1553B enclosure.

Features and Benefits:

    •Single-sided high-quality FR4 glass-epoxy circuit board..

    •Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering..

    •Lead free and RoHS compatible..

    •0.042" holes are drilled on 0.1" (2.54mm) centers..

    •4 mounting holes. Screws provided..

    •PCB Size 4.30 x 2.60in (109.2 x 66mm).

Specifications:

 PCB Size: 4.30 x 2.60in (109.2 x 66mm)
 Material: FR4 glass-epoxy
 Copper Weight: 1oz/ft2
 Hole Size: 0.042"
 Hole Centers: 0.1" (2.54mm)
 Mounting Holes: 4
