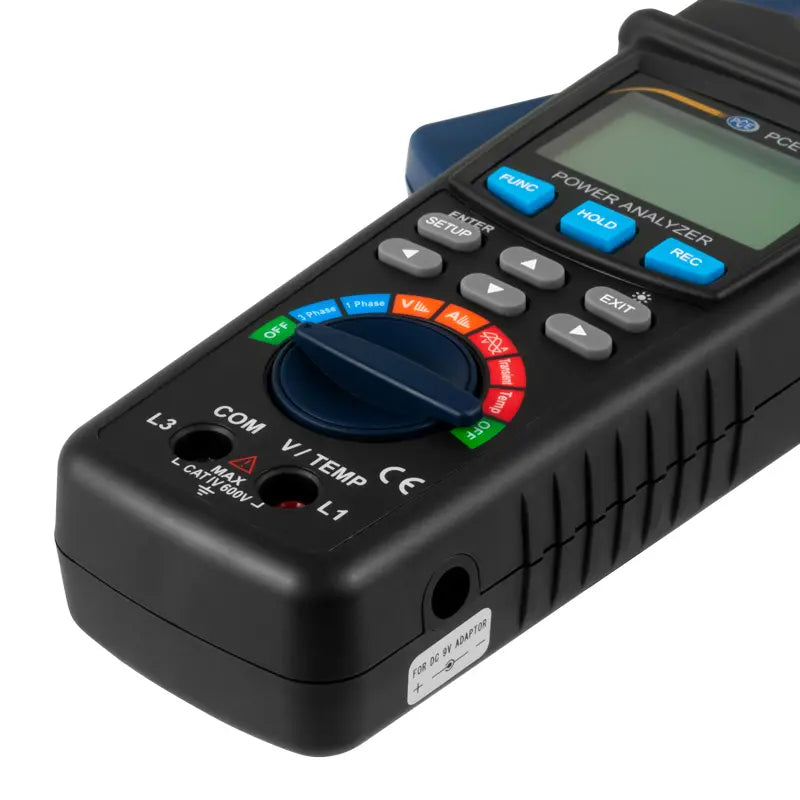

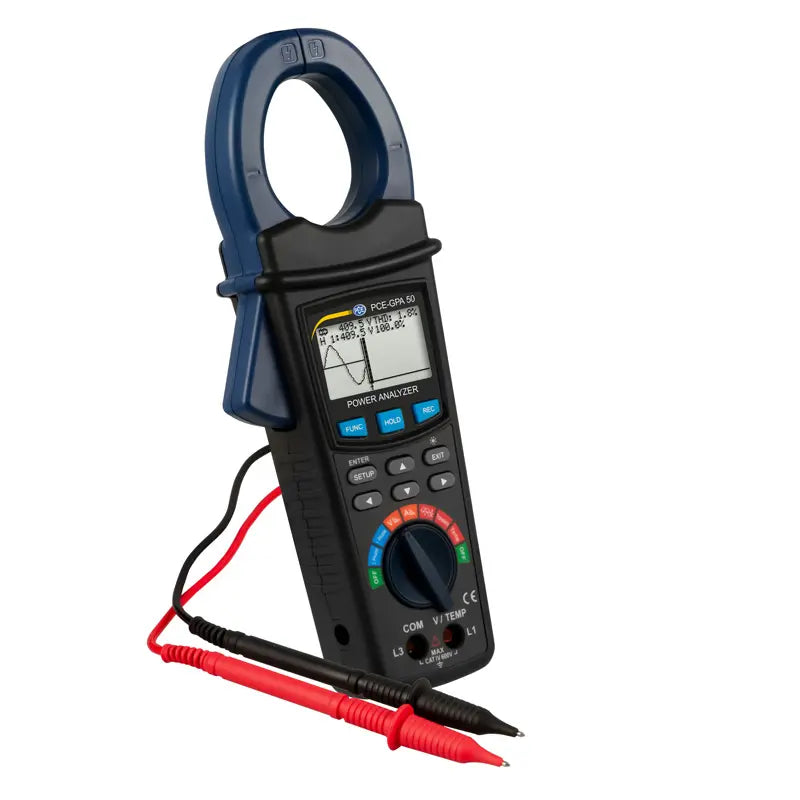

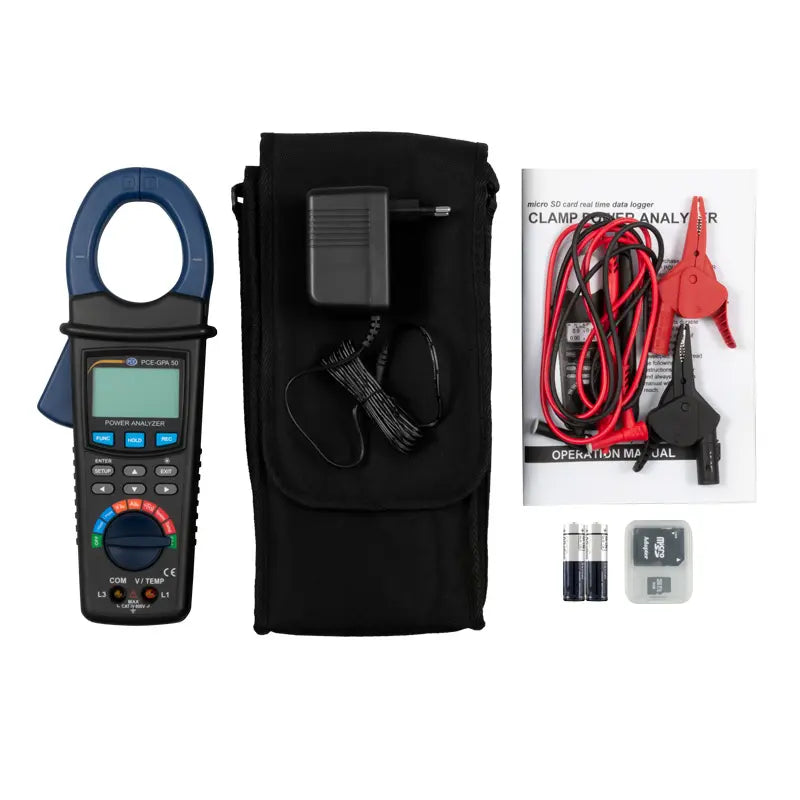

PCE-GPA 50 - 2000A Clamp Meter with Graphic Display and Data Storage

SKU: SKU: PCE-GPA 50 Download PDF

Select a Variant:

PCE-GPA 50 - 2000A Clamp Meter with Graphic Display and Data Storage

SET THE QTY:

Now $896.00 Web pricing policy

~~BEFORE $0.00~~ Now $896.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

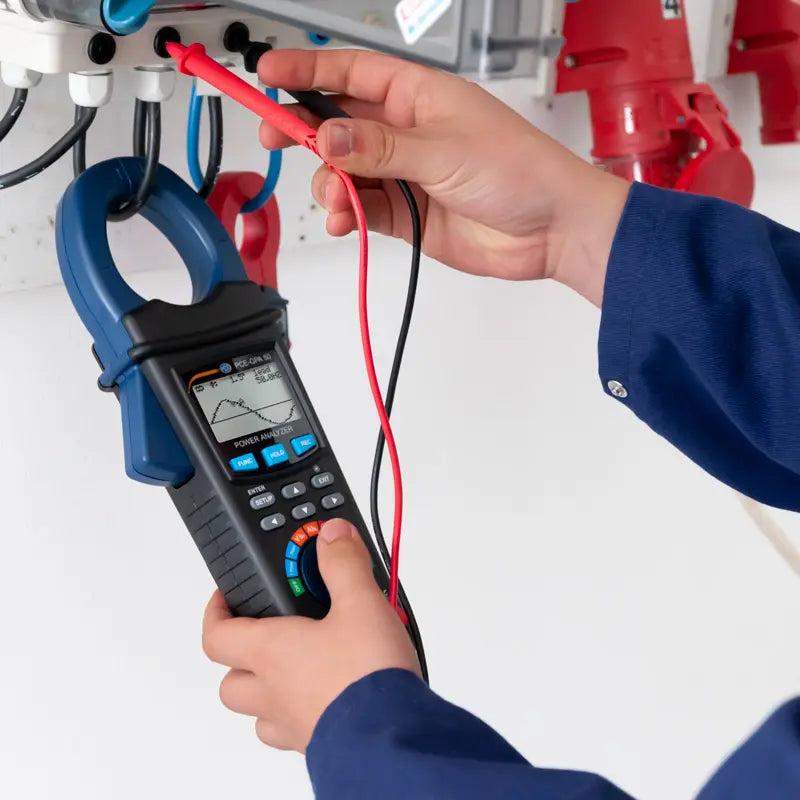

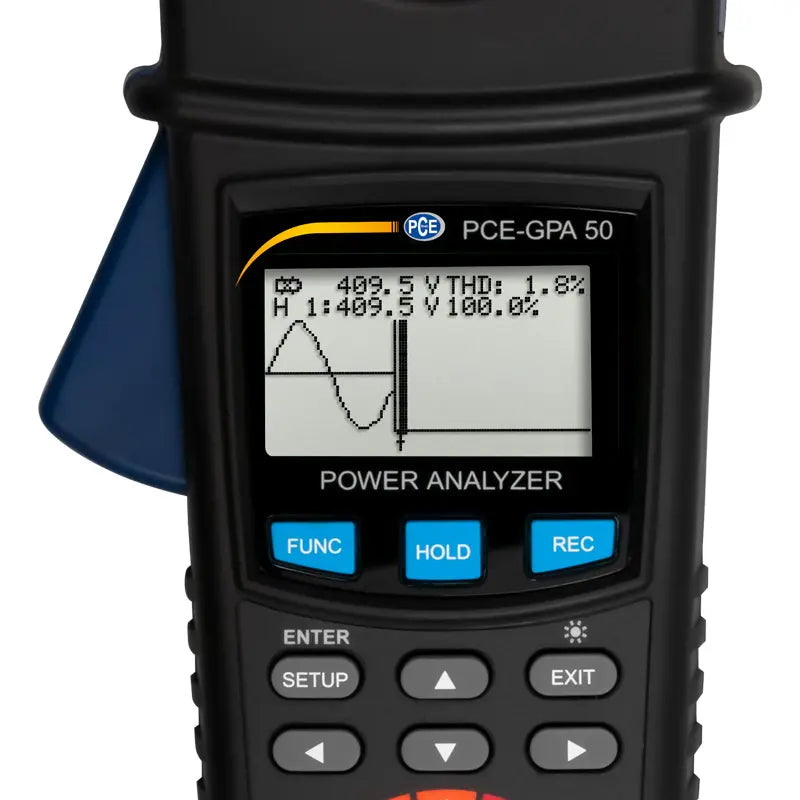

Introducing the PCE-GPA 50 Current Clamp, an essential tool for measuring currents in both 1-phase and 3-phase systems, with an impressive measuring capability of up to 2000 A This versatile clamp not only provides true RMS measurements but also offers power measurement and harmonic analysis features Equipped with a vibrant graphic display, it showcases both numerical values and waveform visuals for clear understanding of phase currents.

Beyond current measurement, this device is also capable of voltage measurements, allowing for the calculation of effective, apparent, and reactive power using the phase angle The PCE-GPA 50 goes further by assessing various network parameters, including energy consumption, power factor, and harmonic components Additionally, its data logging function allows measurements to be conveniently stored on a micro SD card for easy access and analysis.

This clamp can be powered either by two 15V AA batteries or via a power supply for extended use during long-term assessments Perfect for professionals in need of reliable, in-depth electrical analysis.

Features and Benefits:

•Graphic display.

•Data logger on Micro-SD card.

•Measurement for 1 and 3 phases.

•Temperature measurement with thermocouple.

•Voltage measurement 10V ... 600V AC RMS.

•Current measurement 5 ... 2000 A AC RMS.

•Current clamp opening 50 mm.

•Harmonic distortion up to the 50th order.

Specifications:

Type of measurement	AC voltage AC V
Measuring range	10 ... 600V
Resolution	0.1V
Accuracy	± (0.5% ... 3 digits)
Peak to peak	0.1V
AC A	2100 A
< 100 A	0.01 A
< 200 A	± (1% + 0.5 A)
< 1000 A	0.1 A
> 200 A	± (1% + 5 A)
> 1000 A	1 A
± (5% + 30 digits)
Power factor (PF)	0 ... 1
0.001
± 0.04
Phase angle	-180° ... 180°
0.1°
± 1° x PF
Frequency	45 ... 65 Hz
0.1 Hz
± 0.2 Hz
Active, blind & apparent power	0 ... 9,999 m
0.1 ... 0.001 M
± (1.5% + 20 digits)
Harmonic AC V	1 ... 20th order
Harmonic AC A	1 ... 20th order
± (2% + 5 digits)
≤ 1000 A	0.1 A
21 ... 50 order	0.1%
± (4% + 10 digits)
Absolute harmonic distortion	0 ... 20%
0.1%
20.1 ... 100%	0.1%
± (6% + 10 digits)
Temperature type K	-100 ... 199.9°C / -148 ... 391.8°F
0.1°C / 0.18°F
± (1% + 1°C / 1.8°F)
200 ... 1300°C / 392 ... 2372°F	1°C / 1.8°F
Display	Graphic LCD
AC V input impedance	10 MOhm
Frequency range	40 Hz ... 1 kHz
Current Probe Calibrated frequency	45 ... 65 Hz
Overload protection	AC V: 720V RMS
Data storage	Micro SD card
Refresh rate	1 second
Storage rate	2 ... 7200s
Storage format	XLS
Interface	Serial interface for live presentation to PC (SOFT-LUT-USB is required)
Power supply	2 x 1.5V AA battery / 9V / 800-mA power supply
Current consumption	60-mA DC
Jaw Capacity	50 mm
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Dimensions	280 x 106 x 47 mm / 11 x 4.2 x 1.9 in
