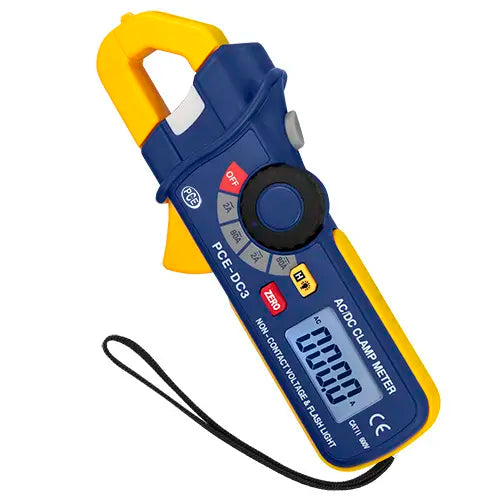

PCE-DC3 - Compact Clamp Meter with Non-Contact Voltage Tester and Illumination

PCE-DC3 - Compact Clamp Meter with Non-Contact Voltage Tester and Illumination

SKU: SKU: PCE-DC3   Download PDF

Select a Variant:
  • PCE-DC3 - Compact Clamp Meter with Non-Contact Voltage Tester and Illumination
Qty:
Regular price Now $145.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $145.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile clamp-on tester designed for accurately measuring AC/DC currents with exceptional precision This clamp meter boasts a non-contact voltage testing feature, making it easy to identify voltage potentials without direct contact Additionally, it includes an integrated torch/flashlight, perfect for illuminating your measurement area in dimly lit environments Compact and easy to handle, this amperage clamp is ideal for tight spaces and hard-to-reach locations.

The device features a large illuminated display that enhances readability in dark settings, such as switch cabinets and cable ducts The non-contact voltage tester not only aids in recognizing potential voltage hazards but also serves as a reliable tool for pinpointing cable breaks in various types of cables, including cable reels, extension cords, and appliance connections.

Features and Benefits:

    •4 digit LCD display with backlighting.

    •AC/DC current measurement up to 80 Amps.

    •Save function.

    •DCA zero rest function.

    •Current tester, non-contact.

    •Integrated light to illuminate measured area.

    •Automatic range selection.

    •Automatic disconnect.

    •Clamp diameter: 18 mm / 0.7 in.

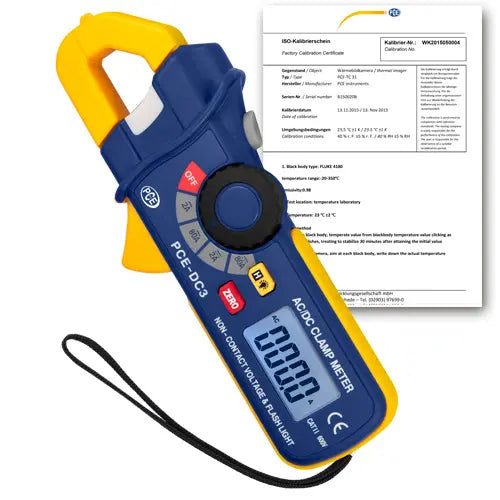

    •Incl. ISO Calibration Certificate.

Specifications:

 AC current Range / Resolution / Accuracy 2 A / 1-mA / ± 2.8% + 10 dgt; 80 A / 100-mA / ± 3.0% + 8 dgt
 DC current Range / Resolution / Accuracy 2 A / 1-mA / ± 3.0% + 10 dgt; 80 A / 100-mA / ± 3.0% + 8 dgt
 AC overload protection (Non-contact) 100V AC up to 600V AC 50 / 60 Hz
 Flashlight illumination White LED
 Conductor diameter 18 mm / 0.7 in maximum
 Display 3 2/3 digit LCD display with backlighting
 Power 2 - 1.5V AAA batteries
 Casing PVC
 Dimensions 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in
 Standards EN61010-1; CAT II / 600V; EN61010-2-032; CAT III / 300V
