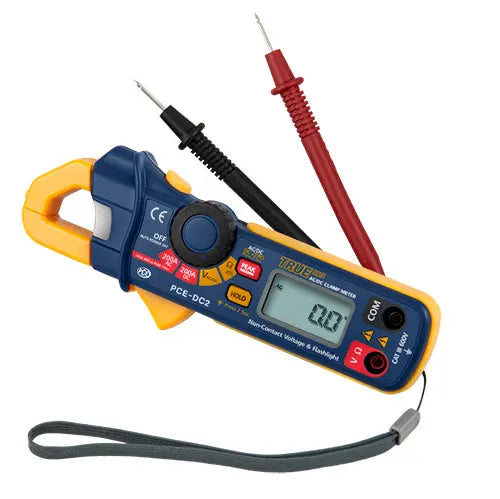

PCE-DC2 - Compact AC/DC Clamp Tester with Backlit Display & 18mm Aperture

PCE-DC2 - Compact AC/DC Clamp Tester with Backlit Display & 18mm Aperture

SKU: PCE-DC2   Download PDF

Select a Variant:
  • PCE-DC2 - Compact AC/DC Clamp Tester with Backlit Display & 18mm Aperture
Qty:
Now $132.00   Web pricing policy
BEFORE   $0.00 Now $132.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-DC2 clamp-on tester, a versatile tool for accurately measuring AC/DC current, AC voltage, and resistance This device comes complete with an ISO Calibration Certificate and features a maximum jaw opening of 18 mm (07 in) for easy attachment Illuminate your measurement points effortlessly with built-in white LEDs and take advantage of the non-contact voltage testing capability for added safety.

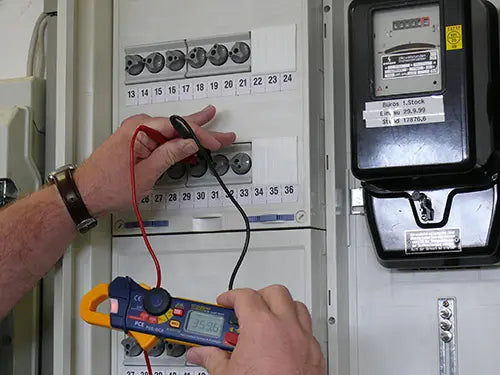

Its compact design makes it ideal for tight spaces, while the backlit display ensures clarity even in low-light environments like electrical cabinets or cable ducts This tester effectively aids in voltage detection, allowing you to pinpoint hazardous power lines and identify breaks in them.

Features and Benefits:

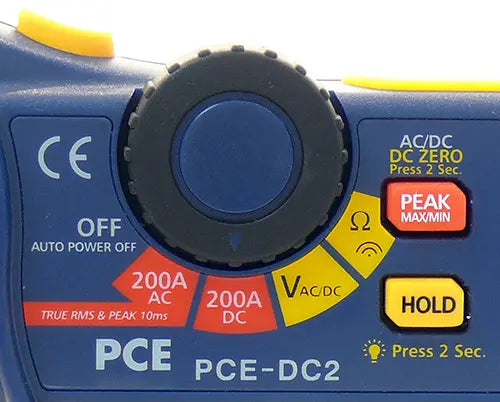

    •LCD display with 3 2/3 positions and backlight.

    •Measures AC/DC current, AC voltage, and resistance.

    •Includes memory function and zero reset for DCA.

    •Non-contact voltage testing functionality.

    •Measurement point illumination.

    •Automatic range selection.

    •Auto shut-off feature.

    •Clamp aperture of 18 mm / .7 in.

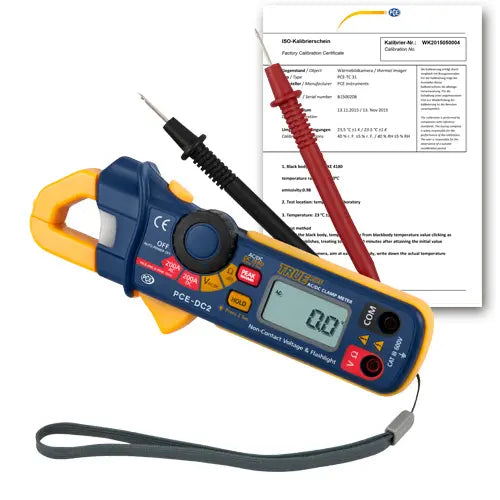

    •Includes ISO Calibration Certificate.

    •Ideal for measuring AC/DC current in various electrical applications including detection of power lines and testing of electrical systems..

Specifications:

 Alternating current (50/60 Hz, TRMS) Measuring range 0 ... 200.0 A
 Alternating current (50/60 Hz, TRMS) Resolution 0.1 A
 Alternating current (50/60 Hz, TRMS) Accuracy ±(2.5 % + 8 digits)
 Direct current Measuring range 0 ... 200.0 A
 Direct current Resolution 0.1 A
 Direct current Accuracy ±(2.0 % + 5 digits)
 DC voltage Measuring range 0 ... 600.0 V
 DC voltage Resolution 0.1 V
 DC voltage Accuracy ±(1.0 % + 2 digits)
 AC voltage (50/60 Hz, TRMS) Measuring range 0 ... 600.0 V
 AC voltage (50/60 Hz, TRMS) Resolution 0.1 V
 AC voltage (50/60 Hz, TRMS) Accuracy ±(1.5 % + 8 digits)
 Resistance Measuring range 0 ... 999.9 Ω
 Resistance Resolution 0.1 Ω
 Resistance Accuracy ±(1.5 % + 8 digits)
 Current clamp opening 18 mm / 0.7"
 Continuity test <30Ω, test current <0.5 mA
 Battery indicator "BAT" low battery indicator
 Measuring range exceeded "OL" display when measuring range is exceeded
 Measurement rate 10 Hz for the reading, 40 Hz for the bar graph at DC, DC voltage and resistance measurement
 Input impedance 1.0 MΩ when measuring the voltage
 Display LC display with backlight
 Peak measurement response time <10 ms (PEAK Hold)
 Response time of the largest and smallest measured value <50 ms (MAX / MIN hold)
 Operating conditions -10 ... 50 °C / 14 ... 122 °F, max. 3000 m / 9842 ft above sea level
 Storage conditions -30 ... 60 °C / -14 ... 140 °F, max. 10,000 m / 32,808 ft above sea level
 Ambient humidity max. 90 % (0 ... 30 °C / 32 ... 86 °F), max. 75 % (30 ... 40 °C / 86 ... 104 °F), max. 45 % (40 ... 50 °C / 104 ... 122 °F)
 Power supply 2 x 1.5 V AAA batteries
 Automatic shutdown after 10 minutes without operation
 Degree of pollution 2
 Standards CAT III 600 V, CAT IV 300 V
 Dimensions 164 x 65 x 32 mm / 6.45 x 2.56 x 1.26"
