Description:

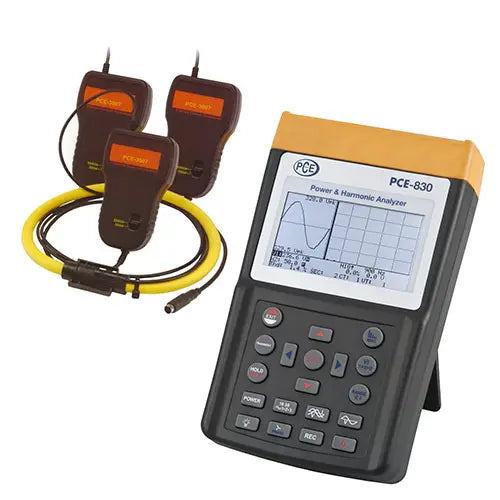

Introducing the PCE-830 Clamp on Tester, your go-to device for accurately measuring electrical quantities across one to three phases of alternating current (AC) This versatile instrument tracks key parameters including voltage, current, frequency, power, and harmonics, while also monitoring compliance with EN50160 standards by displaying harmonic values, interharmonics, and asymmetrics
The PCE-830 expertly identifies electrical disturbances such as interruptions, leaks, overloads, and transients (from 16 µs) along with their respective measurements.

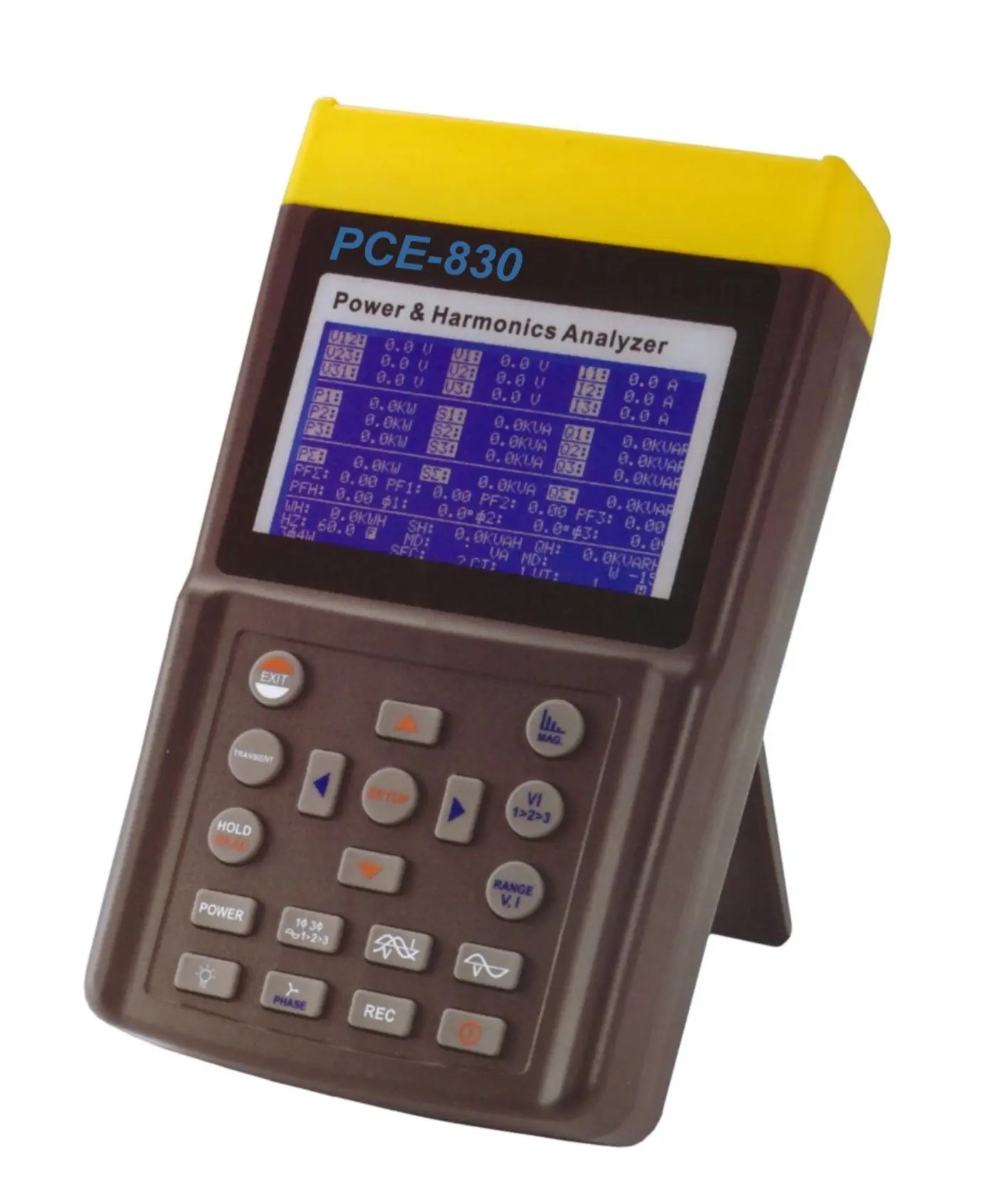

Featuring a high-resolution backlit LCD, it allows simultaneous viewing of up to 35 parameters for convenient analysis Users can connect up to three clips at once, enhancing measurement efficiency
In data logger mode, this tester offers impressive storage capabilities, able to save up to 17,470 readings across three phases and four conductors If a simpler setup with one phase and two conductors is utilized, it can retain up to 52,400 readings, categorized into 85 groups, making it perfect for prolonged monitoring tasks.
Additionally, collected data can easily be transferred to a computer for further processing with the included analysis software, ensuring comprehensive evaluation Although the device comes calibrated from the manufacturer, you have the option to purchase a laboratory calibration with an ISO-compliant certificate, either initially or when recalibration becomes necessary, providing added assurance of accuracy right from the start.
Features and Benefits:
•Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors.
•Measures effective real value (V 123 and I 123).
•Measures active power (W, KW, MW, GW).
•Measures apparent and reactive power (KVA, KVAR).
•Power Factor (PF), phase angle (Φ).
•Measures energy and work (Wh, KWh, KVARh, PFh).
•Measures current from 0.1 mA to 3000 A, allowing for the reserve power of a factory to be determined.
•Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors]).
•CT conditions (1 to 600) and PT (1 to 3000) are programmable.
•Indicates current wave forms and voltage overlap.
•512 KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings using the system of 3 phases / 4 conductors.
•Indicates wave forms, efficiency parameters, and harmonic distortion.
•Backlit LCD with dot matrix.
•Average power (AD in W, KW, MW).
•Maximum power (MD in W, KW, MW) with the programmable period.
•Analysis of harmonic distortion up to a curvature of 99.
•Indication of up to 50º form of harmonic wave.
•Indication of the wave form with maximum value (1024 readings / period).
•Analysis of absolute distortion (%THD-F).
•Diagram of graphic equilibrium with parameters of a 3 phase system.
•Detects up to 28 transistors (time and cycles) with a programmable threshold (%).
•Relation of 3 phases of voltage or asymmetrical current (VUR).
•Factor of 3 phases of voltage and asymmetrical current (d0%, d2%).
•USB port (optically insulated).
•Integrated timer and calendar to record data.
•Maximum diameter of the electrical conductor for the amp clamp: the PCE-6801 ~30 mm / 1.2 in, PCE-6802 ~55 mm / 2.2 in, PCE-3007 ~170 mm / 6.7 in.
Specifications:
| Measurement values | |
| Measurement ranges / resolution / accuracy | |
| Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1) | 10.0 W to 999.9 W / 0.1 W / ±1% of measurement range, 1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range, 10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range, 100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range, 1000 kW to 9999 kW / 1 kW / ±1% of measurement range |
| Current AC (50 Hz or 60 Hz, auto range select, TRMS) | 0 to 300 A / 0.1 A / ±1.0% of measurement range, 300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range, 1000 A to 3000 A / 1 A / ±1.0% of measurement range |
| Voltage AC (50 Hz or 60 Hz, TRMS) | 20.0 V to 500.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral), 20.0 V to 600.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral) |
| Harmonic distortion of AC voltage | 1º to 20º / 0.1% / ±1.0%, 21º to 49º / 0.1% / 4% of reading ±2.0%, 50º to 99º / 0.1% / 6% of reading ±2.0% |
| Harmonics of AC current in % | 1º to 10º / 0.1% / ±2%, 21º to 49º / 0.1% / ±6%, 50º to 99º / 0.1% / ±10% |
| Power Factor (PF) | 0.000 to 1.000 / 0.001 / ±0.04 |
| Phase angle (Phi) | 0° to 180° / 0.1° / ±2° |
| Total harmonic distortion | 0.0 to 20.0% / 0.1% / ±2%, 20.0% to 100% / 0.1% / ±6% of reading ±1%, 100% to 999.9% / 0.1% / ±10% of reading ±1% |
| Maximum measurement of AC voltage and current | 50 Hz / 19 µS / ±5% ±30 digits, 60 Hz / 16 µS / ±5% ±30 digits |
| Peak value measurement of AC voltage and current | 1.00 to 99.99 / 0.01 / ±5% ±30 digits |
| Frequency range in automatic mode | 45 Hz to 65 Hz / 0.1 Hz / 0.1 Hz |
| Memory | 512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors |
| Port | USB |
| Software and cable | included, for Windows 2000, XP, ME |
| Display | backlit LCD with dot matrix |
| Power | 8 AA batteries (Mignon) |
| Dimensions | 257 mm x 155 mm x 57 mm, 10.1 in x 6.1 in x 2.2 in |
| Operating conditions | max. 85% relative humidity, -10º C to 50º C / +14º F to +122º F |
| Type of protection / standards | IEC 61010, 600 V/CAT III |
