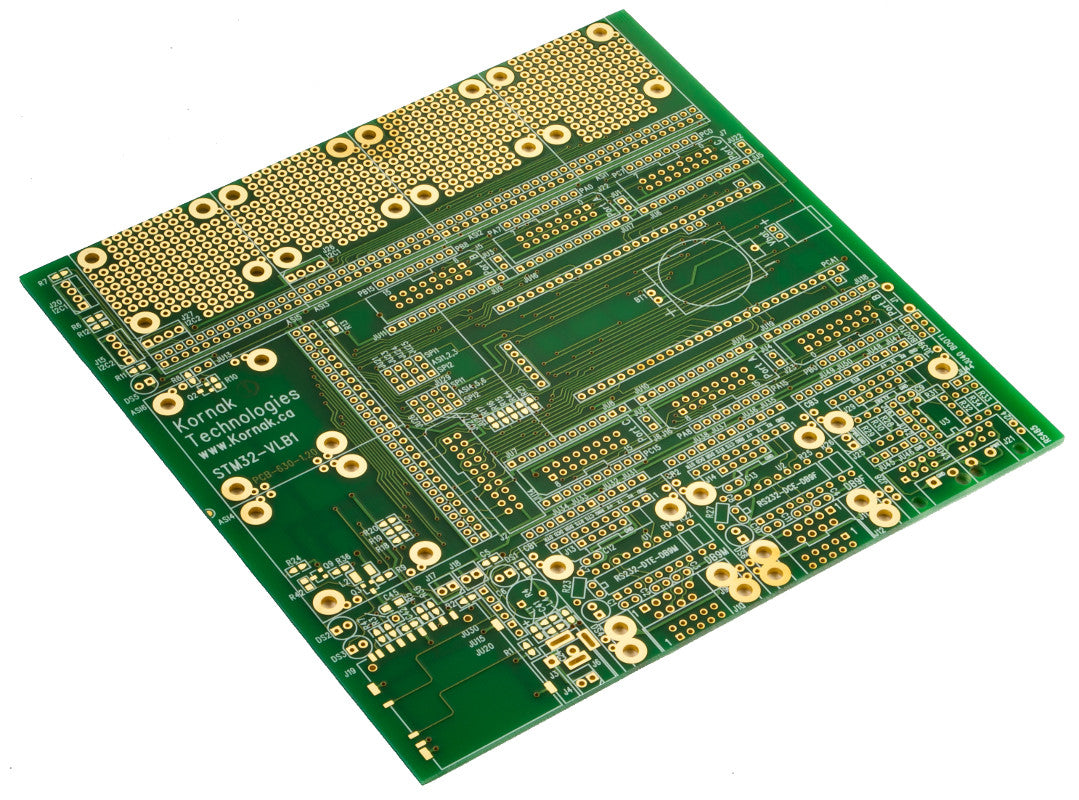

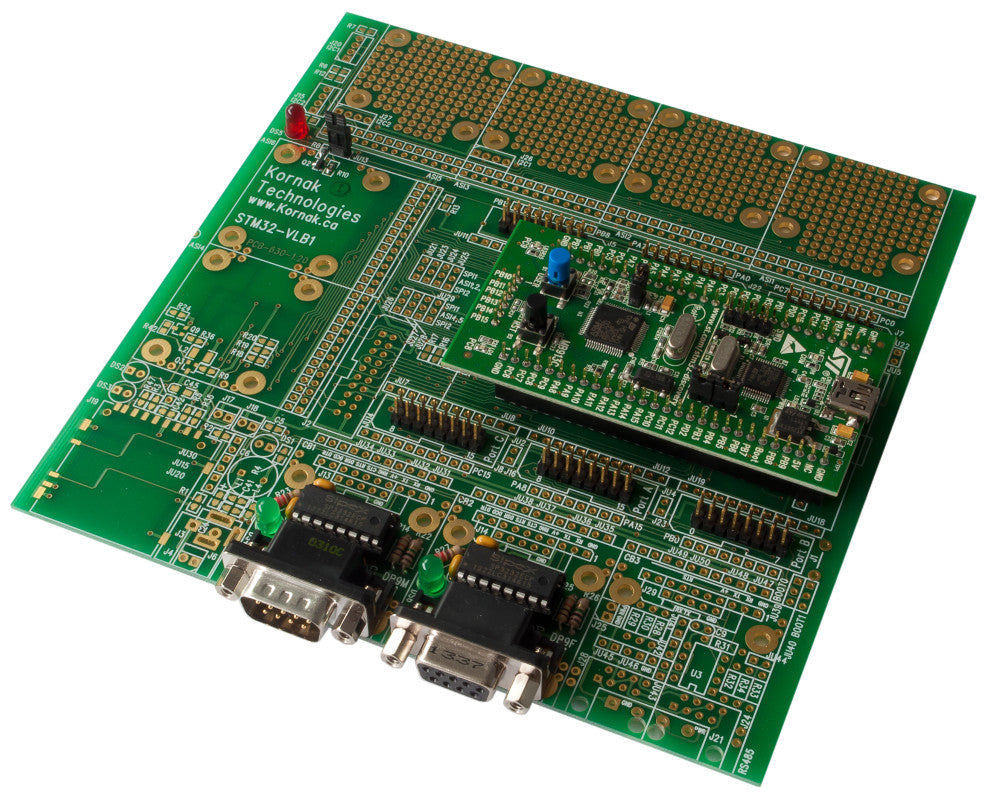

PCB-STM32-VLB1 STM32 Breakout Board

Description:

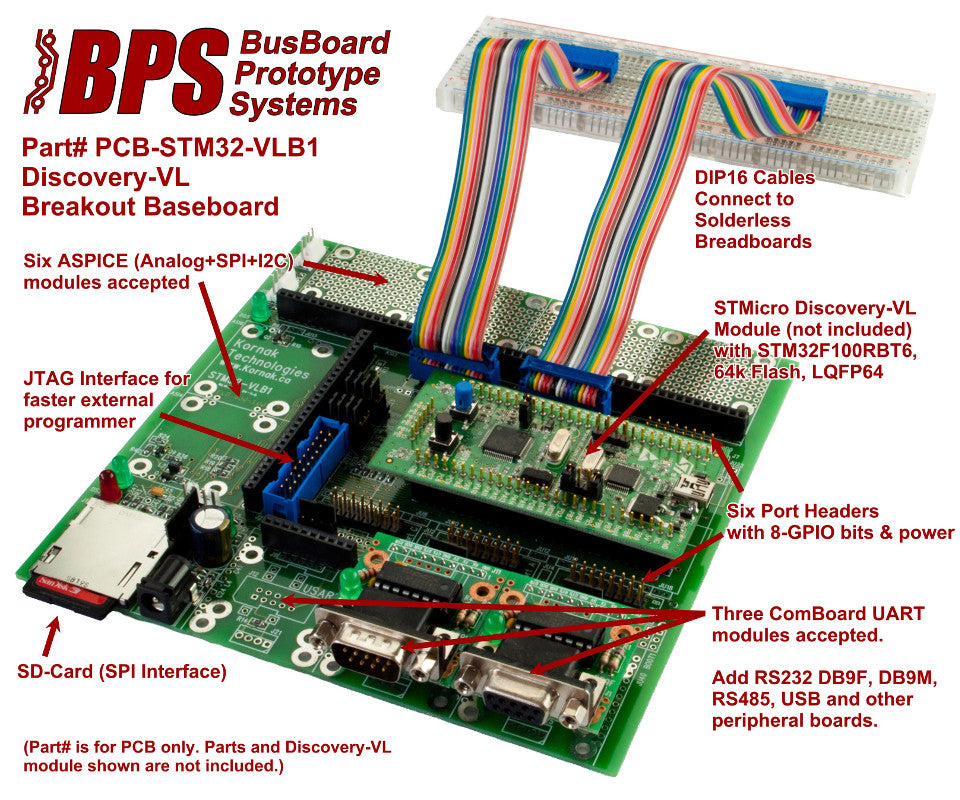

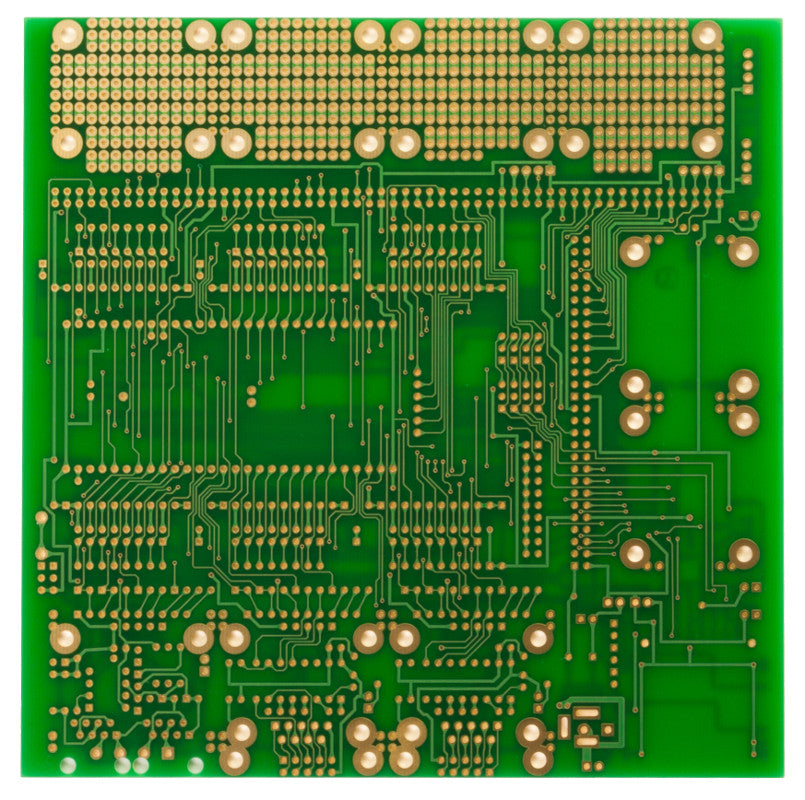

The STM32-VLB1 breakout board provides port connectors, USART, I2C, and SPI expansion headers to make it easy to prototype with the ST Micro Discovery VL board The Discovery VL module includes a STM32F100RBT6 microcontroller with 128k program flash, 8k RAM, in a LQFP64 package An on-board ST-LINK/V2 programmer allows code to be loaded and debugged via PC USB port Power comes from the Discovery board USB connector or a barrel connector.

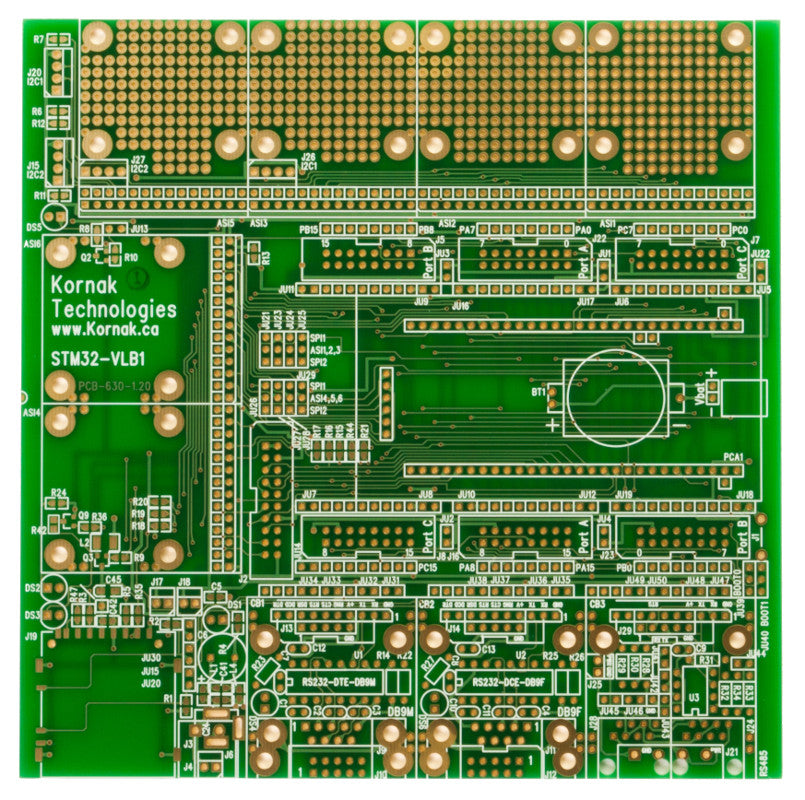

Six 2x8 headers are used for GPIO port expansion Each header has 8 data bits, 3V power, 5V power, ground, and 5 uncommitted pins for customization Three ComBoard module footprints allow RS232 or RS485 serial interfaces to be added and quickly changed Six ASPICE module footprints allow I2C, SPI or analog modules to be added Other footprints include: SD card with activity LED and power switch circuitry.

RTC CR2032 battery holder Barrel power connector and filter PCB-STM32-VLB1 is an unpopulated board and no parts are provided The BOM (bill of materials) and schematic diagram are available below to construct the board Soldering is required and prior experience with electronic assembly is recommended Thru-hole construction allows for easy assembly, maintenance, and modification.

Features and Benefits:

•STM32-VLB1 breakout board for the STMicro Discovery VL board with STM32F100RBT6 microcontroller.

•Six GPIO port headers providing 8 data bits and 3V/5V power.

•Three ComBoard footprints provide RS232 or RS485 USART interfaces.

•Six ASPICE board footprints provide I2C and SPI expansion signals on 14-pin headers.

•SD card connector footprint provided.

•Mostly thru-hole construction allows for easy assembly and expansion.

Specifications:
