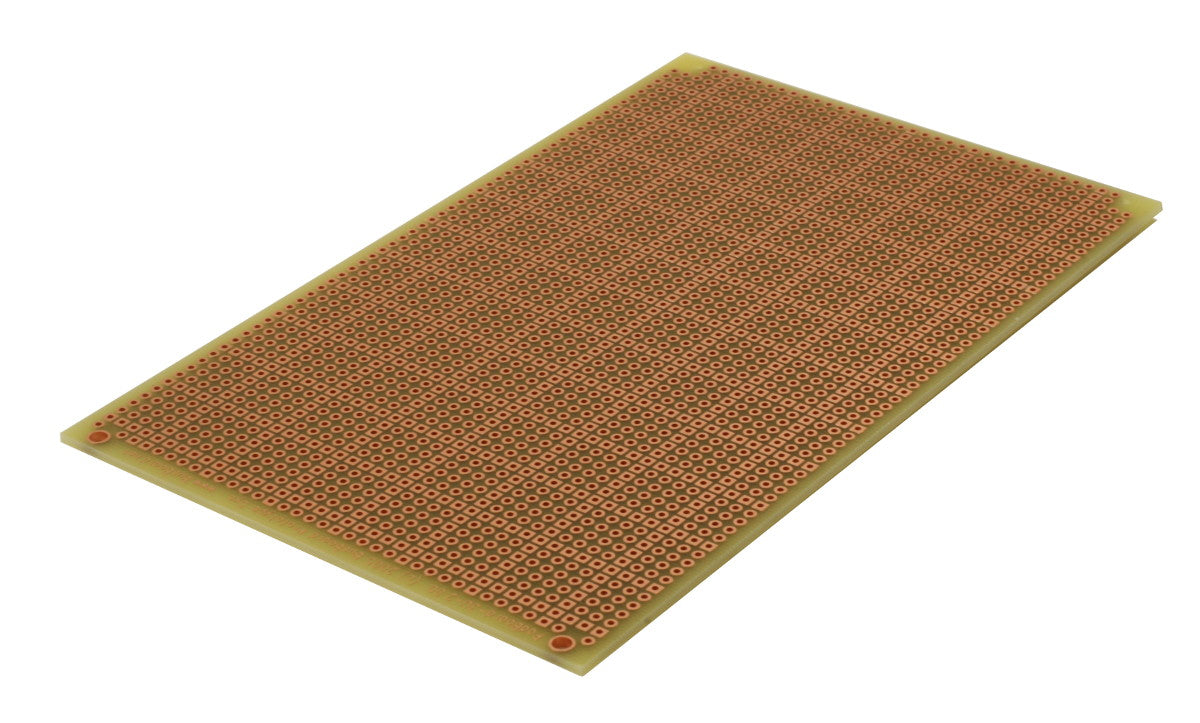

PAD3U PadBoard-3U Prototyping Circuit Board

Description:

The PadBoard-3U prototyping circuit board features a general purpose pad-per-hole pattern suitable for both analog and digital applications This double-sided board comes with plated holes, enabling components to be soldered on either side It includes a square pad every 5th hole for easy alignment of components on both sides Additionally, the board accommodates a 96 pin DIN-41612 VME connector for backplane or board-to-board applications and provides holes for ejector latches.

Features and Benefits:

•Pad-per-hole prototyping board with plated-thru holes for easy component alignment.

•Double-sided high-quality FR4 glass-epoxy circuit board allowing soldering on both sides.

•1oz/ft2 copper with anti-tarnish coating for improved soldering; lead-free and RoHS compliant.

•Contains 38 x 62 holes, with 0.037 inch holes drilled on 0.1 inch (2.54mm) centers.

•Adheres to standard single height (3U) Eurocard/VME dimension; dimensions are 3.9 inches wide, 6.3 inches long, and 1/16 inch thick (100 x 160 x 1.6mm).
