P-line Web Sensor with PoE - two channels with binary inputs

P-line Web Sensor with PoE - two channels with binary inputs

SKU: P8652   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

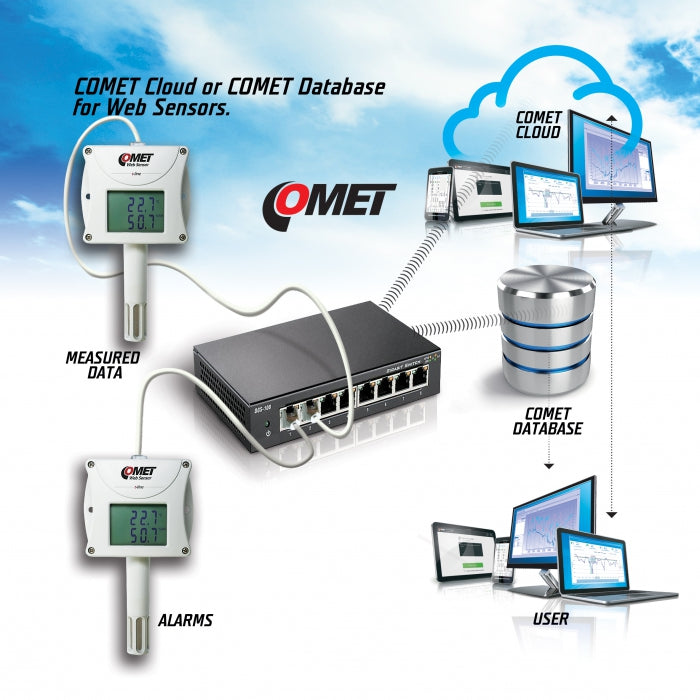

P-line Web Sensor with PoE (Power over Ethernet feature) for measuring temperature, relative humidity and three binary inputs for two-states signals Remote alarm The device is equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals The dry contact or two-state voltage signal can be connected to the binary input Processing and analysis of measured data: online in COMET Cloud, COMET Database software integration into 3-party systems.

Features and Benefits:

    •Power over Ethernet feature.

    •Remote alarm capability.

    •Two connectors for temperature and humidity external probes.

    •Three binary inputs for two-states signals.

    •Processing and analysis of measured data via COMET Cloud and third-party systems.

Specifications:

 Measured value Temperature, Relative humidity, Two-state signal
 TEMPERATURE SENSOR Measuring range -55 to +105 °C
 TEMPERATURE SENSOR Accuracy according to the connected probe DSxx
 TEMPERATURE SENSOR Resolution 0.1 °C
 HUMIDITY SENSOR Measuring range according to the connected probe DSxx
 HUMIDITY SENSOR Accuracy according to the connected probe DSxx
 HUMIDITY SENSOR Resolution 0.1% RH
 BINARY INPUT Voltage input level for 'L' < 1.0 V
 BINARY INPUT Voltage input level for 'H' > 2.5 V
 BINARY INPUT Internal resistivity of the voltage source < 2kOhm
 BINARY INPUT Input voltage range 0 to +30 V
 BINARY INPUT Voltage on the unclosed contact 3.3 V
 BINARY INPUT Current through closed contact 0.1 mA
 BINARY INPUT Maximum resistivity of the contact < 5kOhm
 GENERAL TECHNICAL DATA Operating temperature -20 to +60 °C
 GENERAL TECHNICAL DATA Channels 1x external temperature probe or 1x connectable temperature+humidity probe
 GENERAL TECHNICAL DATA Output Ethernet
 GENERAL TECHNICAL DATA Measuring interval 2 s
 GENERAL TECHNICAL DATA Available temperature units degrees Celsius, degrees Fahrenheit
 GENERAL TECHNICAL DATA Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 GENERAL TECHNICAL DATA Alarm protocols E-mail, SNMP Trap, Syslog
 GENERAL TECHNICAL DATA Power Power over Ethernet according to IEEE 802.3af or 5Vdc
 GENERAL TECHNICAL DATA Protection class IP30
 GENERAL TECHNICAL DATA Dimensions 88 x 74 x 39.5 mm
