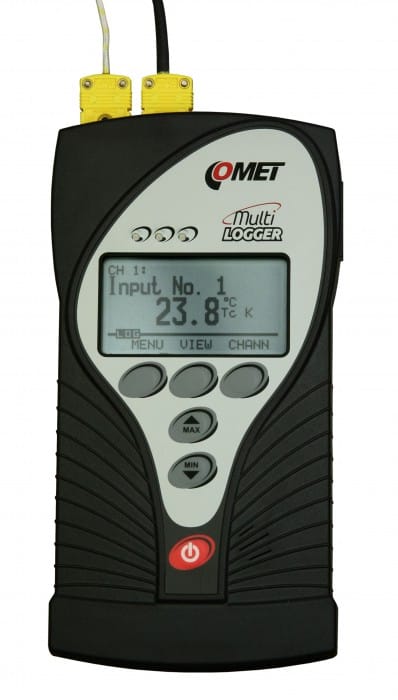

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

SKU: M1200   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

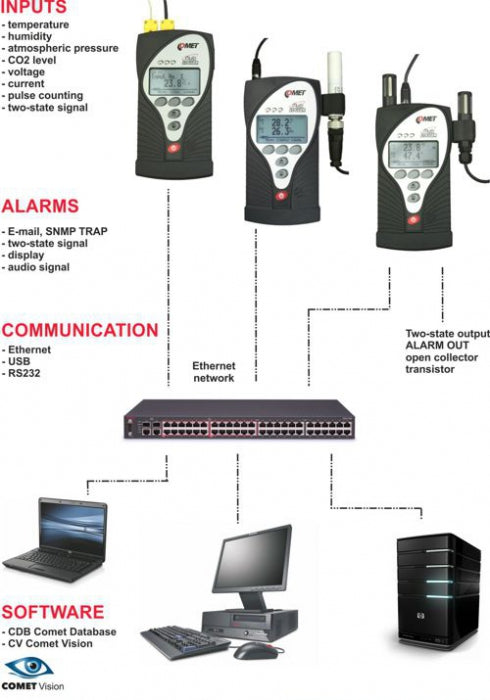

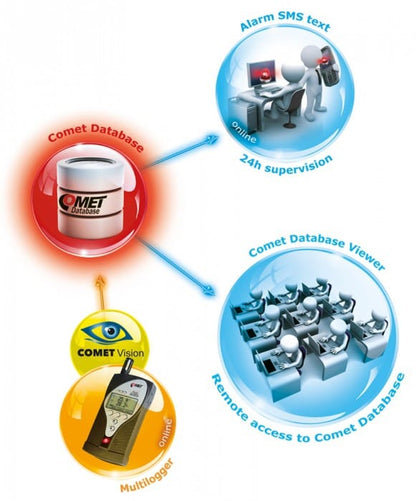

Universal datalogger with 4 inputs for thermocouples K, J, S, B, T, N Multilogger can be installed permanently to Ethernet network or work as portable device Included is traceable calibration certificate in accordance with EN ISO/IEC17025 The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs Datalogger can be connected to Ethernet.

Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

Features and Benefits:

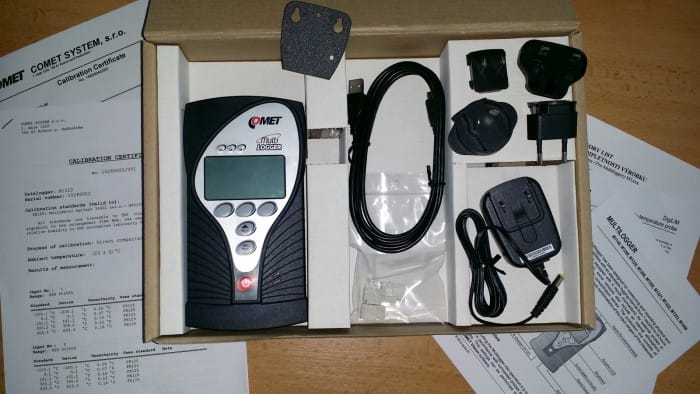

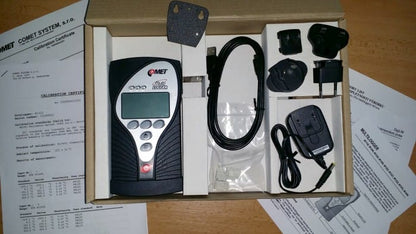

    •Traceable calibration certificate in accordance with EN ISO/IEC17025.

    •Capable of measuring and recording sensor and electrical values.

    •Can be installed permanently to Ethernet network or work as a portable device.

    •Measured values can be viewed on a web browser.

    •Battery operated with a battery life of 3 - 4 weeks.

Specifications:

 Measured value Temperature
 Temperature Sensor - thermocouple K, N {'Measuring range': '-200 to +1300 °C', 'Accuracy': '± 0,3 % from the measured value + 1,5 °C', 'Resolution': '0.1 °C'}
 Temperature Sensor - thermocouple J {'Measuring range': '-200 to +750 °C', 'Accuracy': '± 0,3 % from the measured value + 1,5 °C', 'Resolution': '0.1 °C'}
 Temperature Sensor - thermocouple S {'Measuring range': '0 to +1700 °C', 'Accuracy': '± 0,3 % from the measured value + 1,5 °C', 'Resolution': '0.1 °C'}
 Temperature Sensor - thermocouple B {'Measuring range': '100 to +1800 °C', 'Accuracy': '± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C', 'Resolution': '0.1 °C'}
 Temperature Sensor - thermocouple T {'Measuring range': '-200 to +400 °C', 'Accuracy': '± 0,3 % from the measured value + 1,5 °C', 'Resolution': '0.1 °C'}
 DC Voltage {'Measuring range': '-60 to +140 mV; -18 to +18 mV', 'Accuracy': '±100 µV; ±20 µV', 'Resolution': '0,1 µV'}
 Operating temperature -10 to +60 °C

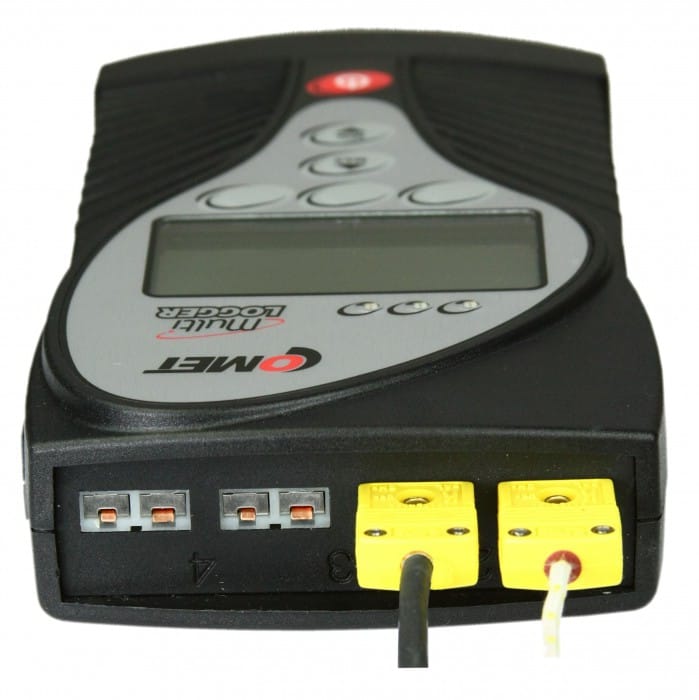

 Channels 4x external temperature probe
 Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
 Recording interval 1s to 24 hours
 Display and alarm refresh each 10 s
 Recording mode noncyclic - data logging stops after filling the memory, cyclic - after filling memory oldest data is overwritten by new
 Available temperature units degrees Celsius, degrees Fahrenheit

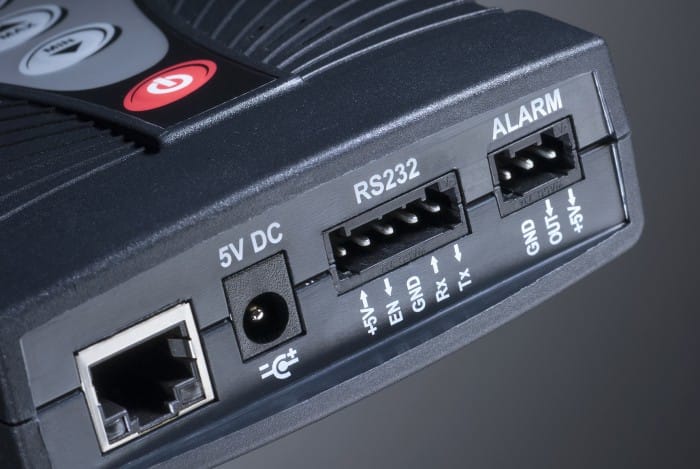

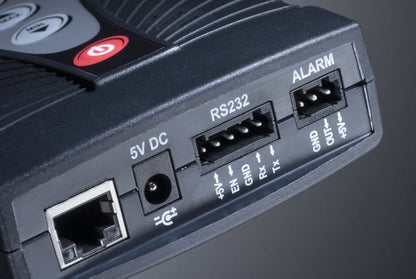

 Communication interface Ethernet, USB, RS232
 Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
 Alarm protocols E-Mail
 Power AC adapter 230Vac/5Vdc (necessary for Ethernet interface)
 Protection class IP20
 Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
