Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

SKU: M1323 Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

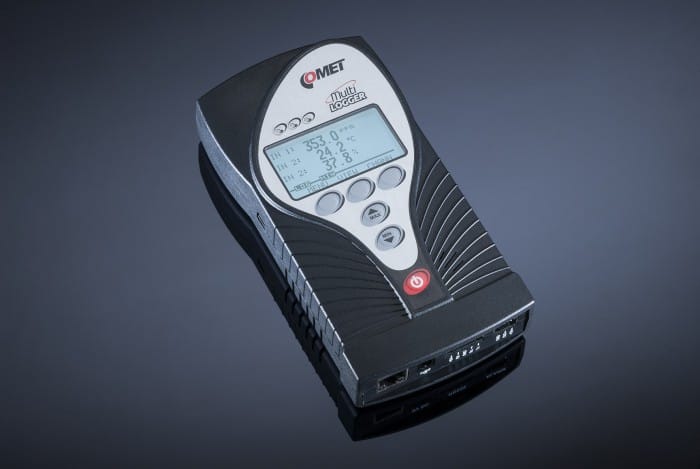

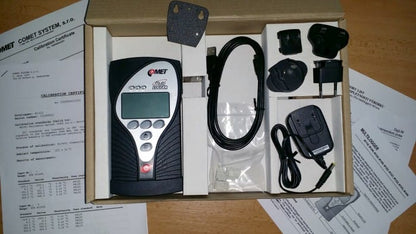

Battery powered datalogger with built-in CO2 and atmospheric pressure sensor and 4 universal inputs for measurement of temperature, humidity, 0-10V voltage, 0-20mA current, two-state signal and for counting pulses Multilogger can be installed permanently to Ethernet network or work as portable device Included is traceable calibration certificate in accordance with EN ISO/IEC17025 The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.

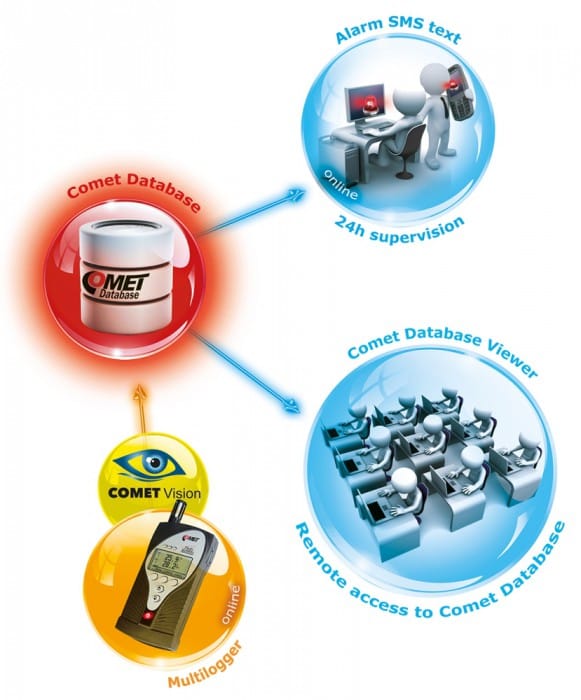

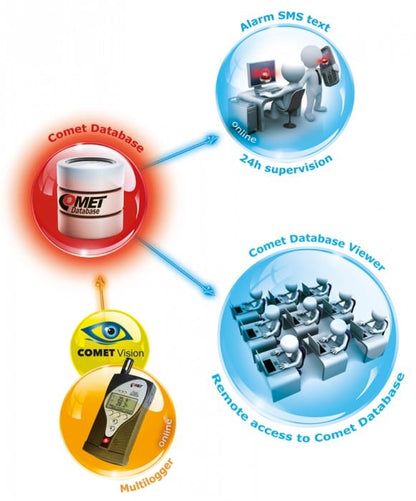

Datalogger can be connected to Ethernet Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

Features and Benefits:

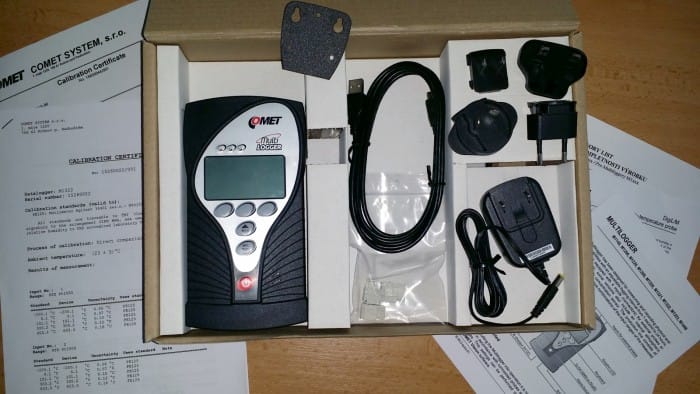

    •Includes traceable calibration certificate in accordance with EN ISO/IEC17025.

    •Can be connected to Ethernet for remote viewing and analysis.

    •Battery powered with a life of 3 - 4 weeks.

    •Records up to 1,000,000 values noncyclically.

    •Multiple measurement inputs: temperature, humidity, CO2, atmospheric pressure, current, and voltage.

Specifications:

 Operating temperature: -10 to +60 °C

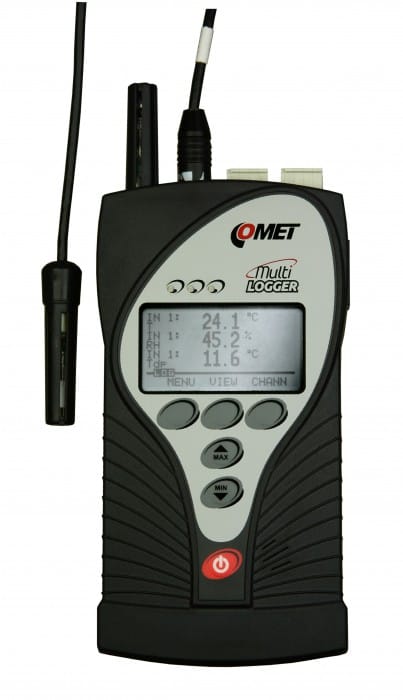

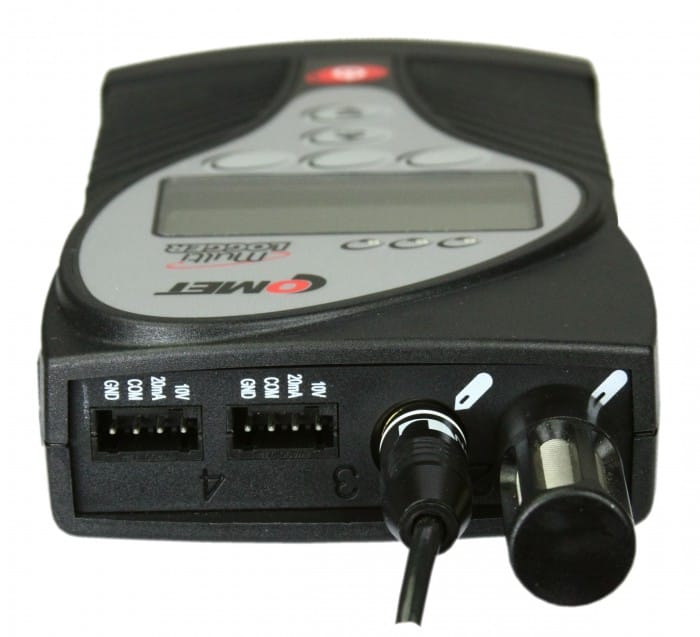

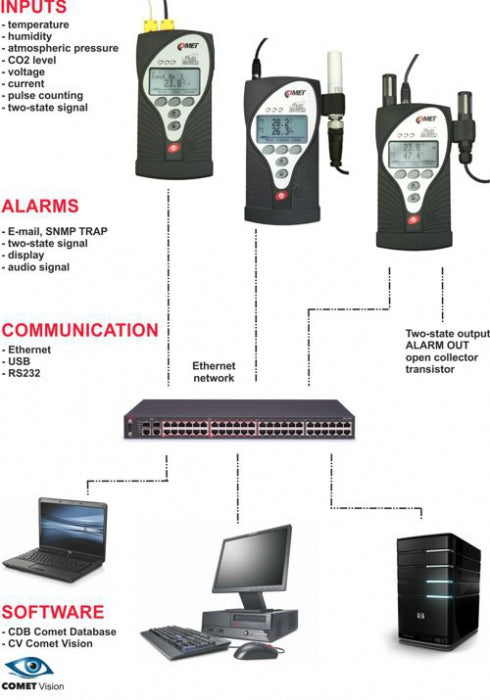

 Channels: Internal atmospheric pressure sensor, CO2, 2x external temperature probes or connectable temperature + humidity probe, 2x binary, counter, voltage and current input
 Memory: 1,000,000 values (noncyclic record), 600,000 values (cyclic record)
 Recording interval: 1s to 24 hours
 Ethernet communication protocols: WWW, SNMPv1, XML, DATALINK

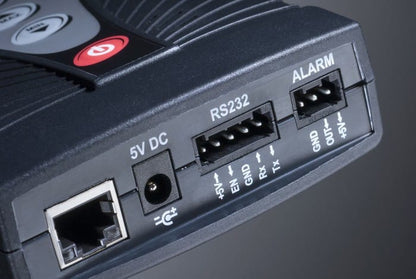

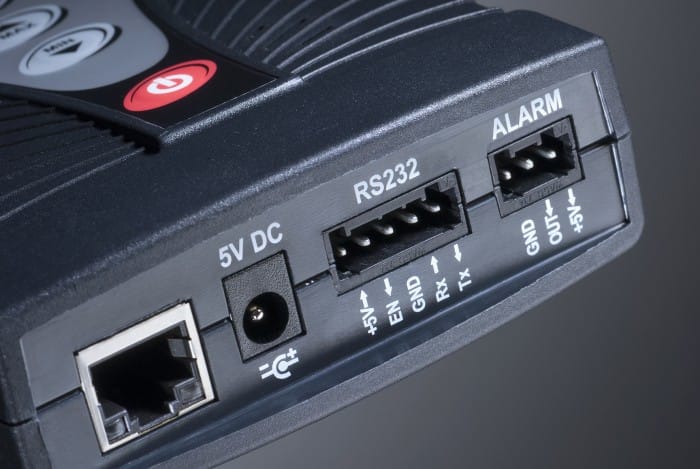

 Power: AC adapter 230Vac/5Vdc (necessary for Ethernet interface)
 Protection class: IP20
 Dimensions (without connectors): 178 x 95 x 37mm, without attached cables
