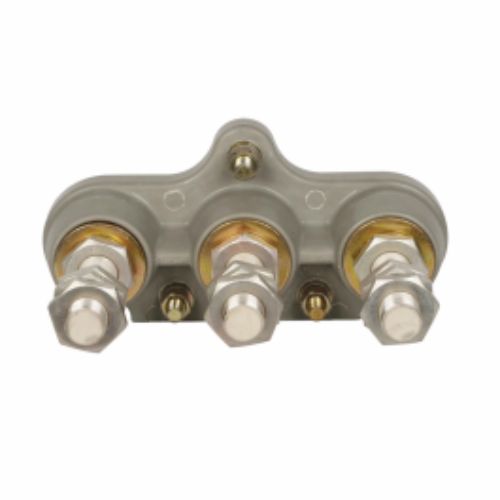

Molded Case Circuit Breaker Accessory Plug In Complete Mounting Block 1230C81G01
Molded Case Circuit Breaker Accessory Plug In Complete Mounting Block 1230C81G01
SKU: SKU: 1230C81G01 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
About:
• Circuit breakers, both low- and medium-voltage, provide protection against overheating wires, overloads, and short circuits. They safeguard electrical circuits by interrupting the current flow when protective relays detect a fault.
• The Molded Case Circuit Breaker (MCCB) Accessory Plug-In Complete Mounting Block is designed to simplify the installation and removal of molded case circuit breakers in electrical panels. This mounting block allows for quick, secure, and reliable connections by providing a plug-in interface between the circuit breaker and the panel.
• It is specifically engineered to ensure a firm and stable connection, reducing downtime and improving operational efficiency during maintenance or replacement. The plug-in feature enhances flexibility in system upgrades or expansions, while its durable construction ensures long-lasting performance in demanding electrical environments.
Also Known As:
MCCB Plug-In Base, Plug-In Mounting Block for Molded Case Circuit Breaker, MCCB Plug-In Mount, Circuit Breaker Mounting Block, Plug-In Adapter for Circuit Breakers, Molded Case Circuit Breaker Installation Block, MCCB Accessory Mounting Base, Quick-Connect Mounting Block for Circuit Breakers.
Specification:
| Product Type | Plug-in complete mounting block |
| Category | Circuit Breaker |
| Connection | Rear |
| Dimensions | 8.1 in L x 6.5 in W x 5.1 in H |
| Height | 5.1 In |
| Width | 6.5 In |
| Part No. | 1230C81G01 |
Features:
• Simplifies installation and removal of molded case circuit breakers by providing a plug-in interface, reducing wiring complexity.
• Enables faster setup, minimizing downtime during maintenance or breaker replacement.
• Ensures a reliable and stable connection between the circuit breaker and the panel, preventing accidental disconnections or loose fittings.
• Built from robust materials to withstand tough industrial and commercial environments, ensuring long-term reliability.
• Space-saving form factor makes it ideal for use in panels where space is limited.
• Designed to be compatible with a wide range of molded case circuit breakers, offering flexibility in different electrical systems.
