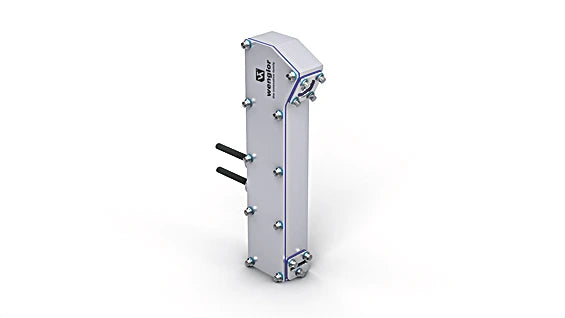

MLWL033 - 2D/3D Laser Profile Sensor with Open Interface

SKU: SKU: MLWL033 Download PDF

Select a Variant:

MLWL033 - 2D/3D Laser Profile Sensor with Open Interface

SET THE QTY:

Now $31,878.00 Web pricing policy

~~BEFORE $0.00~~ Now $31,878.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the cutting-edge 2D/3D Profile Sensors that utilize a laser line projection to accurately detect object heights The internal camera operates at a triangulation angle to provide precise height profiles With its versatile open interface, the weCat3D series integrates seamlessly via the DLL program library or the GigE Vision standard without the need for an extra control unit Additionally, wenglor offers specialized software packages to streamline the implementation of your specific applications.

Features and Benefits:

•Up to 12 million measuring points per second.

•Blue light for applications on metal, organic or semi-transparent materials.

•IP69K.

•Ecolab.

Specifications:

Working range Z	300 ... 1,000 mm
Measuring range Z	700 mm
Measuring range X	280 ... 830 mm
Linearity Deviation	175 µm
Resolution Z	27 ... 162 µm
Resolution X	181 ... 446 µm
Light Source	Laser (blue)
Wavelength	405 nm
Service Life (T = +25 °C)	20,000 h
Laser Class (EN 60825-1)	2
Ambient temperature	0 ... 45 °C
Storage temperature	-20 ... 70 °C
Max. Ambient Light	5,000 Lux
EMC	DIN EN 61000-6-2; 61000-6-4
Shock resistance per DIN IEC 68-2-27	30 g / 11 ms
Vibration resistance per DIN IEC 60068-2-6	6 g (10...55 Hz)
Atmospheric humidity	5...95%, non-condensing
Supply Voltage	18 ... 30 V DC
Current Consumption (Ub = 24 V)	300 mA
Measuring Rate	180 ... 6,000 /s
Subsampling	350 ... 6,000 /s
Inputs/Outputs	4
Switching Output Voltage Drop	< 1.5 V
Switching Output / Switching Current	100 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Interface	Ethernet TCP/IP
Transmission rate	100/1000 Mbit/s
Protection Class	III
FDA Accession Number	2110262-000
Housing Material	Stainless steel, V2A (1.4305 / 303)
Degree of Protection	IP69K
Cable Length	5 m
Bending Radius	87 mm
Optic Cover	Plastic, PMMA
Cable Jacket Material	Plastic, TPE
MTTFd (EN ISO 13849-1)	161.86 a
Output Push-Pull	yes
Adjustable parameters Output	Push-pull
Circuit	NC, NC/NO, NO
