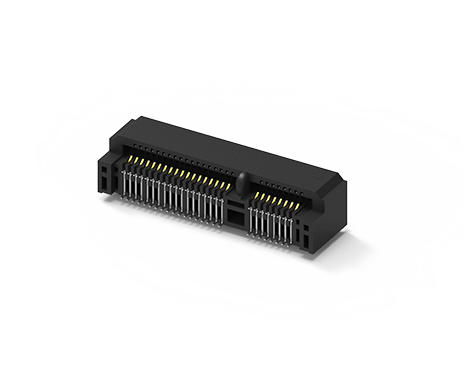

Mini PCIExpress, H=7.0mm Mini PCIExpress, H=7.0mm, Top Mount, SMT Type

Description:

ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems These connectors offer a compact form factor The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 33 V or 5 V power connections, totaling 124 pins The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair.

It has 15 V or 33 V power connections, totaling 52 pins Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth, mobile network, and SSD Multiple mounting options are available with single latch, dual latch, and screw & nuts to fit different design purposes Height range: 40 mm to 99 mm Optional accessories include a single fixation latch, two dual fixation latches, or two nuts with two screws.

The connector and latch are surface-mount devices Compatible with PCI Express 10 x1 (250 MB/s) and PCI Express 20 x1 (500 MB/s) ATTEND offers multiple height options from 40 mm to 99 mm standoff which provides a flexible design solution The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking/Wifi device, ADSL modern, SSD storage, IP set-top box, Box PCs, Edge computing, Industrial PCs, Embedded systems.

Features and Benefits:

•wireless networking/Wifi device.

•ADSL modern.

•SSD storage.

•IP set-top box.

•Box PCs.

•Edge computing.

•Industrial PCs.

•Embedded systems.

Specifications:
