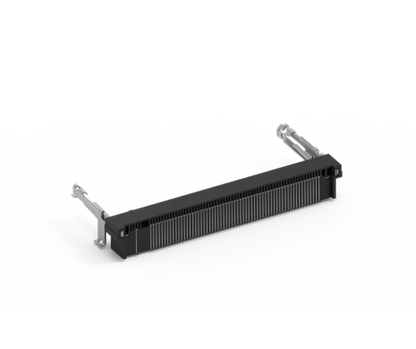

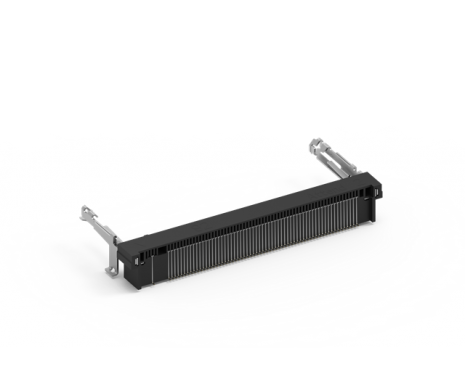

Mini PCI Connector, H=9.2mm Top Mount SMT Type

Description:

ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems These connectors offer a compact form factor The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 33 V or 5 V power connections, totaling 124 pins The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair.

It has 15 V or 33 V power connections, totaling 52 pins Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth, mobile network, and SSD.

Features and Benefits:

•4.0 mm and 9.2 mm heights available.

•Compatible transfer rate of 133 MB/s for 32-bit, 33 MHz.

•The retention latch is all-in-one on the connector.

•Box PCs.

•Edge computing.

•Industrial PCs.

•Embedded systems.

Specifications:
