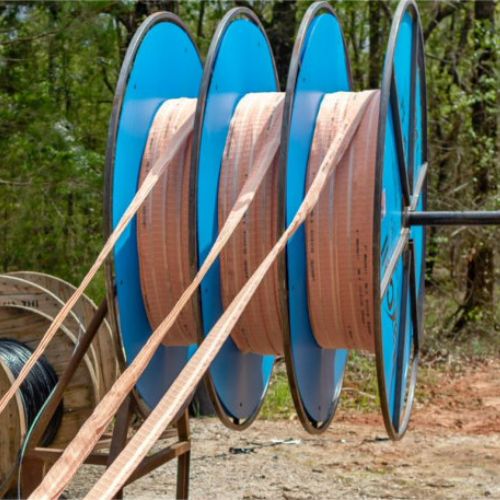

MaxCell Edge Segmented Reels

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The MaxCell segmented reel allows you to conveniently pull multiple MaxCell packs at the same time. The reel includes 3 segments of MaxCell Edge 3” 3-Cell with optional lengths. The size and configuration make it easier to install MaxCell in the field, and it fits on smaller reel trailers that contractors commonly use.

MaxCell® Edge fabric inner duct is designed to maximize the capacity of conduits in network infrastructure while preserving space for future network deployments. New construction applications have installed up to 300% more cabling per conduit over rigid ducts. In occupied conduits, MaxCell’s design has allowed for easy pathway creation when overriding existing cabling or traditional inner ducts while reducing total system cost.

Features:

• Includes 3 segments that each hold MaxCell Edge 3" 3-Cell
• Segments are differentiated by thread color: Blue, Red, and Yellow
• Two reel length options are available - 3000ft (9000ft Total) and 6000ft (18000ft Total)
• Reel side cover: 4mm corrugated PVC
• Reel Tubing: 1"x1" 14 gauge steel
• Reel Height: 72"
• Reel Width: 45"
