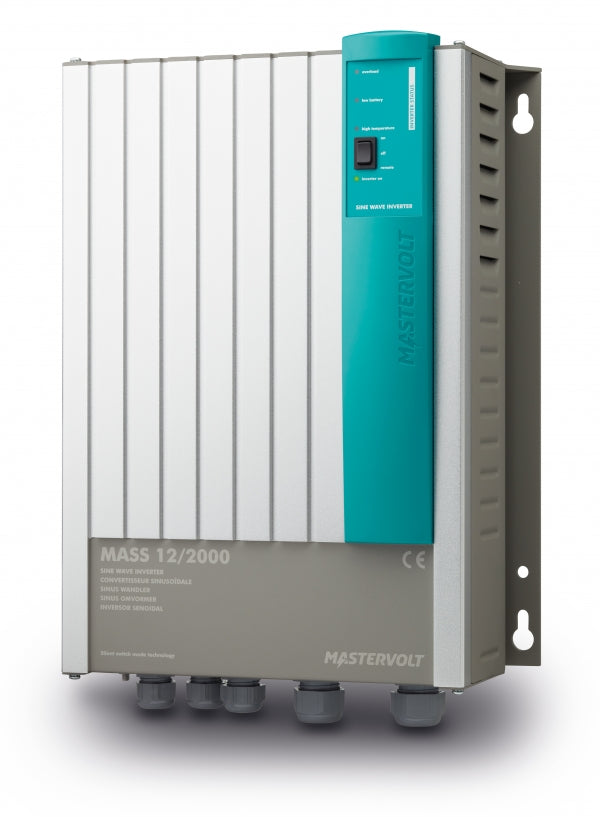

Mass Sine 12/2000 Inverter

Mass Sine 12/2000 Inverter

SKU: 24012000   Download PDF

Qty:
Now $238,470.00   Web pricing policy
BEFORE   Now $238,470.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The Mass Sine 12/2000 inverter is designed for extremely demanding tasks, operating effectively under harsh conditions With a mean time between failures (MTBF) of 180,000 hours at full capacity and continuous use, it assures reliable power supply for critical applications It allows for great flexibility in system design, enabling the selection of appropriate battery charging equipment and the use of renewable energy sources.

The inverter boasts high efficiency and automatic economy mode, ensuring digital devices function correctly while extending battery life The integration of advanced technologies eliminates distracting sounds like humming, alongside a high peak capacity suitable for electrical tools Easy controls and a remote control panel enhance usability.

Features and Benefits:

    •Suitable for heavy-duty professional and semi-professional applications.

    •Operates at full capacity in temperatures up to 40 °C.

    •Provides pure sine wave output which protects sensitive equipment.

    •High peak capacity ensures seamless operation of complex and heavy loads.

    •Compatible with MasterBus for enhanced functionality.

    •Designed for mobile applications and quick, safe connections.

    •Automatic and reliable operation with the option for an automatic energy source selection system.

Specifications:

 Output voltage (± 5 %): 230 V – 50 Hz (± 0.01 Hz)
 Output waveform: true sine
 Nominal battery voltage: 12 V
 Recommended battery capacity: > 200 Ah
 Continuous power at 40 °C / 104 °F, cos phi 1: 1800 W
 P30 power at 40 °C, cos phi 1: 2000 W
 Peak load: 4000 W
 AC connection: internal
 Galvanic isolation: yes
 Efficiency: 92 %
 Display/read-out: LED display
 Dimensions, hxwxd: 420 x 318 x 130 mm
 Weight: 14.6 kg
 Compliance: CE, E-mark, ABYC A-31, RRR
 Technology: HF switch mode
 Low battery voltage, switches off at: 10 V, ± 0.5 V
 Low battery voltage, switches on at: 11 V, ± 0.5 V
 High battery voltage, switches off at: 15.5 V, ± 0.5 V
 High battery voltage, switches on at: 14.5 V, ± 0.5 V
 Max. ripple on DC (battery): 5% RMS
 Input current (nominal load): 183 A
 No-load power consumption (ON mode): 480 mA – 6 W
 No-load power consumption (energy saving mode): 50 mA – 0.6 W
 Minimal DC fuse (slow blow): 250 A
 Minimal cable size: 70 mm²
 Harmonic distortion typical: < 5%
 Cos phi: all power factors allowed
 Transfer system: the Masterswitch and Systemswitch can be connected to all sine wave inverters
 Temperature range (ambient temp.): -25 °C to 80 °C, derating > 40
 Cooling: natural/forced
 Protection degree: IP23
 Protections: over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible: yes, using a MasterBus Inverter Interface or AC power analyser
