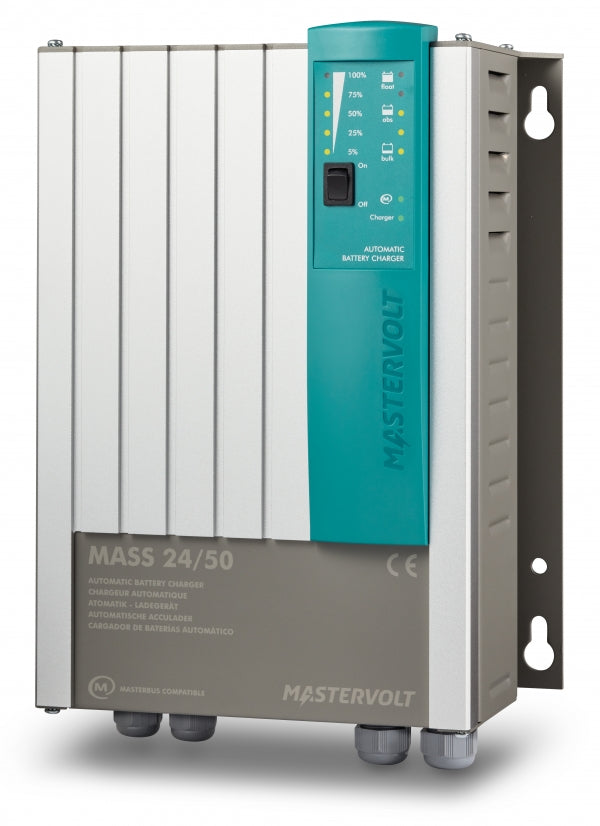

Mass 24/50-2 DNV GL

Mass 24/50-2 DNV GL

SKU: 40020506   Download PDF

Qty:
Now $189,433.00   Web pricing policy
BEFORE   Now $189,433.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Mass battery chargers are constructed for the most challenging environments for professional, semi-professional, and leisure purposes They function effectively under extreme conditions, providing reliable, continuous output when required The Mass series is built on proven sustainability and advanced technologies, making them perfect for demanding applications where a dependable power supply is essential.

Features and Benefits:

    •Designed for the most difficult conditions..

    •Lightweight, stainless steel, anodised aluminium casing..

    •Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan..

    •Insensitive to electromagnetic effects from other devices..

    •Suitable for every type of battery, also charges flat batteries..

    •Delivered as standard with temperature sensor..

    •Full power at temperatures of up to 40 ˚C..

    •Load capacities from 80 to 1000 Ah or more..

    •Stable and ripple-free power supply, even without batteries..

    •The Current Control function prevents the breakdown of fuses when the voltage drops..

    •Parallel switching possible using multiple battery chargers..

    •Connections in accordance with CE, ABYC A-31 and IEC60945..

    •GMDSS models and panels available..

    •Certified by RRR, RMRS (does not apply to 24/75 120 V)..

    •Certified by DNV GL (only 24/25, 24/50, 24/75, 24/75 (120 V), 24/100 (1ph) models)..

    •The Mass series are designed for the most demanding situations. All Mass battery chargers are GMDSS compatible to help comply with SOLAS regulation..

Specifications:

 Nominal output voltage 24 V
 Total charge current 50 A at 28.5 V
 Number of battery outlets 2
 Charge current second output 3 A
 Battery bank size 100-500 Ah
 Nominal input voltage 230 V (180-265 V), 50/60 Hz
 Power supply mode yes
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 340 x 261 x 130 mm (13.4 x 10.3 x 5.1 inch)
 Compliance CE, ABYC A-31, DNV GL, RRR, RMRS
 Charge characteristic IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
 Charge voltage Bulk 28.5 V
 Charge voltage Absorption 28.5 V
 Absorption time 4 hours
 Charge voltage Float (wet batteries) 26.5 V
 Charge voltage Float (Gel/AGM batteries) 27.6 V
 Temperature sensor yes (included)
 DC voltage compensation yes
 Power consumption (DC side) < 1 mA
 Full load consumption (230 V AC) 1600 W
 Current Control function yes, through MasterBus
 Power factor control > 0.95
 Temperature range (ambient temp.) -25 °C to 80 °C, derating > 40
 Cooling vario fan
 Protection degree IP23
 Protections over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible yes
 Charger Status Interface (alarm contact) yes
