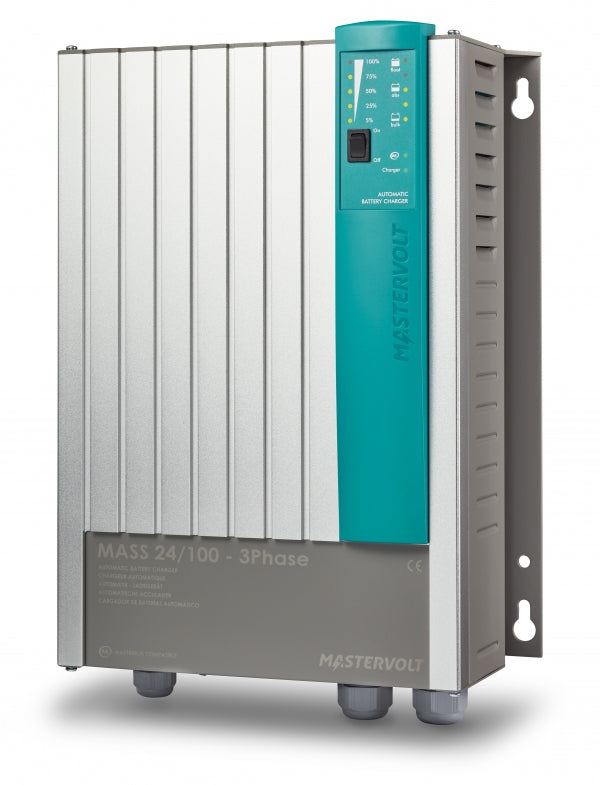

Mass 24/100-3ph Mass Battery Charger

Mass 24/100-3ph Mass Battery Charger

SKU: 40031006 Download PDF

Now $433,941.00
BEFORE   Now $433,941.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Mass battery chargers are engineered for the most demanding conditions, providing reliability for professional, semi-professional, and recreational purposes These chargers operate effectively even in extreme environments, ensuring a continuous power supply as needed The Mass series stands out due to its proven sustainability and technology, making it suitable for the toughest tasks.

Features and Benefits:

    •Designed for the most difficult conditions..

    •Lightweight, stainless steel, anodised aluminium casing..

    •Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan..

    •Insensitive to electromagnetic effects from other devices..

    •Suitable for every type of battery, also charges flat batteries..

    •Delivered as standard with temperature sensor..

    •Full power at temperatures of up to 40 ˚C..

    •Load capacities from 80 to 1000 Ah or more..

    •Stable and ripple free power supply, even without batteries..

    •Current Control function prevents fuse breakdown when voltage drops..

    •Parallel switching possible using multiple battery chargers..

    •Connections in accordance with CE, ABYC A-31 and IEC60945..

    •GMDSS models and panels available..

    •GMDSS compatible for various alarm function monitoring..

    •Suitable for heavy vibrations and shocks in extreme conditions..

Specifications:

 Nominal output voltage 24 V
 Total charge current 100 A at 28.5 V
 Number of battery outlets 1
 Battery bank size 200-1000 Ah
 Nominal input voltage 3 x 400 V (365-550 V), 50/60 Hz
 Input voltage range 365-550 V
 Power supply mode yes
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 420 x 318 x 130 mm - 16.5 x 12.5 x 5.1 inch
 Weight 7.7 kg - 17.0 lb
 Compliance CE, ABYC A-31, RRR, RMRS
 Charge characteristic IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
 Charge voltage Bulk 28.5 V
 Charge voltage Absorption 28.5 V
 Absorption time 4 hours
 Charge voltage Float (wet batteries) 26.5 V
 Charge voltage Float (Gel/AGM batteries) 27.6 V
 Temperature sensor yes (included)
 DC voltage compensation yes
 Power consumption (DC side) < 1 mA
 Full load consumption (230 V AC) 3500 W
 Current Control function yes, through MasterBus
 Power factor control > 0.95
 Temperature range (ambient temp.) -25 °C to 80 °C, derating > 40
 Cooling vario fan
 Protection degree IP23
 Protections over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible yes
 Charger Status Interface (alarm contact) yes
