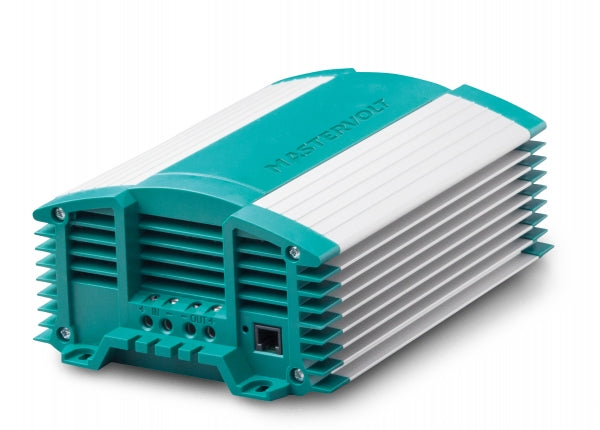

Magic 24/24-20 Voltage Stabilizer and 3-Step Battery Charger

Magic 24/24-20 Voltage Stabilizer and 3-Step Battery Charger

SKU: 81300200 Download PDF

Now $57,749.00
BEFORE   Now $57,749.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Magic models can regulate the voltage both up and down to ensure optimal voltage stabilization, even when the battery voltage fluctuates due to heavy loads The galvanic isolation between input and output prevents disruptions to communication equipment They are designed for professional use, functioning as a converter and a 3-step battery charger The units are parallel switchable and feature an adjustable and programmable output voltage, enhancing lifespan for devices such as halogen lights.

Additionally, they include a dimmer function for the Mac & Magic models The isolated models provide galvinic isolation between their input and output circuits.

Features and Benefits:

    •Extra touch-proof.

    •Interference suppression for sensitive equipment.

    •Available with negative or positive grounding.

    •Programmable via desktop or laptop or PC.

    •Remote control the Magic via your laptop or PC to configure personal preferences.

    •Energy-saving dimmer function.

    •Parallel configuration for multiple units.

    •Designed for the toughest conditions for professional, semi-professional, and recreational purposes.

    •Galvanized brass connection block with screw terminal or chrome-plated fast-on for DC in/out.

    •Advanced 3-step battery charger for various battery types.

Specifications:

 Output voltage 20-28.5 V
 Nominal output voltage 27.2 V (adjustable with MasterAdjust)
 Output voltage dimmer 8-26 V (adjustable with MasterAdjust)
 Output voltage stabilisation 2 % at extremes of temperatures, load and input
 Output voltage ripple max. 1 %
 Max. output power 580 W
 Nominal output power 580 W
 Max. output current 20 A
 Output charge current 16 A
 Nominal input voltage 24 V
 Input voltage range 19-32 V
 Input voltage range (3-step charge mode) 24-32 V
 Lower input set point 20 V (adjustable with MasterAdjust)
 Delay lower input set point 30 sec. (adjustable with MasterAdjust)
 Galvanic isolation yes
 Voltage limited yes
 Efficiency >90 % (nom. input voltage, full load); peak 92
 Parallel configuration yes
 Dimmer function yes, by external momentary switch via fast-on connection
 Alarm contact yes, through MasterBus
 Dimensions 227 x 154 x 81 mm
 Weight 1.8 kg
 Compliance CE
 No-load consumption < 2 mA
 Battery types flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined
 3-Step charge option yes
 DC consumption < 115 mA
 Connections screw terminals (max. wire size 16 mm² / AWG5)
 Temperature range -25 °C to 60 °C, derating > 40
 Cooling maintenance free vario fans
 Protection degree IP21
 Protections against over load & over temperature
 MasterBus compatible yes
