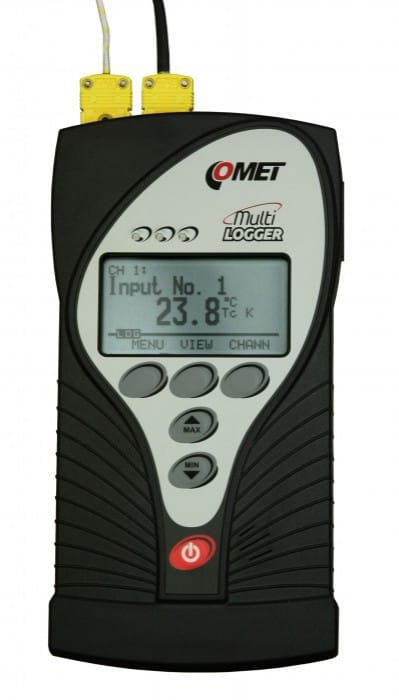

M1200E Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

M1200E Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

SKU: M1200E Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N Included is traceable calibration certificate in accordance with EN ISO/IEC17025 M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in COMET Vision, where you can create table charts, PDF export, MS EXCEL.

The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

Features and Benefits:

    •Battery operated datalogger.

    •Monitoring of actual measured values on the device display.

    •Works with historical data in Comet Vision.

    •Traceable calibration certificate included.

    •4 inputs for thermocouples K, J, S, B, T, N.

Specifications:

 Temperature Sensor - Thermocouple K, N Measuring Range -200 to +1300 °C
 Temperature Sensor - Thermocouple J Measuring Range -200 to +750 °C
 Temperature Sensor - Thermocouple S Measuring Range 0 to +1700 °C
 Temperature Sensor - Thermocouple B Measuring Range 100 to +1800 °C
 Temperature Sensor - Thermocouple T Measuring Range -200 to +400 °C
 DC Voltage Measuring Range -60 to +140 mV; -18 to +18 mV
 General Operating Temperature -10 to +60 °C
 Channels 4x external temperature probe
 Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
 Recording Interval 1s to 24 hours
 Display Refresh each 10 s
 Recording Mode noncyclic - data logging stops after filling the memory, cyclic - after filling memory oldest data is overwritten by new
 Available Temperature Units degrees Celsius, degrees Fahrenheit
 Communication Interface USB
 Power 3x AA alkaline battery 1.5 V
 Battery Life 3 - 4 weeks
 Protection Class IP20
 Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
