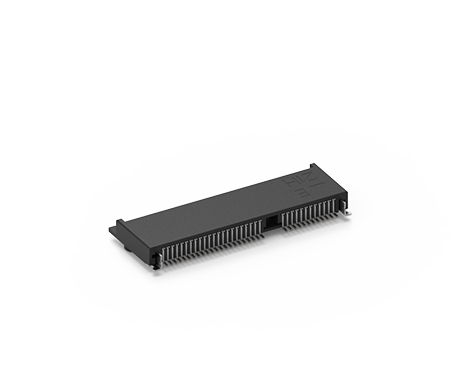

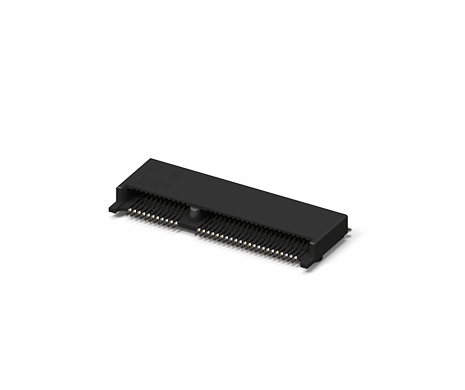

M.2 Connector E Key, H=2.1mm

Description:

ATTEND's M2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe connectors This compact connector enables high-speed data transmission with PCI Express 30, SATA 30, and USB 30 compatibility while meeting PCI-SIG PCIe M2 specifications The easy-to-use one-action latch feature minimizes time and cost The M2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.

0 performance.

Features and Benefits:

•Height range: 2.1 mm to 8.5 mm.

•A, B, E, and M keying options for module cards.

•One-action latch for time and cost savings.

•PCI-SIG PCIe M.2 specification compliant.

•0.5 mm pitch featuring sixty-seven contact points.

•Data storage.

•Servers.

•Industrial PCs.

•IoT.

Specifications:
