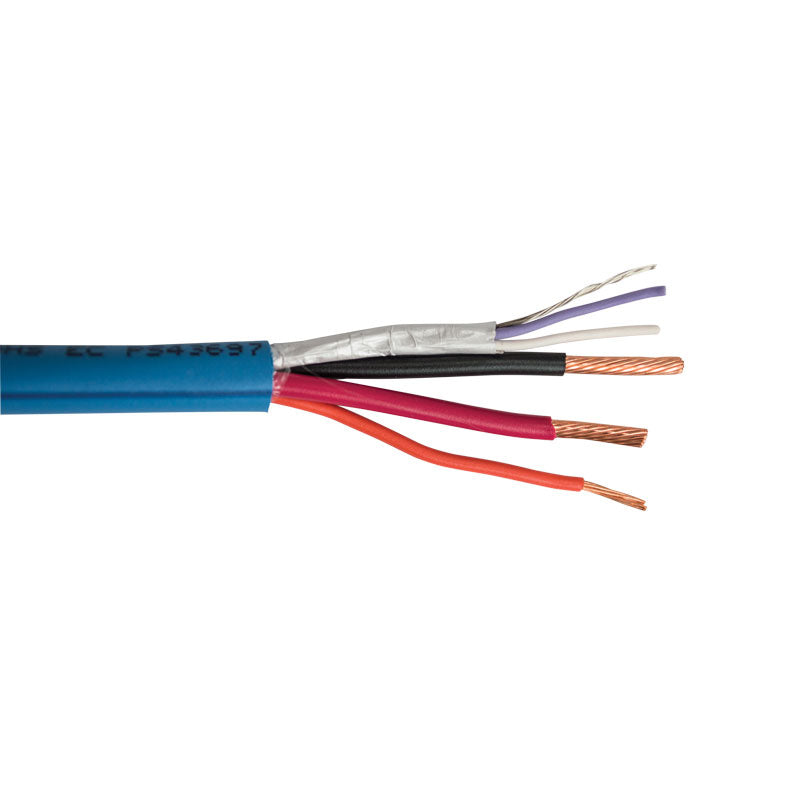

LUT-BLUE GRAFIX EYE- 2C/12 AWG STRANDED BC + 1C/18 AWG STRANDED BC + 2C/22 AWG STRANDED SHIELDED AL FOIL + DRAIN, PVC JKT- LIGHT BLUE W/BLUE STRIPE- 500 FT SPOOL

LUT-BLUE GRAFIX EYE- 2C/12 AWG STRANDED BC + 1C/18 AWG STRANDED BC + 2C/22 AWG STRANDED SHIELDED AL FOIL + DRAIN, PVC JKT- LIGHT BLUE W/BLUE STRIPE- 500 FT SPOOL

SKU: SKU: LUT-BLUE   Download PDF

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $26,480.00 /FT   Web pricing policy
Regular price BEFORE   Sale price Now $26,480.00 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

GRAFIX EYE- 2C/12 AWG STRANDED BC + 1C/18 AWG STRANDED BC + 2C/22 AWG STRANDED SHIELDED AL FOIL + DRAIN, PVC JKT- LIGHT BLUE W/BLUE STRIPE- 500 FT SPOOL SCP Lut-Blue cable is for use with Lutron Grafix Eye Systems for specialty lighting control and power applications The SCP Lut-Blue is comparable to the Lutron GRX-CBL-46L-500 cable For use with Lutron Grafix Eye 4000/5000/6000/7000 The SCP Lut-Blue applications include data/communications and controls.

Features and Benefits:

    •SCP carries a complete line of composite cables for use with Lutron various lighting and shade control systems..

    •These include composite data/communications cables and composite data/control cables which are available in PVC rated CM, Plenum CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial and institutional applications..

    •Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification..

    •Specialty lighting control and power applications..

    •Data/communications and controls..

Specifications:

 Construction: 1) 2 conductor 12 AWG insulated stranded bare copper, twisted pair, unshielded, plus 2) 1 conductor 18 AWG insulated stranded bare copper unshielded, plus 3) 2 conductor 22 AWG insulated stranded bare copper, twisted pair, shielded with AL foil, and TC drain, with an overall FR-PVC jacket.
 Length: 500 ft
 Color: Blue
 UL Listed: Yes
 NEC: CL3 rated
 CEC: CMG FT4
 EU RoHS: Yes
 CE: Yes
 UL 1685: Vertical tray
