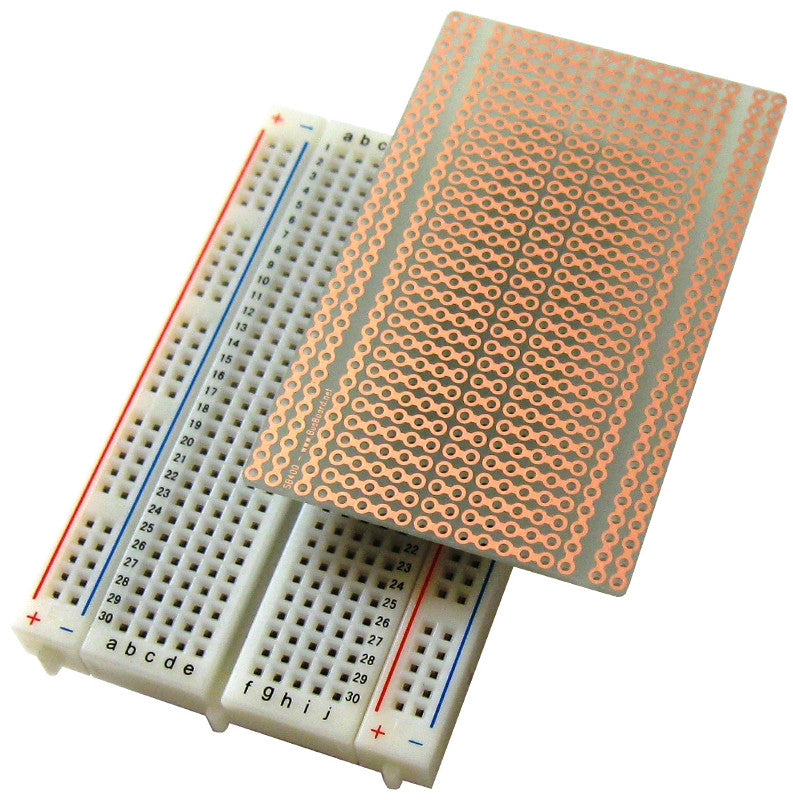

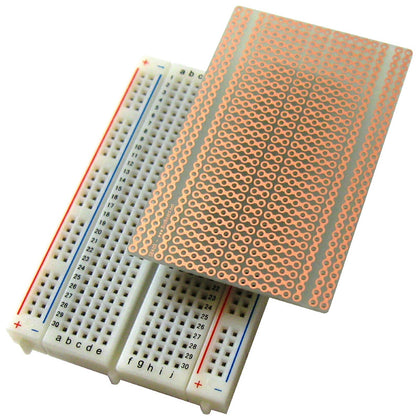

KIT-BB400+SB400 BreadBoard-400 Solderless and Solderable PCB BreadBoards

Description:

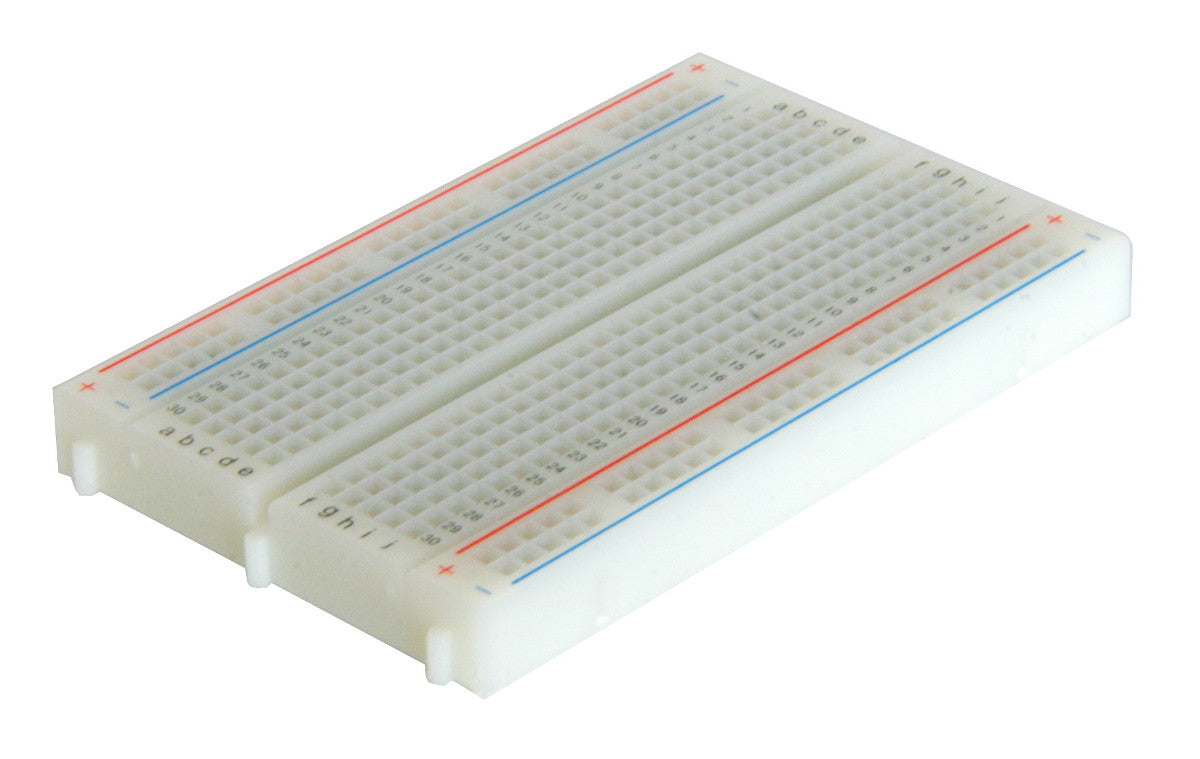

BreadBoard-400 is a solderless (plug-in) breadboard with 400 connection tie-points (ie 400 wire insertion holes) It has 4 power rails Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to a SB400 or SB404 Solderable PC BreadBoard to make them permanent The SB400 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.

The SB400 has the same pattern and spacing as a standard 400 connection point BB400 solderless plug-in breadboard It has a standard 5-hole strip for each IC pin, just like solderless breadboards plus 4 power rails However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts The SB400 has four power rails like solderless breadboards, plus two bonus rails for power or signals.

There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering BPS boards are lead-free and RoHS compatible.

Features and Benefits:

•400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails..

•ABS plastic body with black printed legend..

•Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions..

•Rated at 36 Volts, 2 Amps..

•Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter..

•Peelable adhesive tape backing provided for attaching to a surface..

•Single-sided high-quality FR4 glass-epoxy circuit board..

•1oz/ft2 copper with an anti-tarnish coating for easy soldering..

Specifications:
