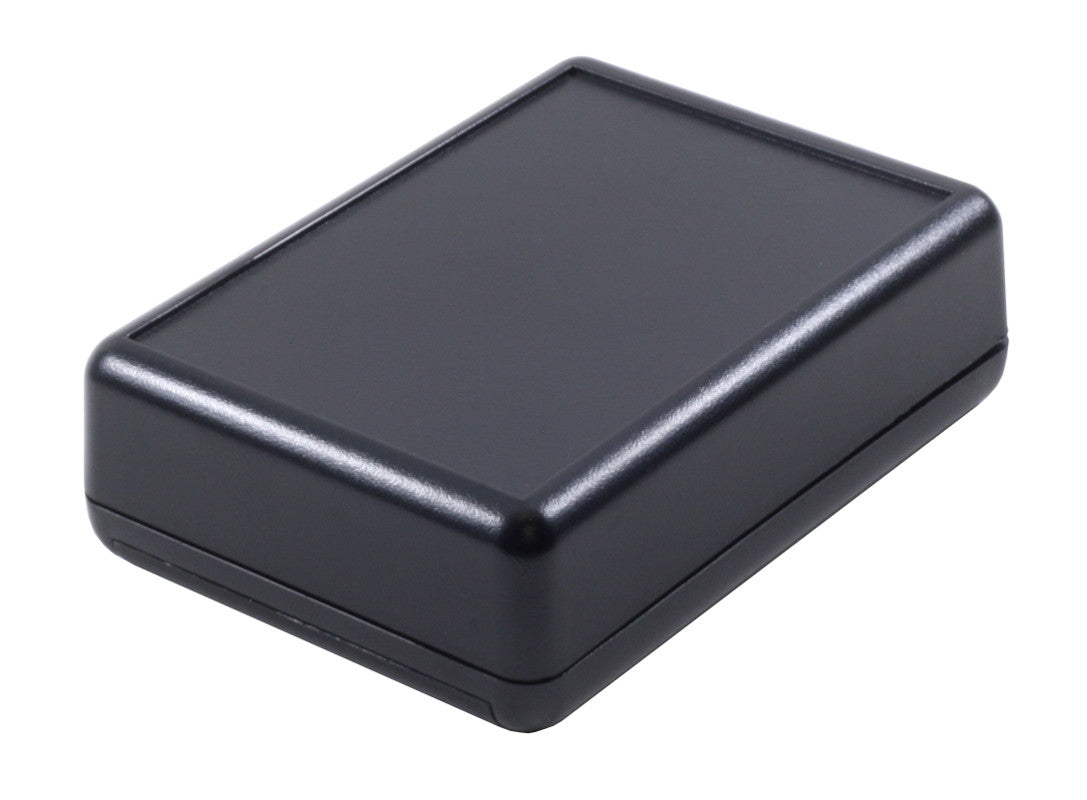

KIT-1593P-BK Black Hammond Plastic Enclosure with ProtoBoard

Description:

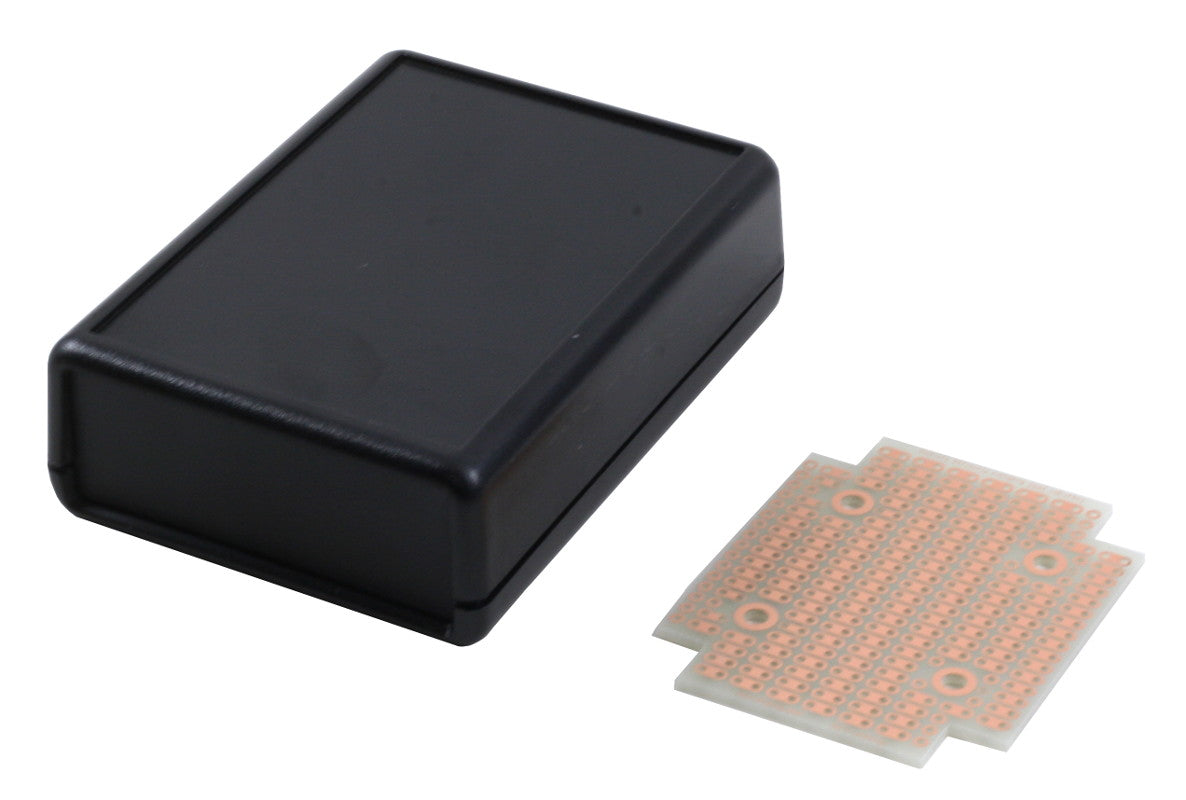

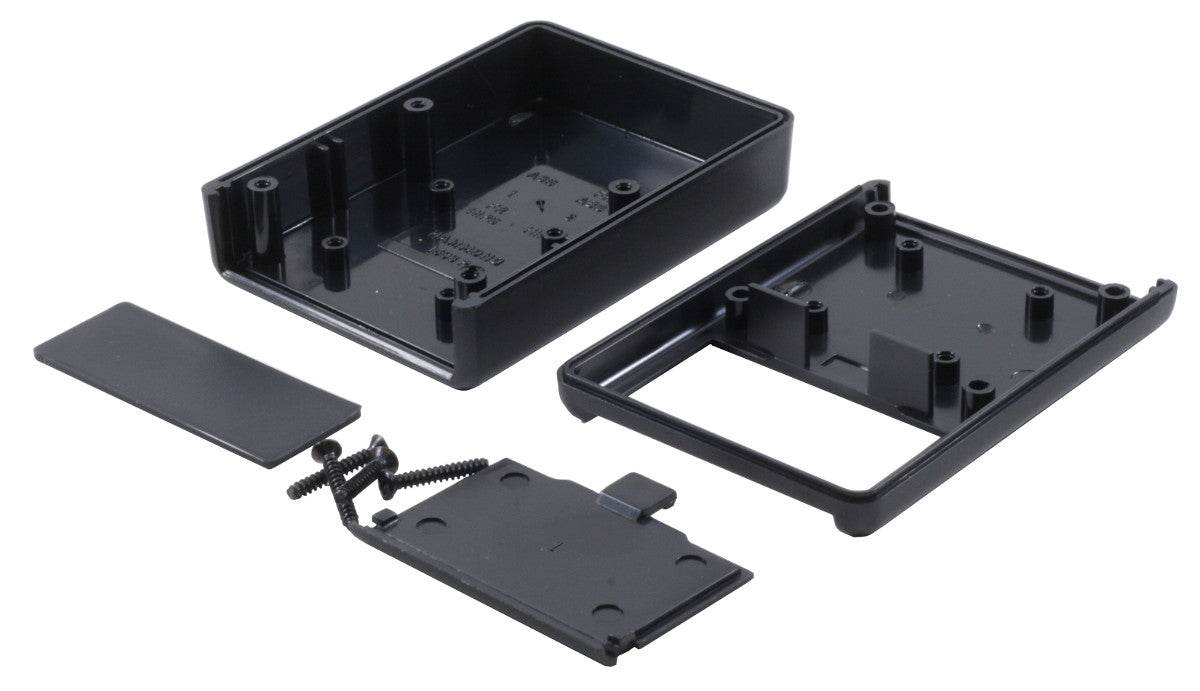

This kit is a black Hammond 1593PBK plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB The hand-held electronic case has a battery compartment for 1xAA, 2xAA, 1 to 4 AAA, or 1x9V battery (battery holder not included) It has a long life 'three snap' battery door, PCB standoffs, and a removable end panel It has a recessed top for membrane overlay or keypad Lap joint construction provides protection against dust accumulation and splashing water.

The PR1593P prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.

Features and Benefits:

•Box is black ABS plastic, secured with self tapping screws (included).

•Battery compartment for 1xAA, 2xAA, 1 to 4 AAA, or 1x9V battery (battery holder not included) and a battery door..

•Box Size 3.6 x 2.6 x 1.1 inches (92 x 66 x 28 mm).

•Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible..

•0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes. Screws provided..

•PCB Size 1.93 x 2.35 in (49.0 x 59.7 mm).
