Description:

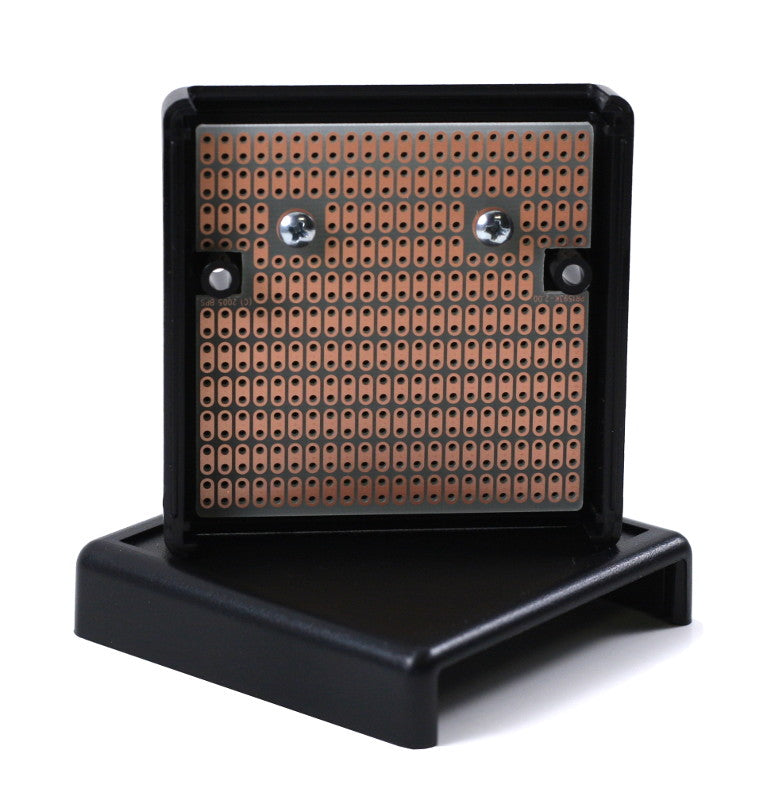

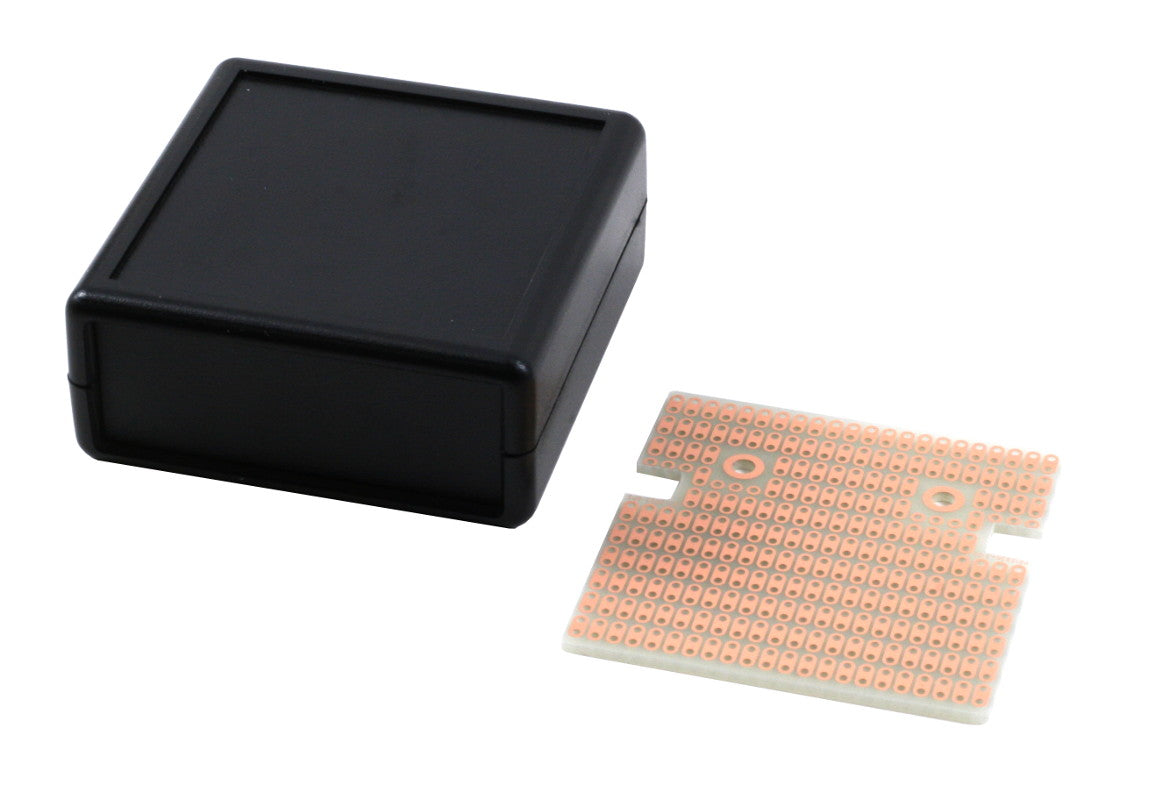

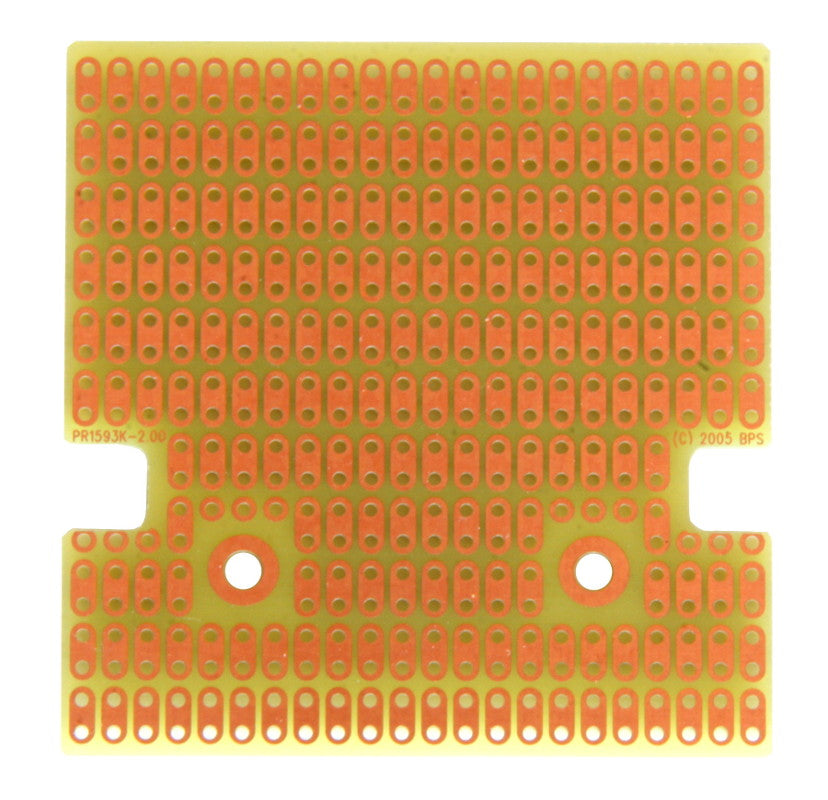

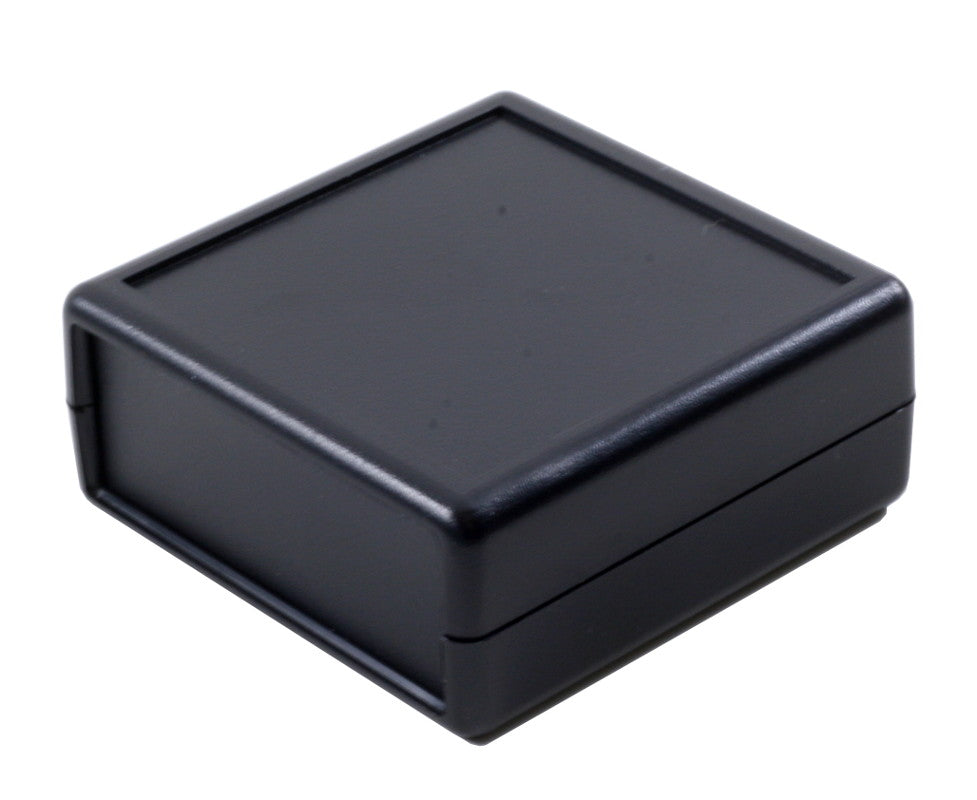

This kit is a black Hammond 1593KBK plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB The hand-held electronic case has built-in PCB standoffs and 2 styles of removable end panels, flat and rounded It has a recessed top for membrane overlay or keypad Lap joint construction provides protection against dust accumulation and splashing water The PR1593K prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.

Features and Benefits:

    •Box is black ABS plastic, secured with self tapping screws (included).

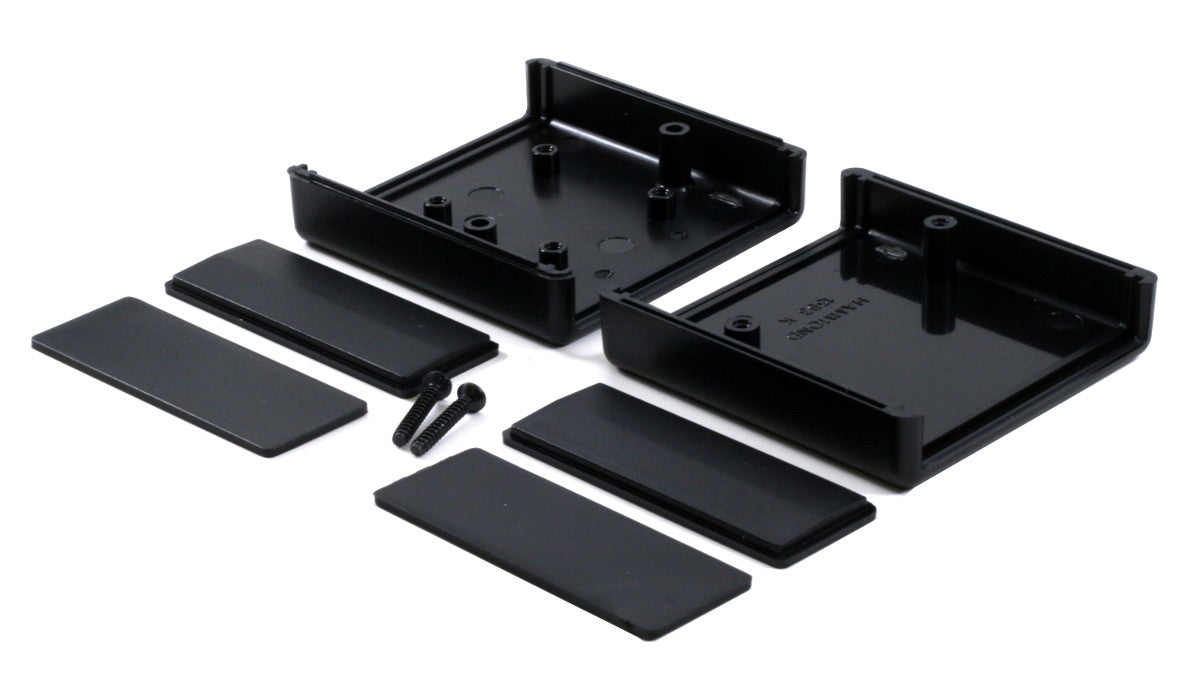

    •2 sets of removable end panels.

    •Box Size 2.6 x 2.6 x 1.1 in. (66 x 66 x 28 mm).

    •Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering.

    •Lead free and RoHS compatible.

    •0.042" holes are drilled on 0.1" (2.54mm) centers.

    •2 mounting holes.

    •Screws provided.

Specifications:

 Box Size: 2.6 x 2.6 x 1.1 in. (66 x 66 x 28 mm)
 PCB Size: 2.3 x 2.3 in (58 x 58 mm)
 Material: black ABS plastic
 Copper Weight: 1oz/ft2
 Holes: 0.042" holes on 0.1" (2.54mm) centers
 Compatibility: Lead free and RoHS compatible
