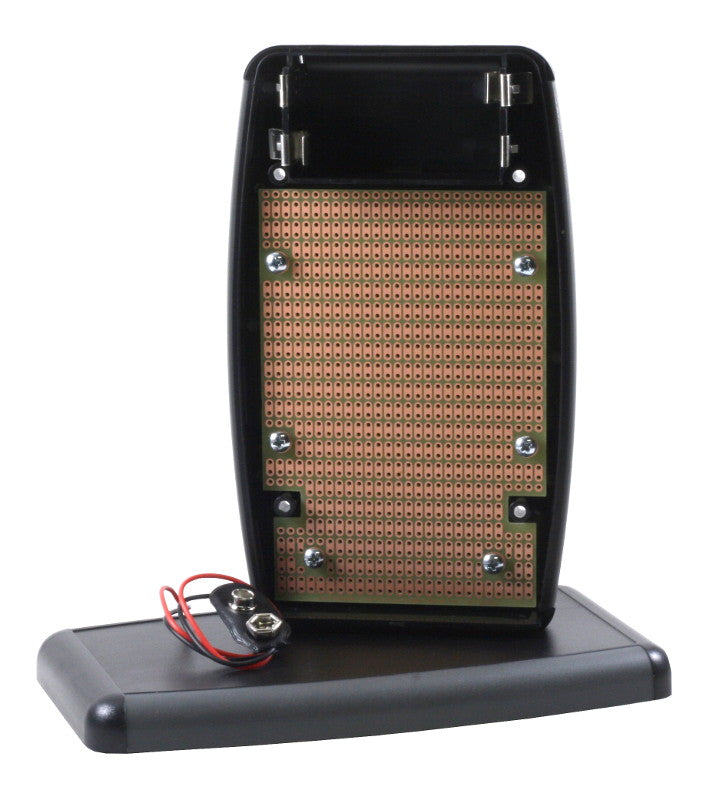

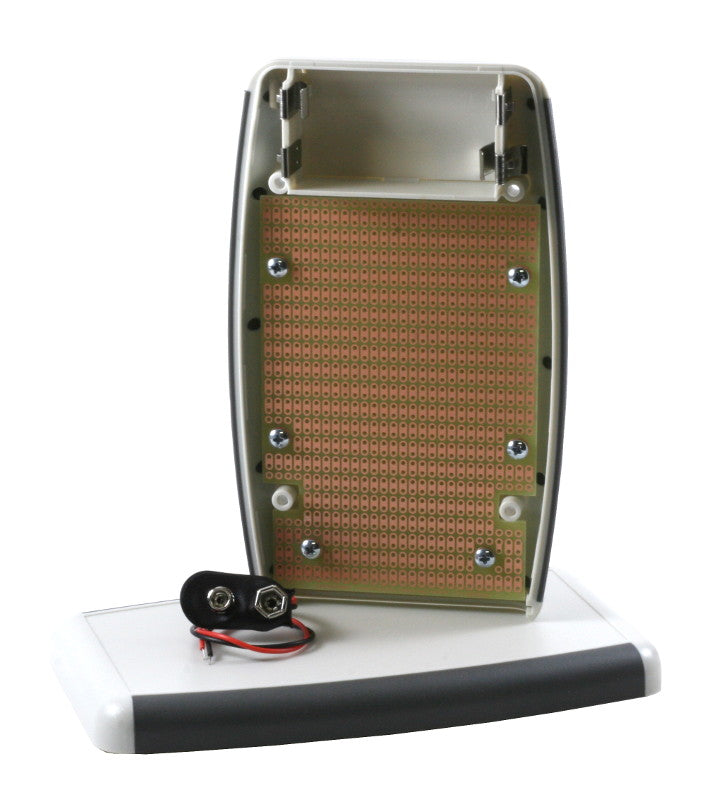

KIT-1553DBAT 1553DBAT Soft Sided Plastic Enclosure with PR1553DBAT PCB

Description:

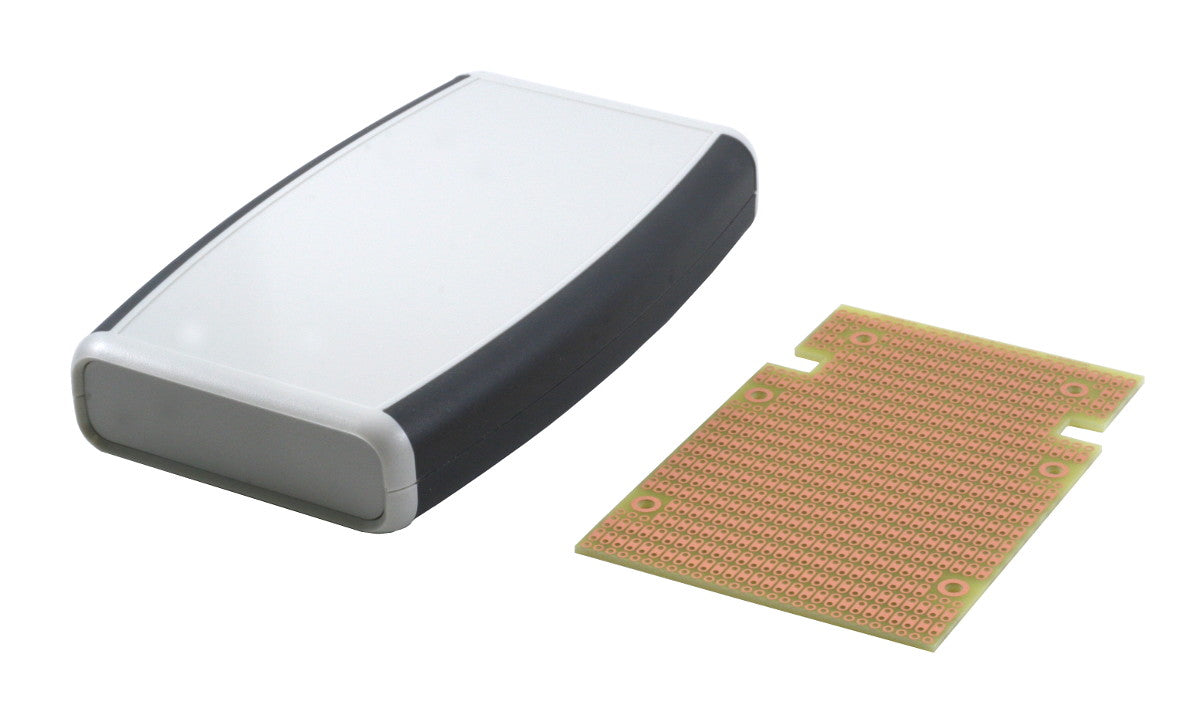

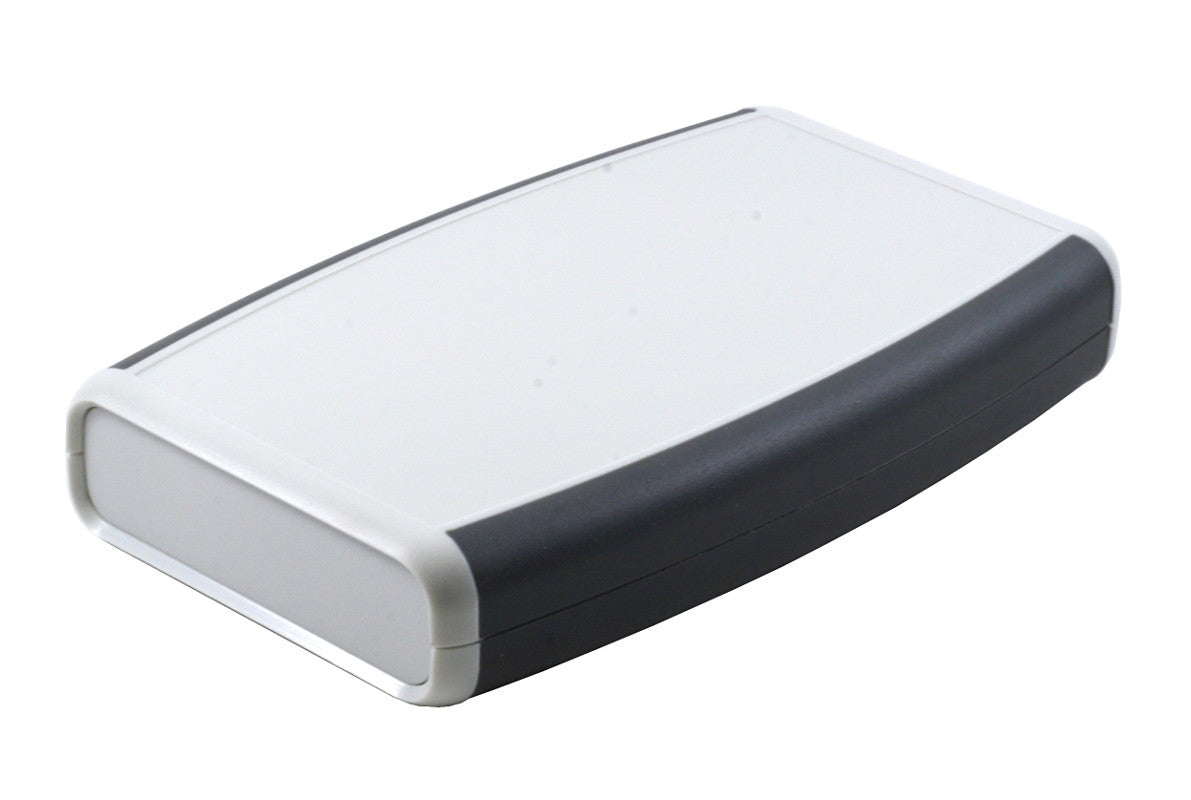

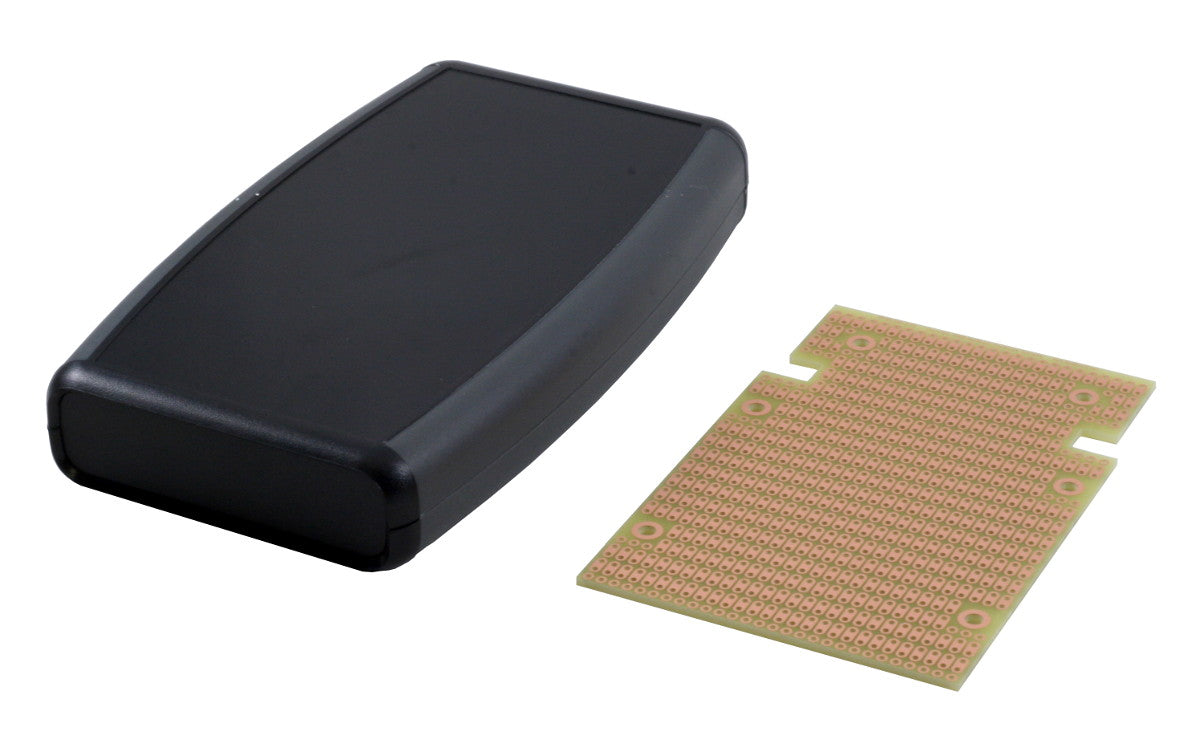

This kit is a Hammond 1553DBKBAT soft-side plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB The soft-sided ergonomic hand-held electronic case has a battery compartment for 2xAA or 1x9V (battery clips included) It has a long life "three snap" battery door It has 1 removable end panel and a recessed top for membrane overlay or keypad Lap joint construction provides protection against dust accumulation and splashing water.

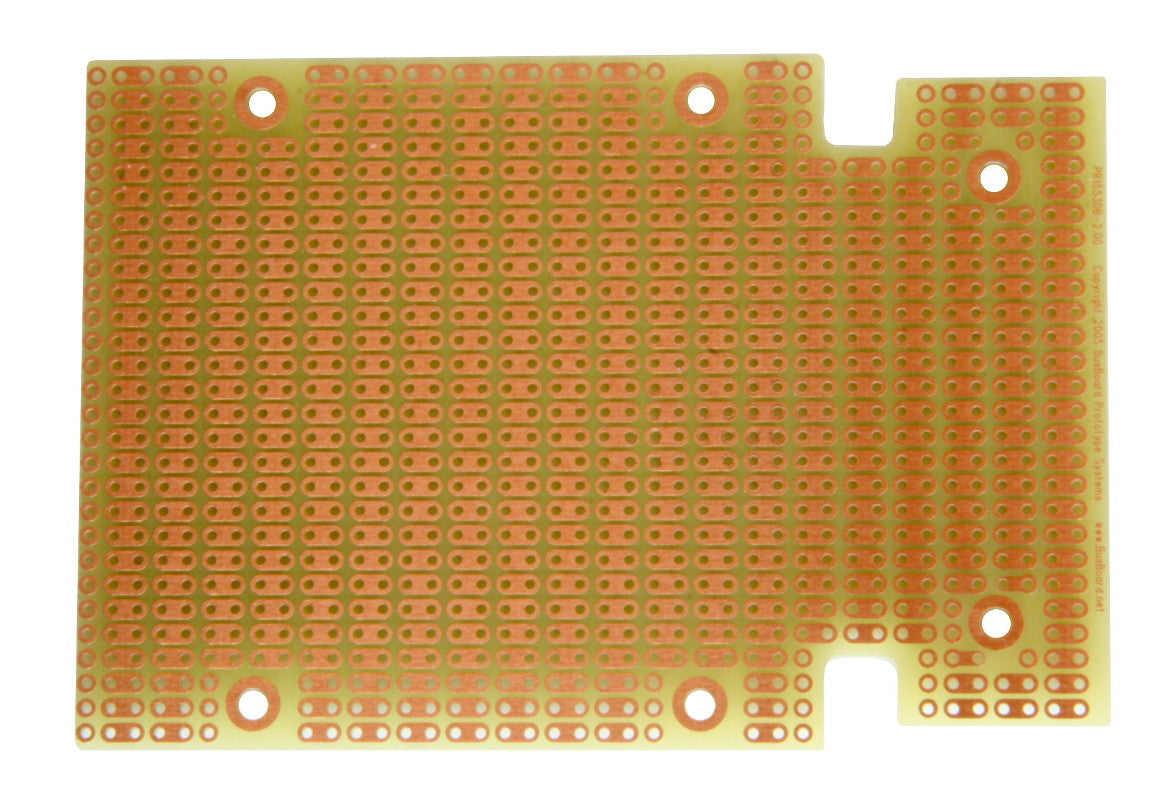

The PR1553DBAT prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.

Features and Benefits:

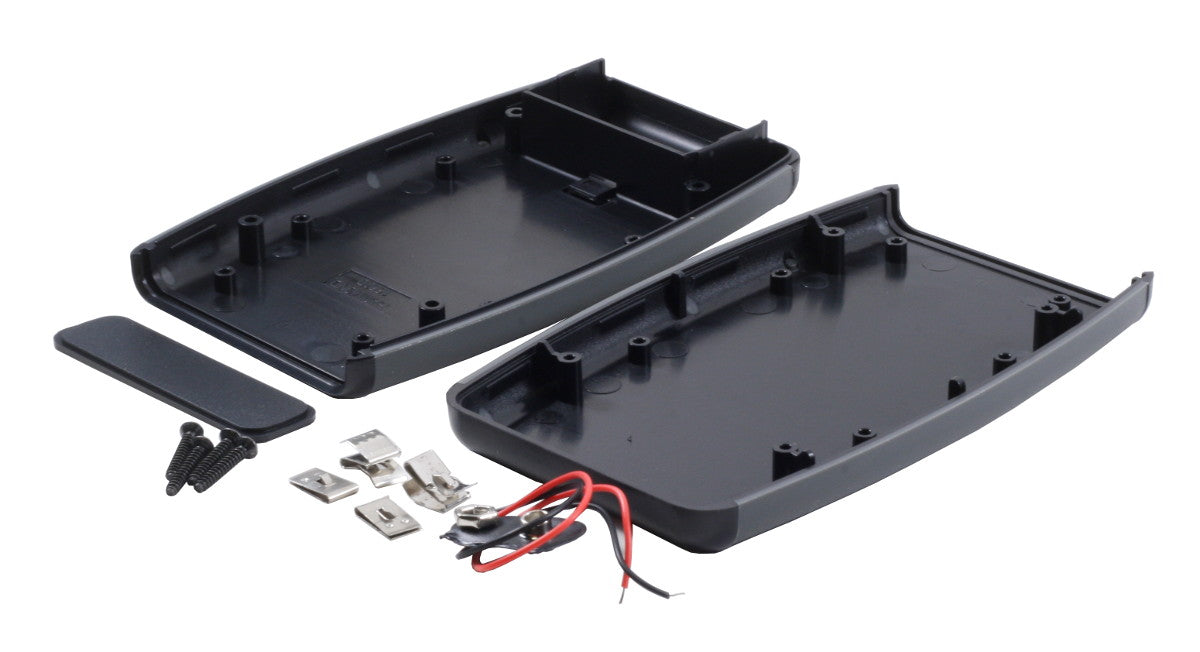

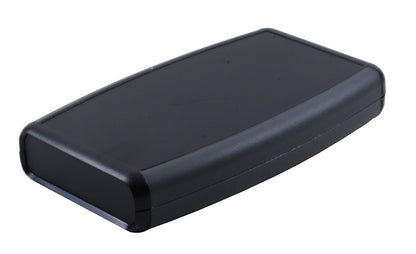

•Box is black ABS plastic with soft gray side panels, secured with self tapping screws (included).

•Battery compartment for 2xAA or 1x9V (battery clips included).

•Box Size 5.8 x 3.5 x 1.0 inches (147 x 89 x 26 mm).

•Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

•0.042" holes are drilled on 0.1" (2.54mm) centers. 6 mounting holes. Screws provided..

•PCB Size 2.850 x 4.175 in. (72 x 106mm).

Specifications:
