KIT-1553B Hammond 1553B Soft-Sided Plastic Enclosure with PR1553B PCB

KIT-1553B Hammond 1553B Soft-Sided Plastic Enclosure with PR1553B PCB

SKU: KIT-1553B-BK Download PDF

Now $14.65
BEFORE   Now $14.65
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

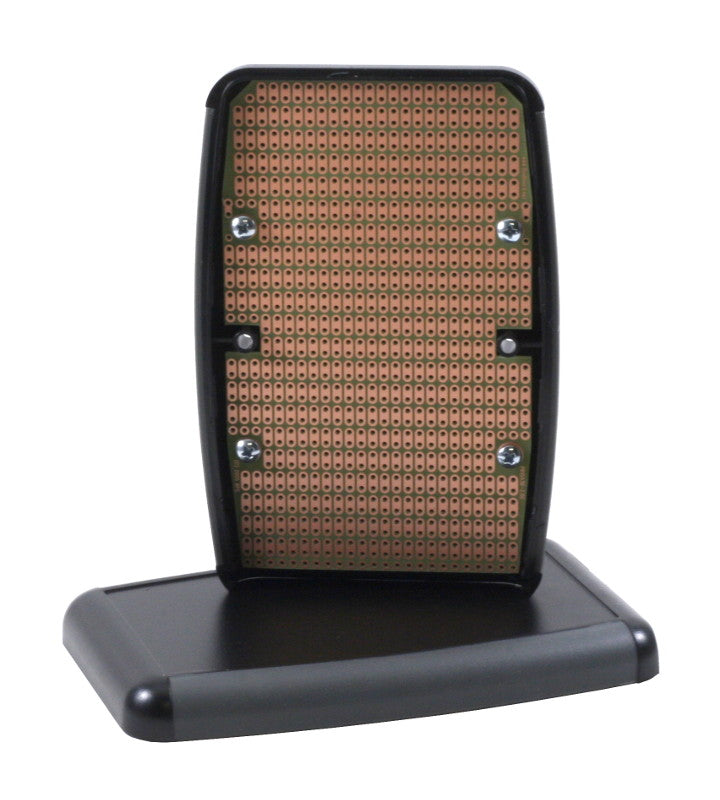

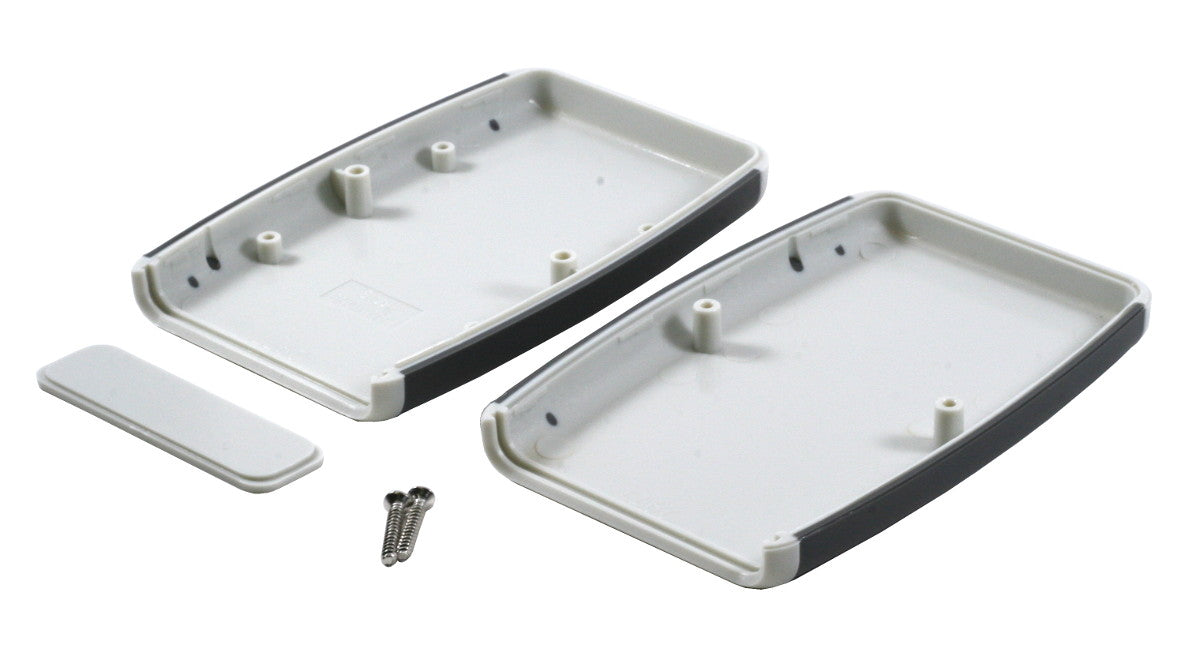

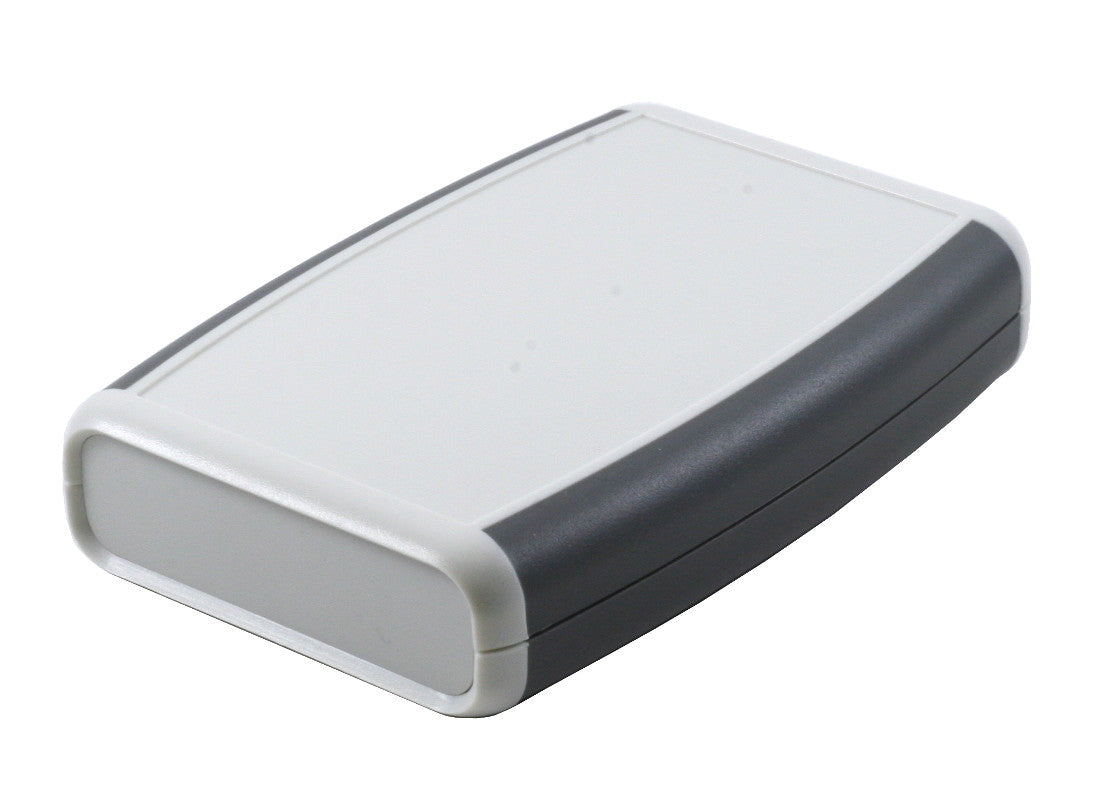

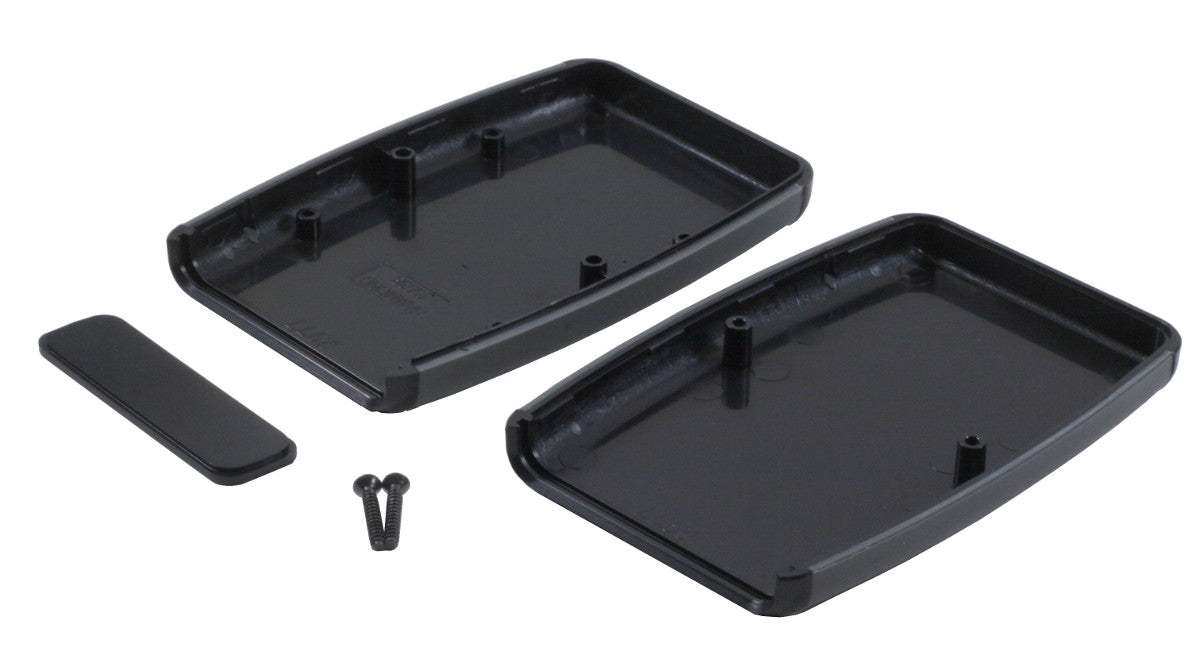

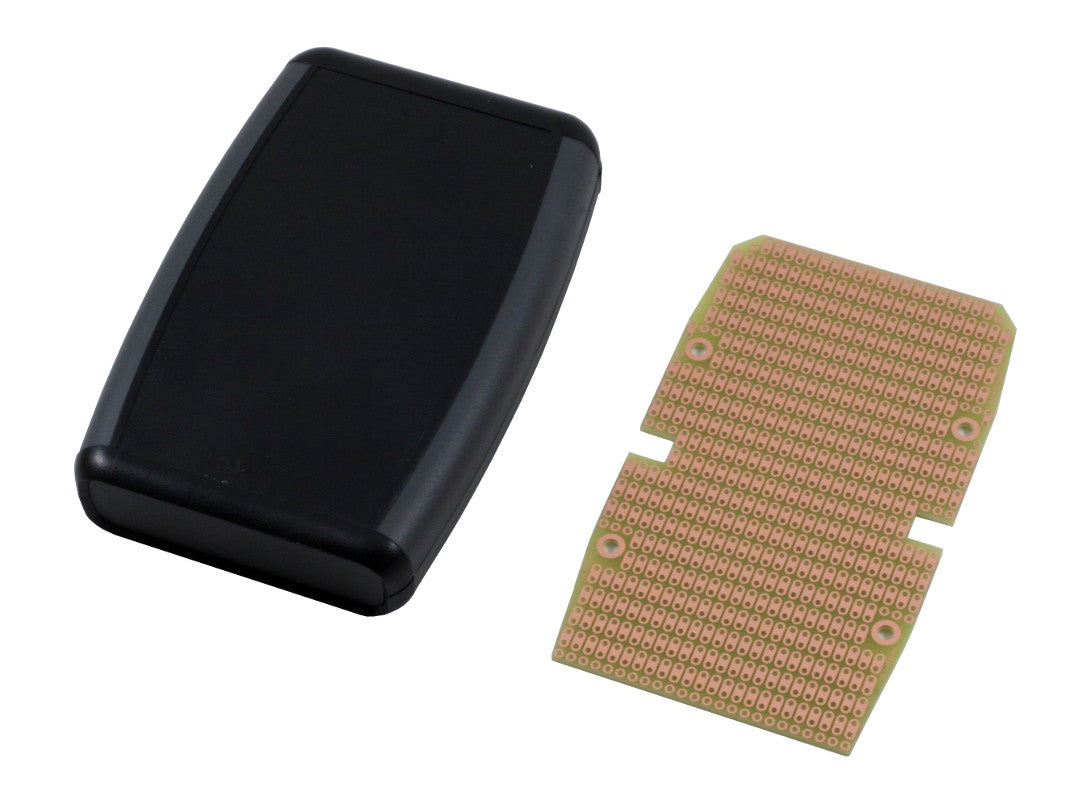

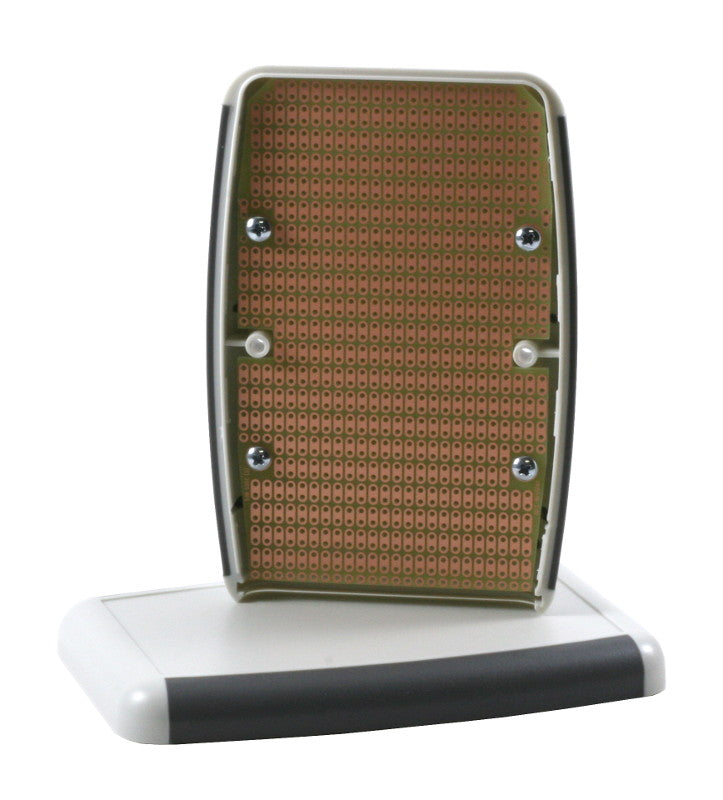

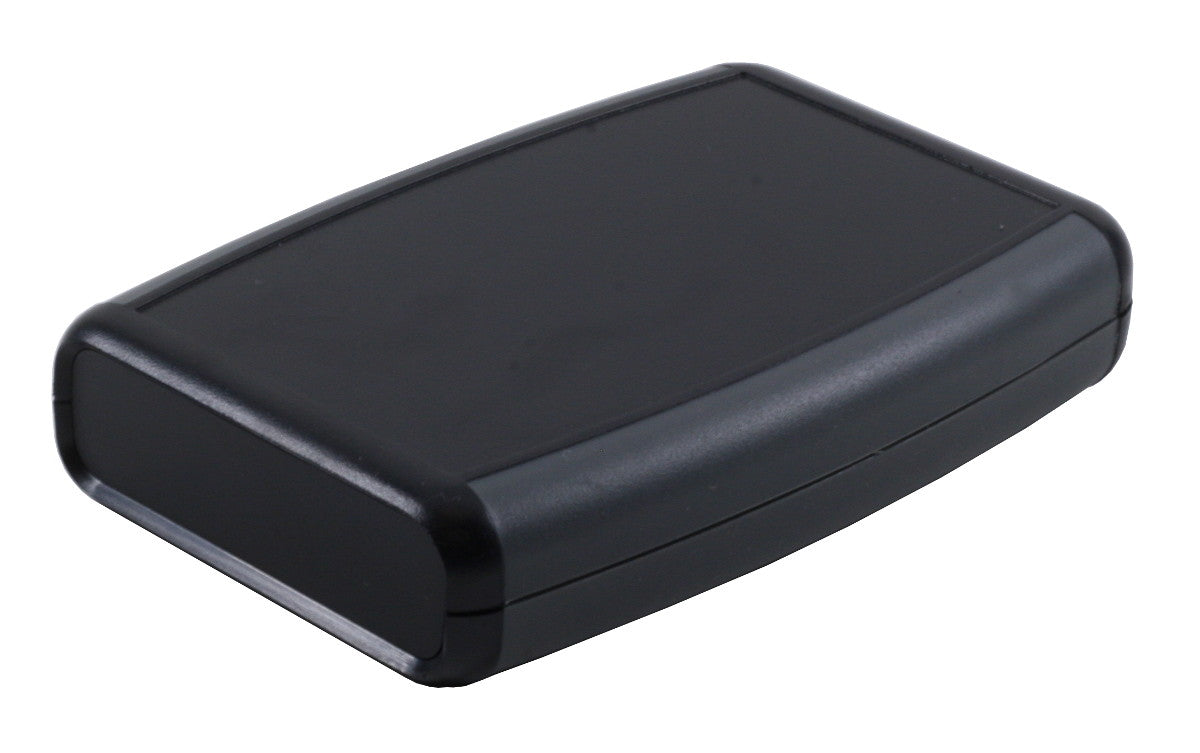

This kit is a Hammond 1553B soft-side plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB The soft-sided ergonomic hand-held electronic case has built-in PCB standoffs It has 1 removable end panel and a recessed top for membrane overlay or keypad Lap joint construction provides protection against dust accumulation and splashing water The PR1553B prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.

Features and Benefits:

    •Box is ABS plastic with soft side panels, secured with self tapping screws (included)..

    •Box Size 4.6 x 3.1 x 1.0 inches (117 x 79 x 24mm).

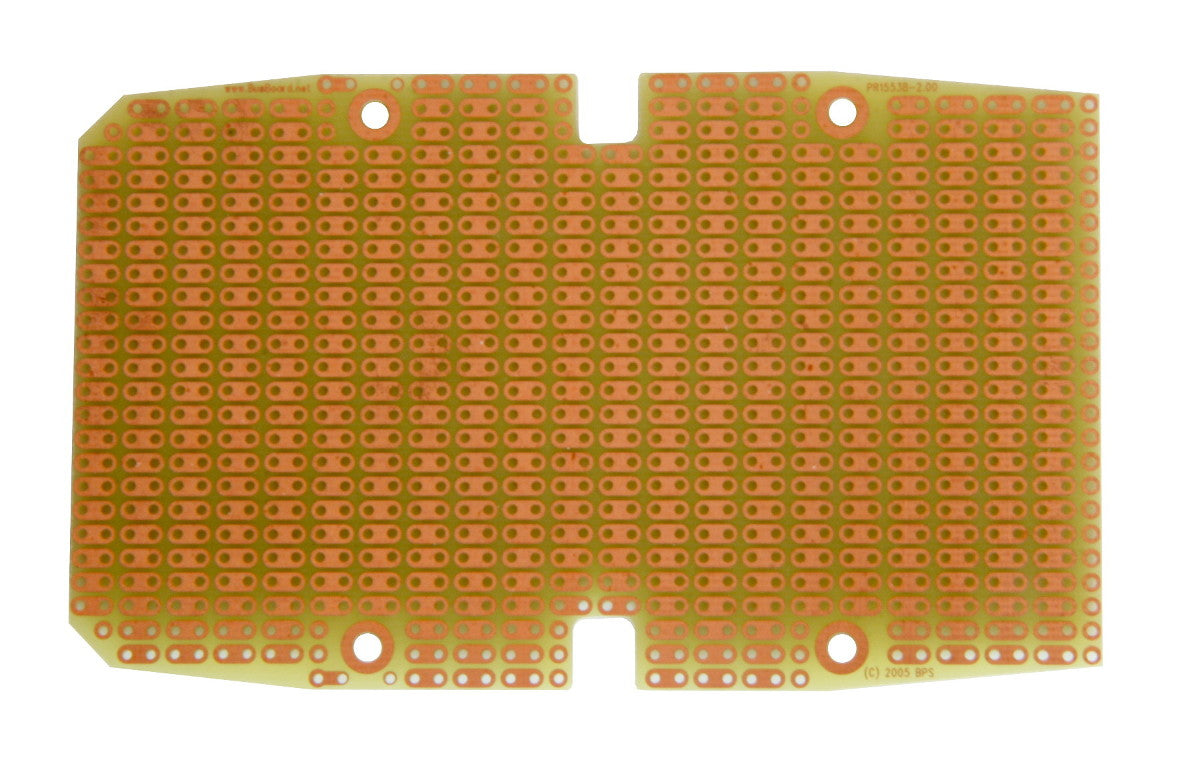

    •Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering..

    •Lead free and RoHS compatible..

    •0.042" holes are drilled on 0.1" (2.54mm) centers..

    •4 mounting holes. Screws provided..

    •PCB Size 2.80 x 4.27 in (71.1 x 108.5 mm).

Specifications:

 Box Size: 4.6 x 3.1 x 1.0 inches (117 x 79 x 24mm)
 PCB Size: 2.80 x 4.27 in (71.1 x 108.5 mm)
 Material: ABS plastic and FR4 glass-epoxy circuit board
 Copper Weight: 1oz/ft2
 Holes: 0.042" holes drilled on 0.1" (2.54mm) centers
 Mounting Holes: 4
 Screws: Included
