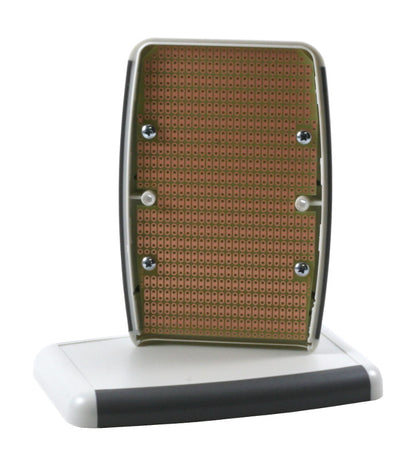

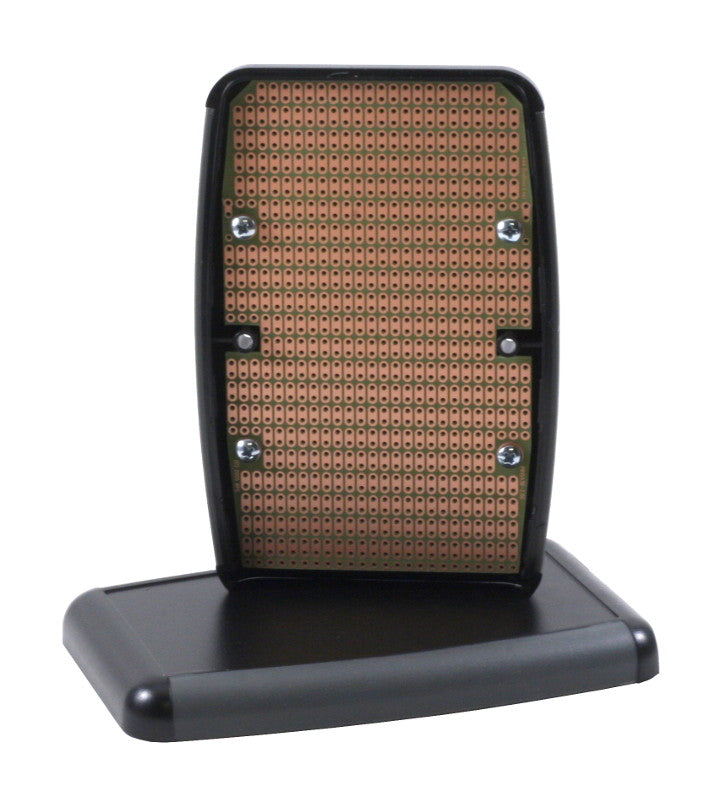

KIT-1553B 1553B Soft Sided Plastic Enclosure with PR1553B PCB

Description:

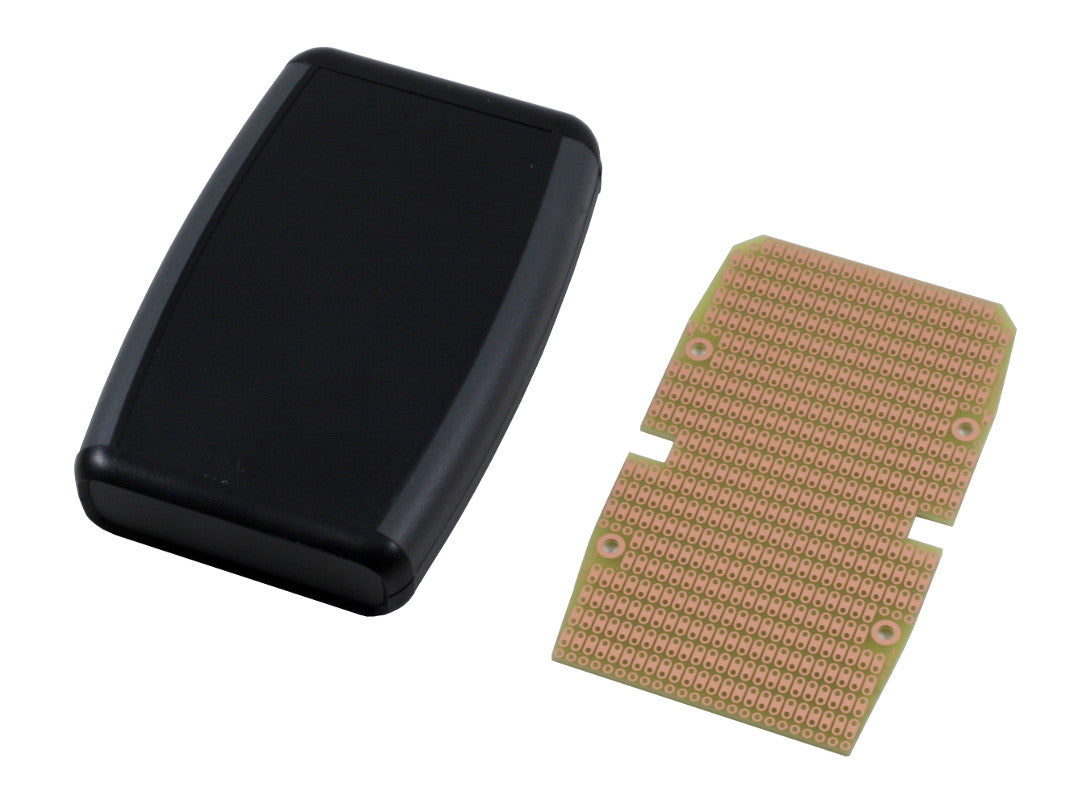

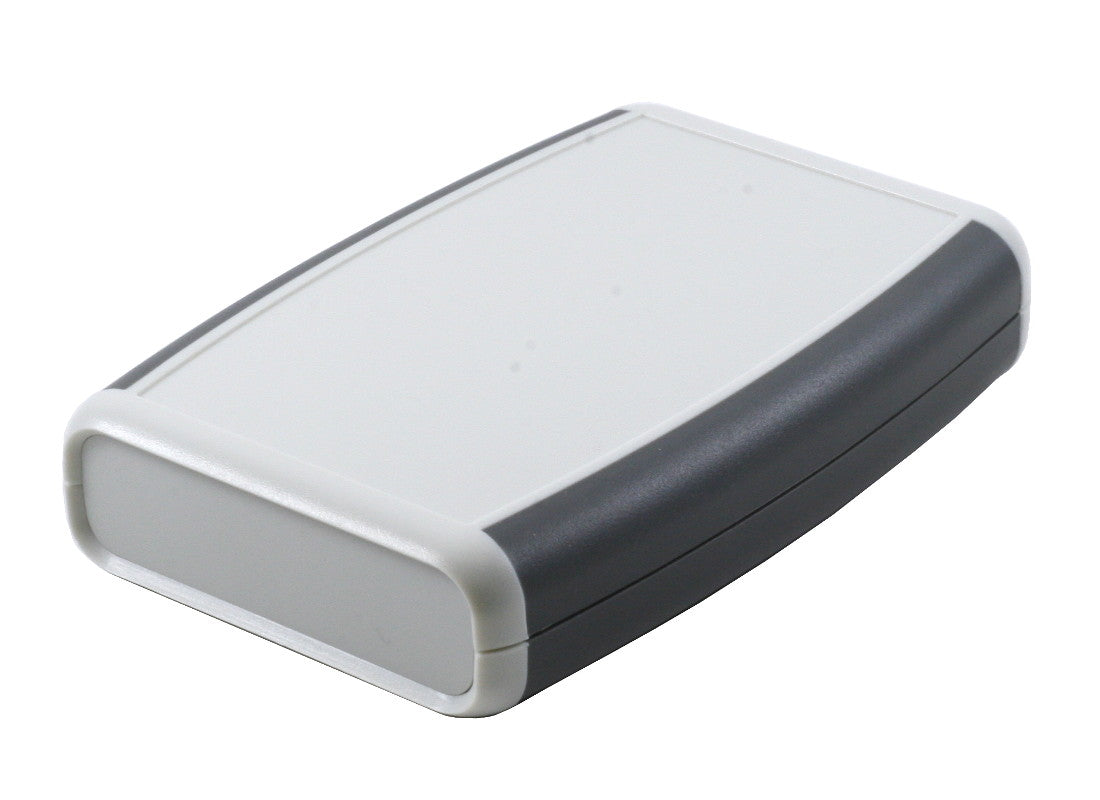

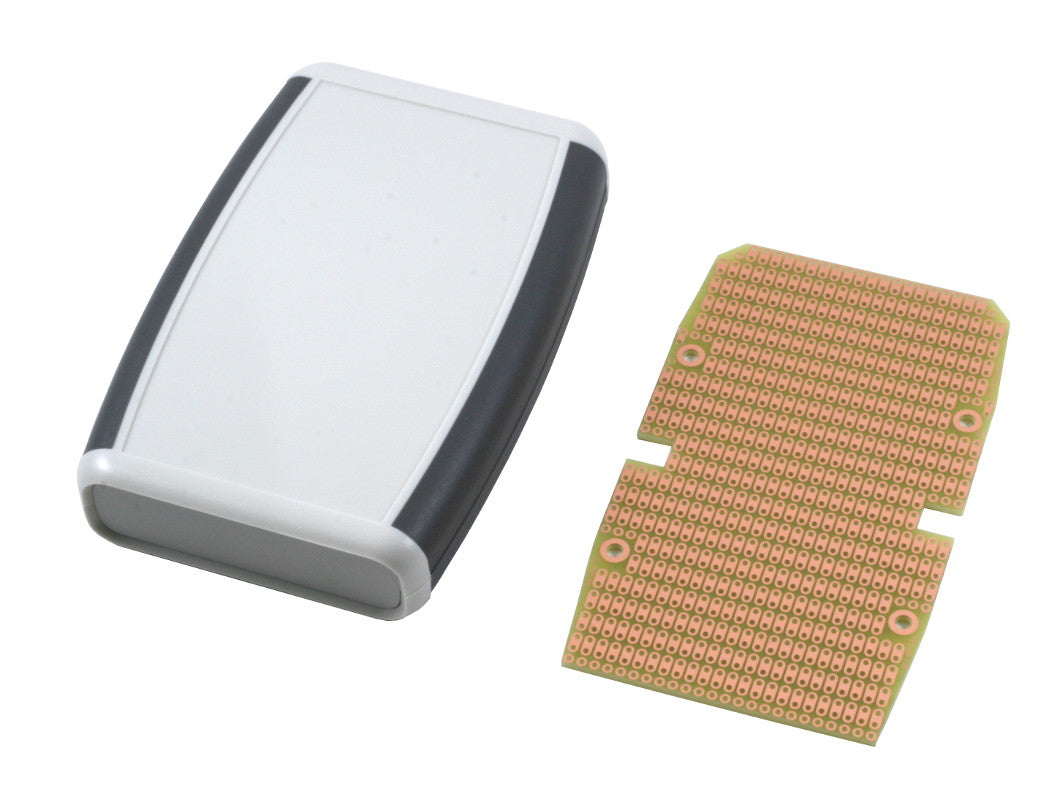

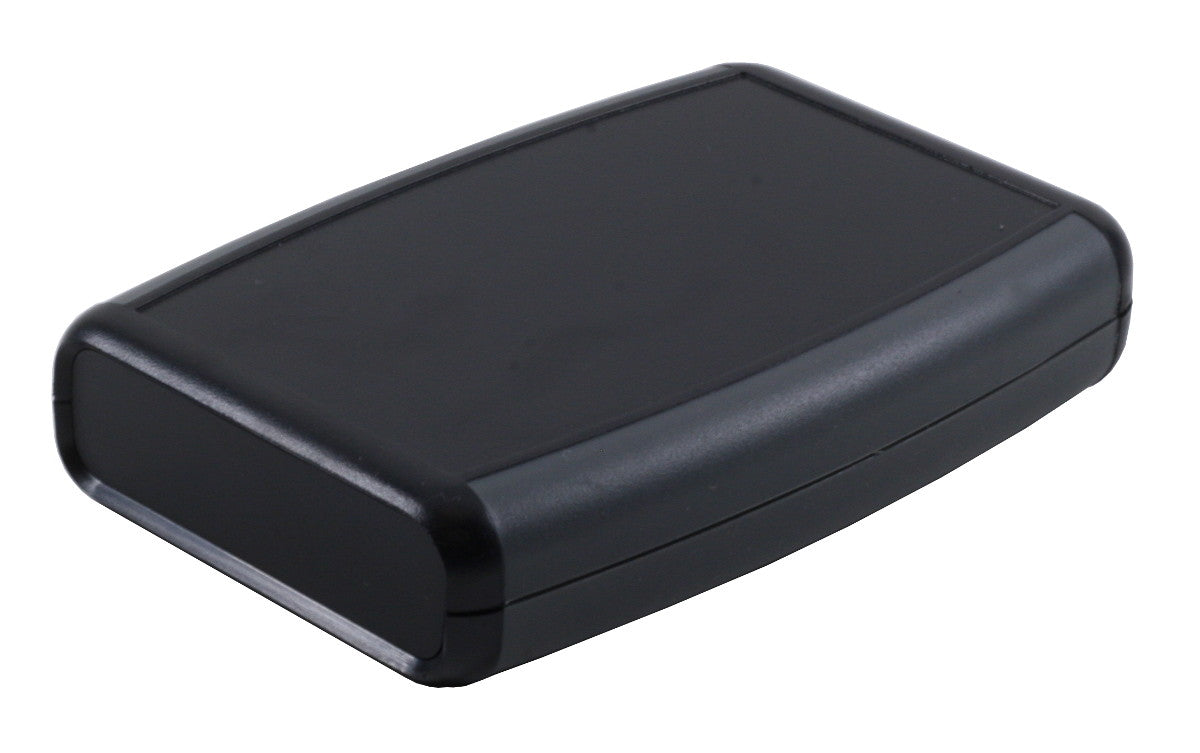

This kit is a Hammond 1553B soft-side plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB The soft-sided ergonomic hand-held electronic case has built-in PCB standoffs It has 1 removable end panel and a recessed top for membrane overlay or keypad Lap joint construction provides protection against dust accumulation and splashing water The PR1553B prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.

Features and Benefits:

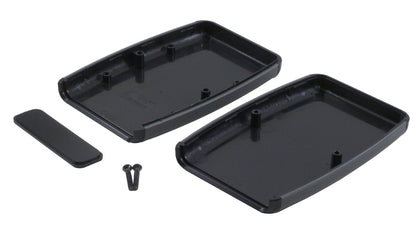

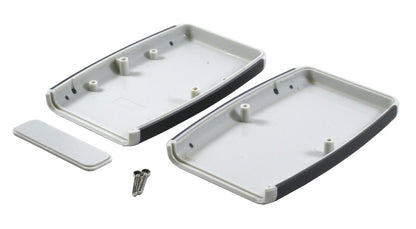

•Box is ABS plastic with soft side panels, secured with self tapping screws (included)..

•Box Size 4.6 x 3.1 x 1.0 inches (117 x 79 x 24mm).

•Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible..

•0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes. Screws provided..

•PCB Size 2.80 x 4.27 in (71.1 x 108.5 mm).
